Transmission drive bridge for EV 687 loader, Kharkiv region.

Position No.
Catalog No.
Name
Pieces

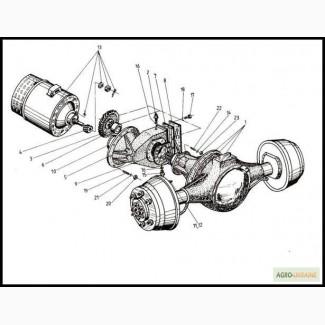

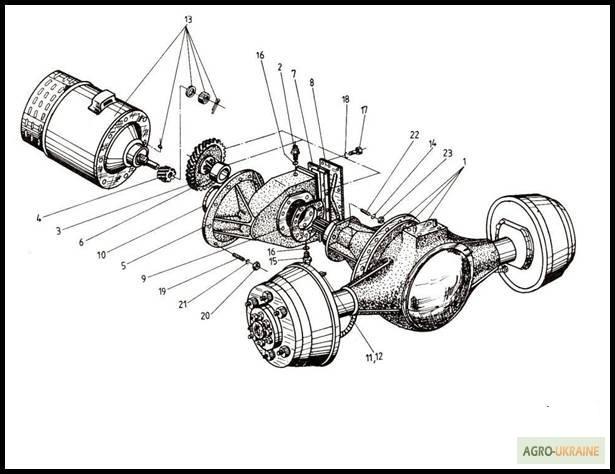

TRANSMISSION
Leading bridge

129363/284770 6187 00.00.00
Leading bridge
1
1
185757 6975.1 00.00.00
Servobrake right F190
1
2
185713 6976.1 00.00.00
Servobrake left F190
1
3
155052 6187 06.00.00
Main transmission
1
4
263943 6187 02.00.00
Beam with sleeves (complete)
1
5
284774 6187 03.00.00
Hub with brake drum
2
6
284773 6187 04.00.00
Brake cable (assembled)
1
7
222997 BDS 9954-78
Sealing A62x95x10x14-1
2
8
128252/128253 6191 06.00.00
Vent (assembled)
1
9
263974 6187 00.00.01
Poluval
2
10
168102 6187 00.00.03
Bolt
12
11
284771 6187 00.00.04
Locking plate
4
12
126686 9150 00.00.03
Sealing
2
13
255499 6141 00.00.04
Thrust washer
2
14
113652 6159 00.00.02
Bushing
16(//tractor-service.com)
16
284772 6815 00.00.01
Sealing
1
17
118165/181166 7015 00.00.22
Nut M14x1.5-6H
10
18
283842 6166 00.00.06
Nut
2
19
283924 6166 00.00.07
Protective washer
2
20
216230 BDS 3609-73
Ring II B20x26
1
21
212057/216015 BDS 1269-73/6
Nut M10x1.25-6H
28
22
212169/215584 BDS 1232-72/6,6
Bolt I M10x25-6g
12
24
208154/209866 BDS 833-82
Washer 2 10H
28
25
215730/215577 BDS 2527-71/5,6
Stopper II con.1/2"
1
26
215728/214947 DIN 74361
Spherical spring washer C 14.5
10
27
206926 GOST 333-79
Bearing 2007109
2
28
206343 GOST 333-79
Bearing 7510 A
2
29
212625 BDS 1359-75/6,6
Screw III M10x20-8g
4
30
263939 6187 03.00.01
Brake drum
2
31
263942 6187 03.00.03
Pin
16
32
168099 6187 03.00.04
Hub
2
33
263942 6187 03.00.05
Bolt
10
