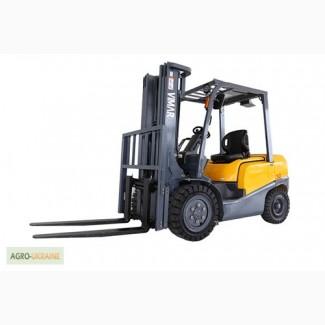

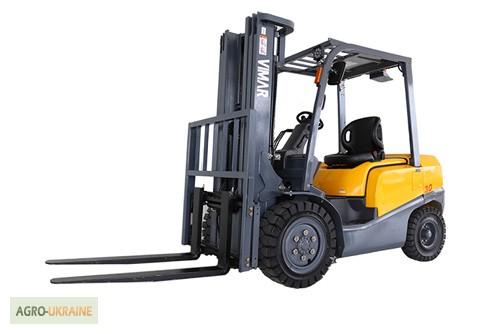

Pogruzchik diesel VIMAR FD-30 (g/p=3t; H=3m), Japanese quality, Kharkiv region.

General manufacturer Vimar
Model FD30
Type Power diesel
automatic gearbox
Presentation Nominal load capacity kg 3000
Nominal load center mm 500
Maximum. Lifting height mm 3000
Free lifting height mm H4 135
speed of movement loaded km / h 18
Unloaded km / h 19.5
Lifting speed loaded mm / sec 450,,,,
Unloaded mm / sec 470
Lowering speed loaded mm / sec 450
Unloaded mm / sec 450
Dimensions Minimum Turing radius mm r 2400
Min. Right angle Stacking spacing Width mm RASA 2880
Full length mm L1 3730
overall width mm B3 1225
The height of the lowered mast mm 2075
Mast Extended Height mm H1 4250
Overhead Guard Height mm H2 2090(//tractor-service.com)
Plug Size L * W * T mm L * 125 1070 * 45
Mast tilt angle F / R degree 6/12
Ground clearance mm 140
wheel base mm Y 1700
step Front mm 1000
rear mm 970
front overhang mm X 480
Maintenance Weight kg 4310
engine Isuzu C240 model
Nominal power kW / rpm 37/2650
Nominal torque nm / min 148/1800
displacement cubic cm 2540
Tires front Tire 28 * 9-15-12PR
Rear tire size 6.50-10-10PR

ISUZU C240 engine - 100% Japan
Power steering, hydraulic distributor, hydraulic pumps - Japan
Transmission, axles, optics - licensed by TSM (Japan)
Loader - licensed by TSM (Japan)

The delivery time is 5 days
Terms of payment - 100% advance payment
