Electronic honey drive, Kirovohrad region.

Using a set of equipment for the modernization of honey combs will allow you to modernize a manual honey comb by installing an electric drive.
This will significantly facilitate the work of pumping honey, both at home and in the field.
The equipment is equally suitable for the modernization of honey combs with radial and chordal arrangement of frames.

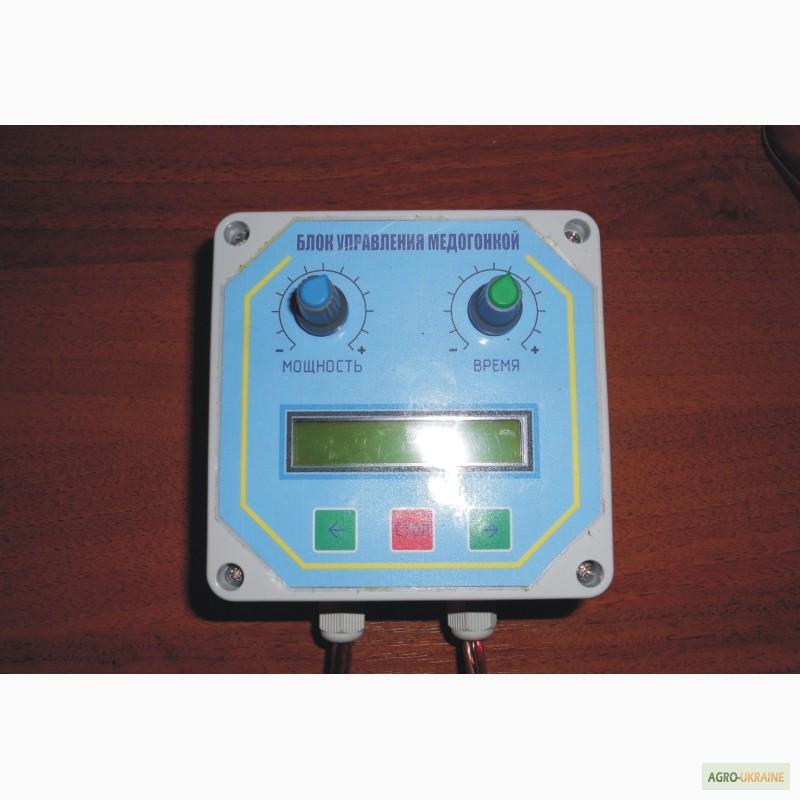

A special microprocessor control block is used to control the honey selection process, which allows:
- adjust the number of frame revolutions;
- choose the direction of frame rotation;
- establish work hourshoney race;
- monitor the state of the battery when working in field conditions.
All manipulations with the control unit are accompanied by sound signals.
The block is powered from the car battery or from the mains (charger/power supply unit).

Video: https://www.youtube.com/watch?v=I6Q85Sg2cko(//tractor-service.com)

Complete set (to order):
1. Control unit (sealed, IP68).
2. Driven pulley (diam. 210 mm).
3. Drive pulley (diam. 50 mm)
4. Adapter for the shaft of the honey extractor.
5. Engine (G-108).
6. V-belt.
7. Instructions for use.
Any DC motors with a voltage of 12 to 24 V and a maximum power of up to 300 W can be used as a motor, as well as generators G-108, G-22, etc.

Warranty, technical support. Installation.
The price is indicated for a set of equipment, depending on the composition and cost of the equipment at the time of the order.
