Sell Hydromotor (Parker 3707310) F10, F11, Kyiv

Hydromotor Horsch 00380127 (Parker 3707310) for fan drive for saleсовенных комплексов Horsch
Hydraulic motor Horsch 00380127 (Parker 3707310) for the drive of the fan of Horsch sowing complexes

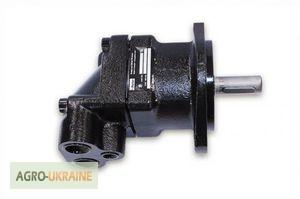

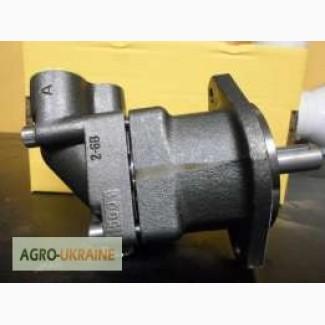

Hydraulic motor Horsch 00380127 (Parker 3707310)
"Hydravlyk Line" LLC is the official representative of Parker Hannifin on the territory of Ukraine.
The company offers the best technical solutions in the field of Parker hydraulics.
Hydromotors Horsch Horsch 3707310 turbine drive, fan Horsch 00380127
Warranty 12 months
Hydromotors Horsch Horsch 3707310 turbine drive, fan Horsch 00380127
Hydromotors Horsch Horsch 3707310 turbine drive, fan Horsch 00380127
Hydromotors Horsch Horsch 3707310 turbine drive, fan Horsch 00380127
Hydromotors Horsch Horsch 3707310 turbine drive, fan Horsch 00380127
Hydromotors Horsch Horsch 3707310 drive turbine, fan Horsch 00380127
Horsch hydraulic motors Horsch 3707310 turbine drive, fan Horsch 00380127(//tractor-service.com)
Description of Parker 3707310 hydraulic motors F11-010-HU-CV-K-000-000-0
Devices of the F11 and F12 series are hydraulic motors of increased power with a constant working volume and a broken axis. They can be used for various applications both in open and closed circuits.
• Devices of the F11 series are supplied with the following body sizes and in the following versions: - F11-5, -10, -12, -14, -19 and -150 with CETOP mounting flange and shaft end - F11-10, -12 and -14 with ISO flange and shaft - F11-10, -12, -14, -19, -150 and -250 s flange and shaft SAE
• The F12 series has mounting flange and shaft end configurations in accordance with current ISO and SAE standards. A version with a compact pumping unit is also available.
• Thanks to the unique spherical design of the piston, F11 and F12 hydraulic motors can be used at unusually high shaft rotation frequencies. Working pressures up to 480 bar provide high output power.
• The angle of 40° between the shaft and the cylinder sleeve ensures a very compact and light design of the hydraulic motor.
• A multilayer piston ring provides important advantages, for example, small internal leakage and resistance to thermal shocks.
• F11 and F12 hydraulic motors provide very high torque at start-up, as well as at low rotation frequencies.
• The distribution gear of a unique design ensures the synchronization of the shaft and the cylinder sleeve, as a result of which the F11 and F12 devices are resistant to high accelerations and torsional vibrations.
• Durable roller bearings allow significant external axial and radial loads on the shaft.
• Devices of the F11 and F12 series have a simple and efficient design with very few moving parts, which makes these hydraulic motors very reliable.
• The unique connection of the piston, the distribution gear and the location of the bearing, as well as the limited number of parts make an additional contribution to the reliability of the design, ensuring a long service life and the highest reliability http://www.ukrboard.com.ua
