Extruder grain feed screw КЕШ-3 (380 V, 45 kg/hour, 6.5 kW), Kyiv

KESH-3 feed screw extruder (380 V)

In agriculture, the main task of animal husbandry is to preserve the healthy condition of animals and increase their population, and this can only be done thanks to timely and correct feeding.
Feeds from grain crops usually include a large amount of starch, which complicates their digestibility and increases the period of digestion in the stomach. Animals eat less food, and their productivity decreases. There is a need to improve the quality of feed, improve its characteristics and digestibility.

Therefore, there are different devices and equipment, among which we can highlight the KESH-3 feed extruder, thanks to which animals grow faster, the process of digesting food becomes easier, and useful substances are absorbed faster.

The fodder extruder is used for the preparation of extruded fodder by processing the grain of cereal crops. Equipped with a single-phase electric motor with a capacitor. The grain is fed through the loading hopper with the help of a feeding auger. V-belt transmission is used to actuate the screw part, which will allow to maintain the output power of the electric motor at the time of its operation. For the convenience of the equipment control process, the engine start and stop buttons are installed. The sturdy metal base will prevent damage to the device.

This equipment deforms the grain under high pressure, turning it into a homogeneous mass and at the same time removing excess starch from it. He prepares grain for feeding pigs,cattle and poultry. The process of extruding feed consists of short-term heat treatment with further pressing under a pressure of 20 atmospheres. At the same time, the grain is processed into a homogeneous mass, all harmful substances are separated and destroyed, and all useful and valuable ones retain their integrity and are preserved. In the process of working in the grains, the transformation of fiber, dry gelatinization of starch occurs, and under the influence of high pressure (20-30 atm) and temperature (130-160 gr.), dangerous microflora (bacteria, molds, fungi) die.

The advantage of working with such equipment is that it is possible to load not only good and fresh grain into it, but also spoiled, with bugs, sprouted, steamed and other damage. In the process of processing, all these defects are removed, and the result is complete and useful feed.

The extruder is delivered immediately ready for work, it is only necessary to install it at the workplace and connect the electricity.
It is very easy to use, there is no need to pre-moisten the raw material, and working with it brings pleasure not only to the farmer, but also to all domestic animal husbandry.

By buyingsuch an extruder- You acquire a reliable and faithful friend, ready to work without fail for the benefit of the entire household.

Features of the KESH-3 feed extruder:
- The intermediate chamber of the loading part allows to ensure the direct supply of grain for further processing in the working chamber.
- The start of the electric engine and its temporary stop is carried out thanks to the built-in control buttons on the equipment body.(//tractor-service.com)
- The large-capacity loading hopper allows you to store a large amount of raw materials without the need for constant additions for further processing.
- The mechanism for regulating the supply of raw materials to the intermediate working chamber allows to prevent blocking of the working chamber during grain processing.
- Extruded feed exits through a special die made of high-strength metal, which is easily dismantled for cleaning the working chamber after work.

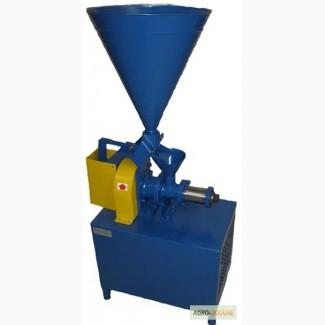

The device consists of an electric motor, equipment, a dosing mechanism and an extruder part connected to the electric motor by means of a Klimer transmission.
The extruder part consists of a loading hopper, a loading chamber, a pressing chamber, in which a system of feeding, intermediate and pressing screws is located.
The pressing chamber ends with a die, in which maximum compression occurs and through which the final extruded product comes out.

Technical characteristics:

- Productivity (depending on the type and size of grain): 20-40 kg per hour
- Nominal voltage of a single-phase network: 220 V.
- Diameter of the extruded product (leaves through the die in a continuous flow): 23 mm
- Power consumption: 3.7 kW
- Weight: 83 kg
- Overall dimensions: 1250x400x580 mm
- Delivery: New Post.
- Warranty: 12 months
- Manufacturer: PJSC "Electromotor" (Poltava)
- Country of manufacture: Ukraine
