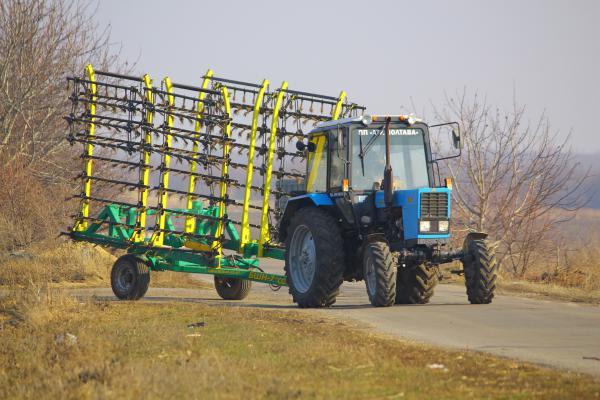

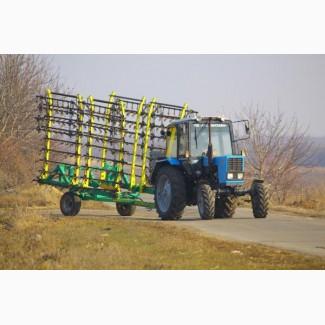

BSHN-7 tooth harrow Solomiya, Dnepropetrovsk region.

Brush tooth harrow BSHN-7 Straw is intended for loosening the soil, leveling the field and loosening the surface for the purpose of preserving moisture in the soil, crushing clods, destroying weed seedlings on crops of grain and industrial crops, as well as for combating the seedlings of overwintering weeds in the autumn period.
The harrow is used to destroy the crust on crops of winter crops in early spring and destroy annual weeds in steam fields.
The central frame of the harrow is made of a strong steel pipe. The tool has a long drawbar and a reliable frame. Folding hinges are reliable and durable. The powerful cylinder provides sufficient force for lifting and assembling the harrow in the conditions of the remaining harvest residues.
This BSHN-7 straw harrow has 8 sections connected to each other by chain suspensions. The harrow teeth are made of high-quality profiled material with a special angle of attack, which ensures high-quality soil cultivation.
It is aggregated with tractors of class 1.4.

TECHNICAL DATA BSHN-7 trailing tooth harrow Solomiya

1. Type of semi-trailer machine
2. Productivity during one time of the main time ha/h 5.6-7
3. Design width of capture, not less than m 7
4. Working speed km/h 8-10(//tractor-service.com)
5. The processing depth is not less than 8 cm.
6. Overall dimensions
in working position:
width
in transport position:
width mm

7270

2800±40
7. Number ofwheels pcs. 2
8. Number of sections of working bodies pcs. 8
9. The number of harrow teeth pcs. 384
