Automotive strain gauges for static weighing, Dnepropetrovsk region.

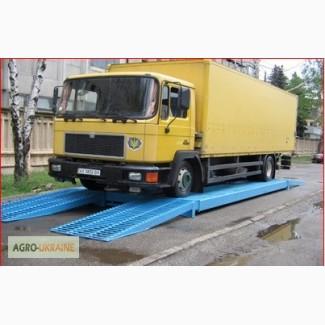

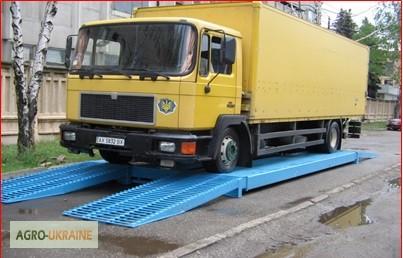

AUTOMOBILE SCALES FOR STATIC WEIGHING

Advantages and features of scales

Foundation

Installation of scales does not require foundation work. The design of the load-receiving device of the scales allows installation on any solid foundation.

Measurement accuracy

Special supports of weight-measuring sensors ensure the stability of displayed scales in case of possible deformation and subsidence of the scale structure, which ensures high measurement accuracy (measurement error - 0.02-0.03%).

Ease of installation

The mobility of the scale design allows you to assemble it in 2-3 hours if a crane is available.

If it is necessary to transfer the scales to the second place, no capital costs are required.

Ease of use

The undercarriage of the load-receiving device of the scales is covered with embossed metal 6 mm thick, which provides protection against skiddingwheels of the car.

Scale settings

The scales are adjusted in kilogram mode (d = 1 kg).

Calibration of scales can be performed by the Customer independently if there are weighing instruments and in the presence of the State Trustee.

Software

Scales provide the possibility of computer accounting of weighing results, as well as output of information to a computer display and/or a printer.

Software modules supplied withscales are integrated with the Customer's software (1C Accounting). It is possible to develop new software for the client's needs.

High-quality and fast warranty and post-warranty service.

Complete set of scales

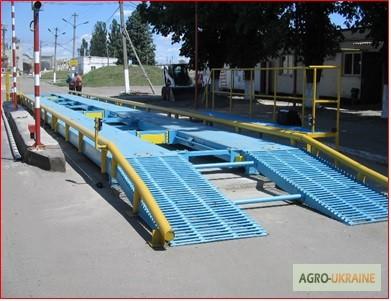

Scales consist of three load-receiving platforms and a weighing processor.

Platforms rest on strain gauges installed on support structures. Weighing processor with the help of a measuring processor is connected to the sensors with a cable and is installed in a room near a window facing the loading platform and the access road, to ensure the operator's visual control of the vehicle being weighed.

A digital display is placed on the front panel of the weight processor housing, which displays the weighing results and test results messages.

Functions of electronic equipment

- Display of weighing results;

- Diagnostics of each sensor separately using a multi-channel system;

- Control of the correctness of the main components of the equipment;

-Output on the display of the control results and the necessary tips for setting the weighing mode and reporting the weighing results;

- Output of weighing results on PC;

- Ability to work in dosing mode;

- The distance of the scales from the weighing processor is up to 500 m;

- Correction of the temperature error of the strain gauges of the platform;

- Self-diagnosis of the electronics of scales, with the output of information about malfunctions on the display of the scale processor;

- Ability to connect size sensors;

- The possibility of connecting two devices to the weight processor at the same time: a computer and a remote duplicating panel;

- The possibility of calibration using the vesoprocessor keyboard (individual adjustment of each platform, the edge of the platform and the sensor);

- Possibility of electric power supply of the weighing processor from the battery with a voltage of 12÷24 V;

- The sensors pass the entrance inspection at the firm's stands;

the material of the strain gauge body is stainless steel.

Delivery set:

Weighing equipment:

ü Cargo receiving platform 3 pcs;

ü Ramp 2 pcs;

ü Weighing strain gauge 8 pcs;

ü Assembly unit of the strain gauge 8 k-t;

ü Vesoprocessor VP-89.02 1 pc;

ü Measuring processor PI-9 2 pcs;

ü Connecting cable 1 pc;

ü Connecting cable 1 pc;

ü PC communication cable 1 pc;

Technical documentation: 1 volume;

The software includes:

ü Transmission of information on vehicle weighing (gross and tare);

ü Formation of reporting documents;

ü Seal of freight invoices;
(//tractor-service.com)
ü Viewing the state of weighing;

ü Search for information about previous weighings;

ü Ability to create data viewing tables;

ü Keeping a list of vehicles that have been weighed, with the indication of car numbers, F.I.O. drivers, depots, etc.;

ü Keeping a list of goods with the indication of names and codes;

ü Data filtering according to the specified criteria;

ü Working with different types of database servers;

ü Password system.

Services:

ü Equipment delivery;

ü Installation of scales;

ü Start-up and adjustment works;

ü Participation in the primary verification of scales;

ü Training of service personnel to work on scales.

NGO "PromInvestService" LLC offers the following types of work:

ü Development;

ü Production of metal structures and electronics;

ü Installation;

ü Commissioning;

ü Warranty and post-warranty service;

Repair ofweighing equipment;

WAGON SCALE TENZOMETRICHESKY BESFUNDAMENTNYE

FOR WEIGHING OF FOUR-AXLE RAILWAY WAGONS IN CONNECTED AND DISCONNECTED STATIC STATE

Advantages and features of scales

Foundation

Baseless scales are installed on standard steel sleepers.

Measurement accuracy

The load-receiving device of the scales, consisting of two platforms, ensures the weighing of wagons with a base of 6.5 to 11.5 m. The self-orienting supports of the sensors ensure the stability of the displayed scales and high accuracy of measurements.

Ease of installation

Installation of scales is performed in 1 - 2 working shifts. If it is necessary to transfer the scales to the second place, no capital costs are required.

Scale settings

The scales are adjusted in kilogram mode (d=1 kg). Calibration of scales can be performed by the Customer independently if there are weight verification tools and in the presence of the State Trustee.

The scales determine the difference in the masses of the carriages and the lateral displacement of the center of gravity of the carriages.

Software

Scales provide the possibility of computer accounting of weighing results, as well as output of information to a computer display and/or a printer.

Scale software integrates with the Customer's software (1C Accounting) and allows accounting for weighed cargo both locally and as part of the company's information system, while ensuring the necessary document flow related to cargo weighing, including and the possibility of working with various types of fiscal printers, etc.

The process of weighing can be accompanied by video recording with the entry of video information into the database of weighed goods.

The software of the scales allows you to control and manage the flow of cargo through the load-receiving device of the scales with the help of barriers, traffic lights, remote boards and other light signaling equipment.

In addition, support for the remote identification system of vehicles (cars, wagons) can be built into the scales' software.

Functions of electronic equipment:

- Display of weighing results;

- Diagnostics of each sensor separately using a multi-channel system;

- Control of the correctness of the main components of the equipment;

- Display of the control results and the necessary tips for setting the weighing mode and reporting the weighing results;

- Determination of the longitudinal and transverse displacement of the center of gravity of the wagon;

- Output of weighing results on PC;

- Ability to work in dosing mode;

- The distance of the scales from the weighing processor is up to 1200 m;

- Correction of the temperature error of the strain gauges of the platform;

- Self-diagnosis of the electronics of scales, with the display of information about malfunctions on the display of the scale processor;

- The possibility of simultaneously connecting two devices to the weight processor: a computer and a remote duplicating panel;

- The possibility of calibration using the vesoprocessor keyboard (individual adjustment of each platform, the edge of the platform and the sensor);

- Possibility of electric power supply of the weighing processor from the battery with a voltage of 12÷24 V;

- Sensors RS3 (Flintec, Germany) pass the entrance inspection at the company's stands;

the material of the strain gauge body is stainless steel.
