EXTENSOGRAPH test analyzer, Dnepropetrovsk region.

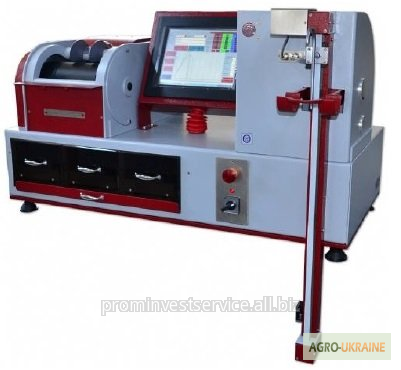

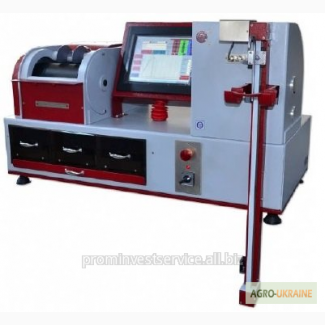

Test analyzer EXTENSOGRAPH

Description

The test analyzer Extensograph is intended for determining the parameters of test stretching in different periods of fermentation. The resistance of the test to stretching and the ability to stretch in certain time intervals are important parameters that determine the bread properties of flour. Retention by the test of carbon dioxide, formed as a result of fermentation with the help of yeast, is related to the ability to stretch and resistance to stretching. This system is used in the flour milling and bakery sectors, in the control of raw materials, the industry of food additives (such as ascorbic acid, celluloid enzymes, oxidative enzymes) and for determining the features of the optimal dough and fixing them.пищевых добавок (таких как аскорбиновая кислота, целлулоидные ферменты, окислительные ферменты) и для определения особенностей оптимального теста и закрепления их.

Test samples weighing 150 g each are stretched by means of a special hook after 45, 90, and 135 minutes of proofing, respectively. Management is carried out through a built-in industrial PC with a touch screen. The device is equipped with a stepper motor. The device for forming the dough, as well as the stretching hook, are controlled via the touch screen. With the help of built-in software, calculations are made to estimate the schedule. The graph is saved in the computer in PDF format.

A video review of the Extensograph test analyzer can be viewed on YouTube at the link: https://www.youtube.com/watch?v=QAvspFxwHWM

Advantages

ü The presence of a stepper motor;

ü The device is easy to use;

ü Management directly from the computer;

ü Measurement of parameters during dough stretching, as well as determination of baking properties;

ü Prolonged testing time (suitable for determining bakery properties);
(//tractor-service.com)
ü The received data is saved on the computer;

ü An integrated computer makes connection via the Internet possible;

ü Ability to update software through remote access;

ü User-friendly multilingual software;

ü Demonstration of the effect of additives.

Defined indicators by the analyzer

ü Resistance to stretching at the 5th centimeter (R5). Resistance of the curve at constant expansion on the 5th centimeter;

ü Maximum tensile strength (Rmax). The highest peak value of the curve;

ü Stretchability (mm). The total length of the curve. The difference in time from the beginning of the stretching of the test to its rupture;

ü Energy (cm2). On the graph, this is the area under the curve, in cm2;

Max. ratio coefficient. (Max. resistance / Ability to stretch);

ü Ratio coefficient. (Resistance on the 5th cm. / Ability to stretch).
