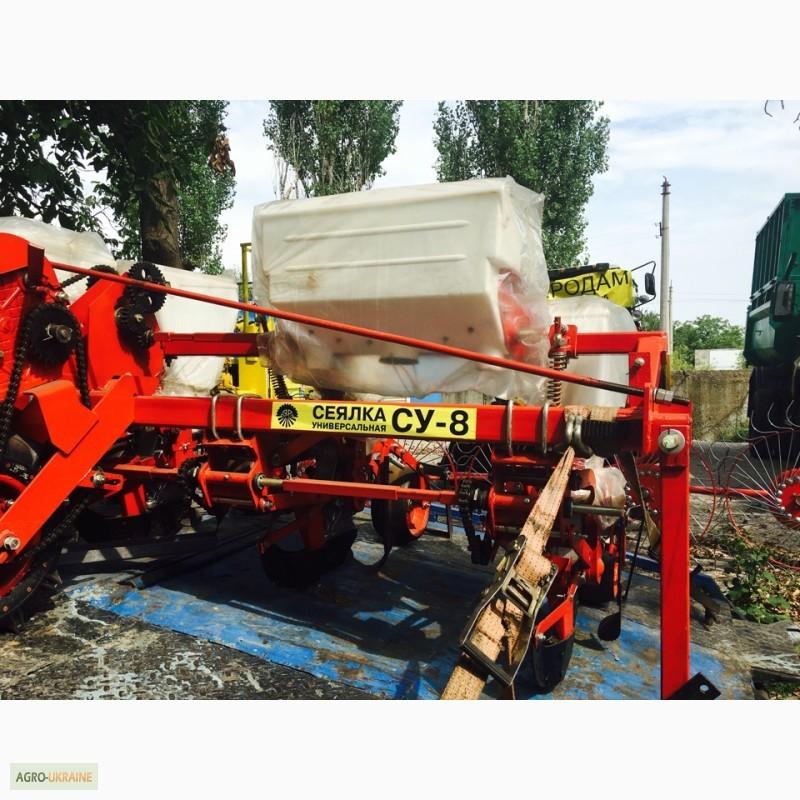

Seeder Supn-8, Ups 8 of precision seeding, Warranty, Delivery, Kirovohrad region.

SeederSUPN-6-01 ejector - creation of stable rarefaction in the pneumatic system is ensured by the device SUPU 02.000 - gas jet compressor. Sowing sectionsSeeder SUPN-6 with drive on bearings, drive sprockets die-welded, drive chains with a pitch of 15.875
Grease reducer on bearings, Sivalka SUPN-6 grease reducer gears stamped-welded (metal) hardened with galvanized coating.
Receiver frame (the discharge goes along the beam (60 x 60 mm) of the frame
The marker system is hydraulic (each marker is on an individual hydraulic cylinder, i.e. without cables)
Plastic fat cans, plasticgrain bunkers increased capacity.
The fan of a new model works directly from the power take-off shaft through the cardan shaft, (cardan shaft speed - 540 rpm), with a wide rotor. (analogue of UPS). Technical characteristics SUPN-6 The width of capture is 4.2 m.
Ширина захвату 4,2 м.
The width of the rows is 70 cm.(//tractor-service.com)
Overall dimensions of the planter in the working position (without taking into account the departure of the markers), mm:
Length 1960
Width 4620
Height 1400
Ground clearance, mm, not less than 300
Overall dimensions of the planter in the transport position, mm:
Length 1960
Width 6700
Height 3650
