The chain mechanism for switching gears of seed sowing devices has 15 transmission ratios.
The gear mechanism for switching gears on fat-screening devices has 12 transmission ratios.
A distinctive feature of the seeder is that sowing is carried out practically in the zone of the support wheels
wheels seeding section, thus, unevenness of the soil completely ceases to affect the seed sowing depth.
The presence of an inspection window allows visual control of the quality of the seeding device during the adjustment process.
The telescopic design of the drill makes it possible to reduce the overall dimensions of the planter during transportation.
Technical characteristics
(//tractor-service.com)
Width of capture m 5.6
The number of lines pcs. 8

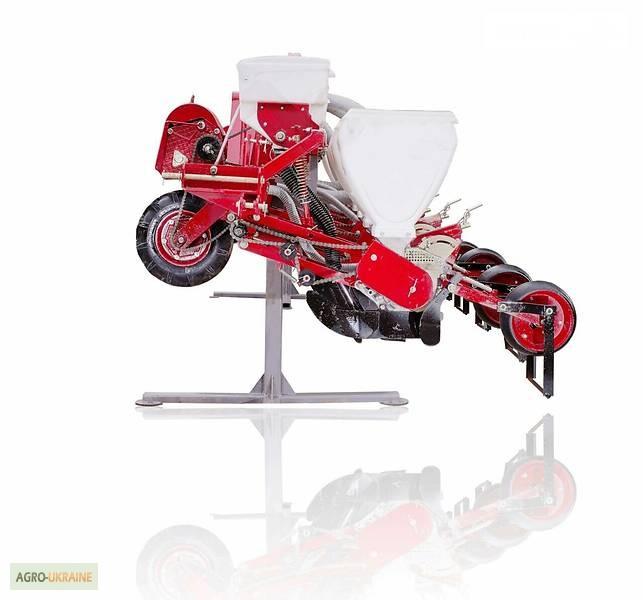

Universal Pneumatic Planter
UPS-8
Description and work:
The universal pneumatic seeder UPS-8 is intended for accurate sowing of calibrated, coated and ordinary seeds of corn, sunflower, castor, sorghum, fodder beans, beans and other seeds close to them in size, with simultaneous application of granular mineral fertilizers separately from the seeds.
It is aggregated with tractors of class 1, 4 t.s.
Constructional features of the seeder:
The design of the seeding device provides a wide range of sowing seeds of 2-43 pcs. per linear meter, which allows sowing of seeds of various tillage crops.
