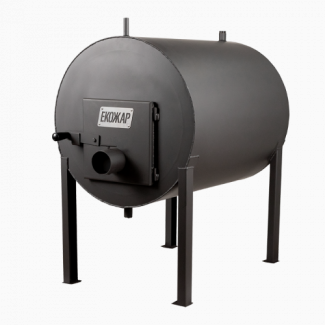

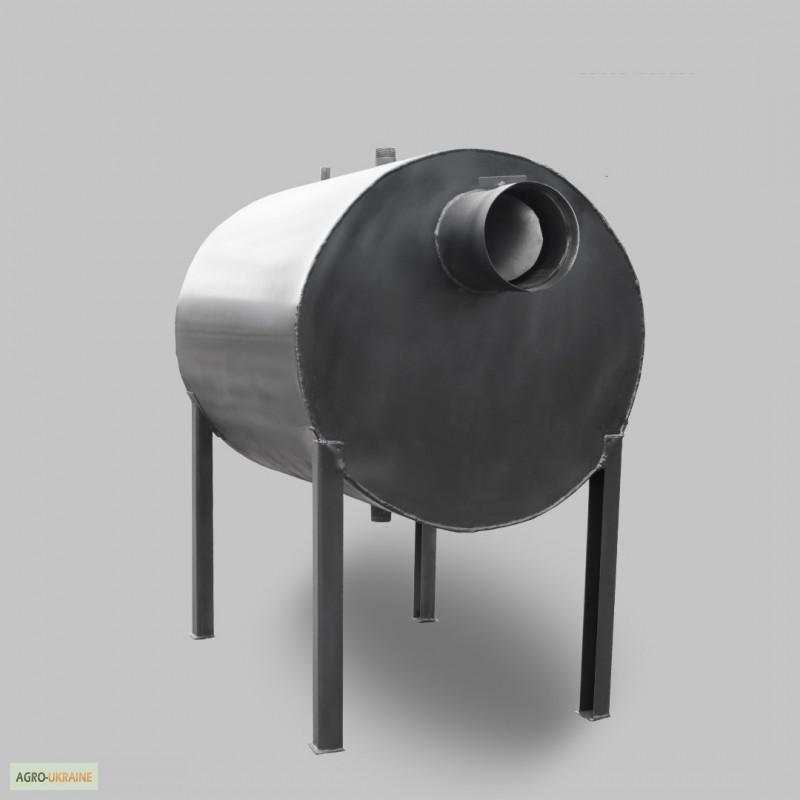

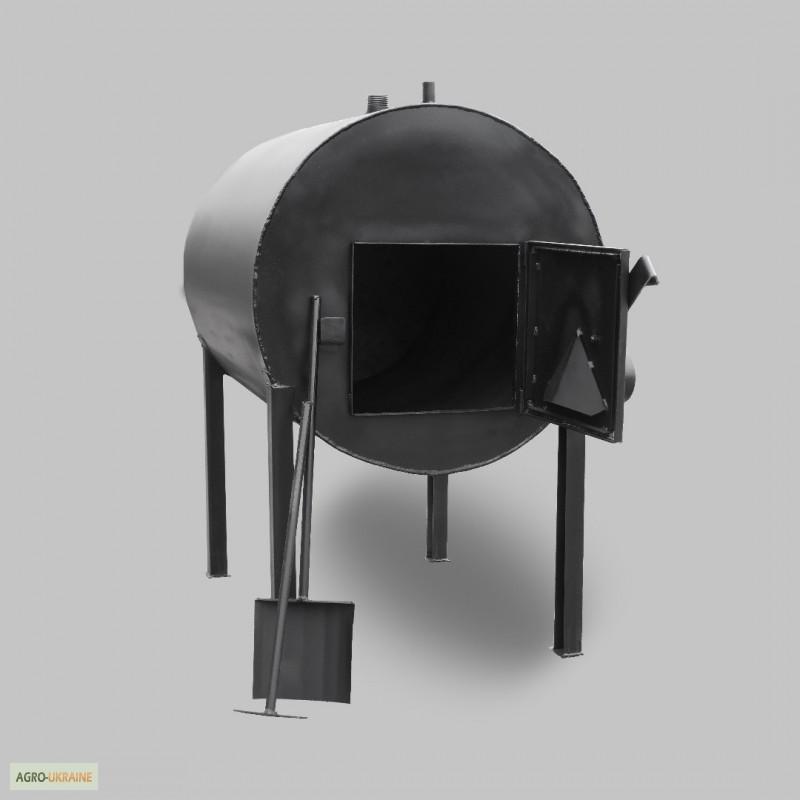

Ekozhar KVD 500 wood-burning stove with water circuit, Cherkassy region.

In rooms where it is possible to install heating radiators, a boiler with a water circuit Ekozhar KVD 500 is used. The heat carrier is water, which is heated in the cavity between the furnace furnace and the outer jacket. The transfer of heated water from the boiler to the radiators is carried out with the help of a circulation pump. To control the degree of water heating, a seat is made under the thermometer. The size of the nozzles for connecting the water circuit is 1 inch and can be changed to an individual order.

The buleryan furnace is quite roomy and made of a pipe with a thickness of 8 mm. This ensures continuous operation for 7-9 hours. The intensity of burning and, accordingly, the time of operation of the furnace is regulated by dampers. They are installed on the oxygen supply pipe and on the chimney pipe.

The thickness of the furnace is 8 mm.
Heating volume 500m3
Heating area 200m2
The size of the firebox is 800x520mm.
The diameter of the flue pipe is 160 mm(//tractor-service.com)
External dimensions L1100 x W630 x H1020mm
Burning time on one full charge is up to 9 hours.
Weight 110 kg
Minimum volume: 32 l
Warranty 12 months
Efficiency 81%
The connection to the chimney is rear.
