Bunker for storing grain raw materials, Nikolaev region.

Bunker for storing grain raw materials UAH 39,500.

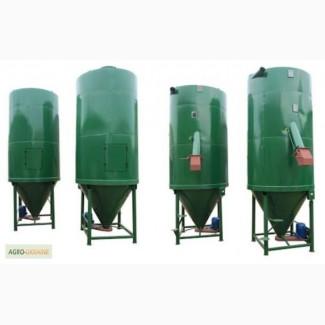

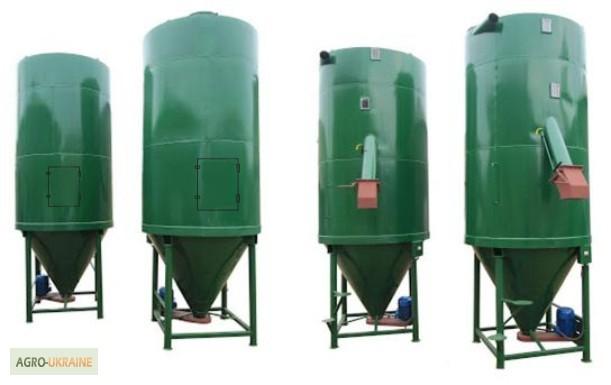

Bunkers for long-term storage of grain and processed products.

Made of all-metal welded:
- from Art. 3 for painting or from stainless technical steel with an angle of inclination of 50?; 55?; 60?.
- with an internal auger for shoveling the stored product in order to lower its temperature, prevent the development of fungal mold, slime and self-ignition, with subsequent unloading.
Raw materials are loaded from above with a pneumatic loader, a noria, and an auger. Complete cleaning of residues from the lower part of the cone is mechanized:
- it is necessary to open the hatch located in the lowest part of the ego and turn on the auger. Practically all the rest will be taken out of the tray outsidecapacity.
The bunker can be used as a mixer.
(//tractor-service.com)

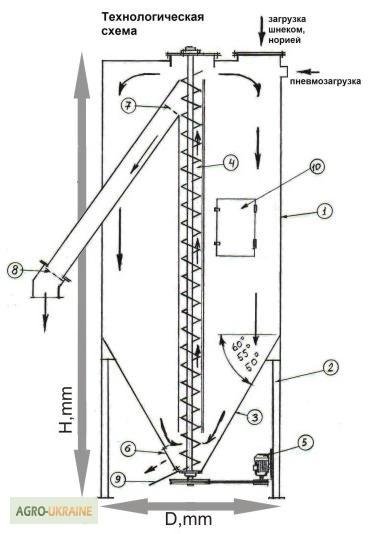

Explanation:
1-cylindrical body; 2-support racks; 3-hull bottom; 4-internal screw; 5-electric screw drive; 6-hatch for unloading material residues; 7-valve; 8-valve;
9-discharge tray with side walls; 10-hatch for inspection and maintenance of the container.

Technical characteristics of hoppers with an auger, with a conical bottom and an angle of inclination of 60 degrees.

In addition to grain,mixed feed is stored in these bunkers. More loose materials can be stored in bunkers with an angle of inclination of 50 degrees. and 55 degrees. The power of the installed electric drive of the auger depends on the type of stored material.

To order, we will manufacture a bunker with other characteristics and the necessary height and distance for unloading the stored material.

PROMSELPROEKT
