REINFORCED Harrow BDF-1.8-2.1-2.4-2.8 mounted trailer BDFP-2.1-2.4-2.8-3.1-3.5 FACTORY, Dnepropetrovsk region.

Available PRICE + INCREASEDHarrow BDF-1.8-2.1-2.4-2.8 mounted trailer BDF-2.1-2.4-2.8-3.1-3.5 FACTORY (BDF disk harrow VIDEO) Thousands of Satisfied Clients. Call! Wide Model Range from 2.4 to 6 Meters! Consultation by choice.
THE PRICE INDICATED IS REAL WITHOUT CHARGE!!!
Mounted disc harrow BDF
BDF-1.8 UAH 78,000.00.
BDF-2,1 UAH 87,000.00.
BDF-2,4 UAH 97,000.00.
BDF-2.8 UAH 110,000.00.
BDF-3,1 143,000.00 UAH.
Trailed harrow BDFP
BDFP-2,4 154,000.00 UAH.
BDFP-2.8 UAH 167,000.00.
BDFP-3,1 195,000.00 UAH.
BDFP-3.5 UAH 244,000.00.
BDFP-3.8 UAH 280,000.00.

The harrow is intended for continuous and pre-sowing soil processing of various mechanical composition for technical, grain and fodder crops and with grinding and embedding of plant residues in the soil (refreshing of sodden meadows) in various agrotechnical schemes. The adjustable processing depth is approximately 8 to 18 cm.

Hinged disc harrow BDF-2.1BDF-2.1
Hinged disk harrow BDF-2.1 2
Hinged disc harrow BDF-2.1 3
Technical characteristics.
Name BDF-1,8 BDF-2,1 BDF-2,4 BDF-2,8 BDF-3,1
Hinged Type
Working speed 8-12 km/h
The depth of soil treatment is 8-18 cm.
Height 1400 mm.
Length without roller 1580 mm.
Long with roller ?
Width 1.8 m. 2.1 m. 2.4 m. 2.8 m. 3.1 m.
Productivity 1.5 Ha/h. 1.7 Ha/h. 2.0 Ha/h. 2.3 Ha/h. 2.6 Ha/h.
Tractor power 40 ÷ 60 hp. 60 ÷ 80 HP 80 ÷ 90 HP 90 ÷ 110 HP 105 ÷ 120 HP(//tractor-service.com)
Transport speed, no more than 20 km/hour
Ground clearance, not less than 300 mm,
Transfer to the transport and working position Hydraulic, hydrofed by the tractor's hinged system
Number of working bodies 10 racks 12 racks 14 racks 16 racks 18 racks
Number of rinks 1 rink 2 rink
Weight 675 kg. 770 kg. 880 kg. 1000 kg. 1100 kg.

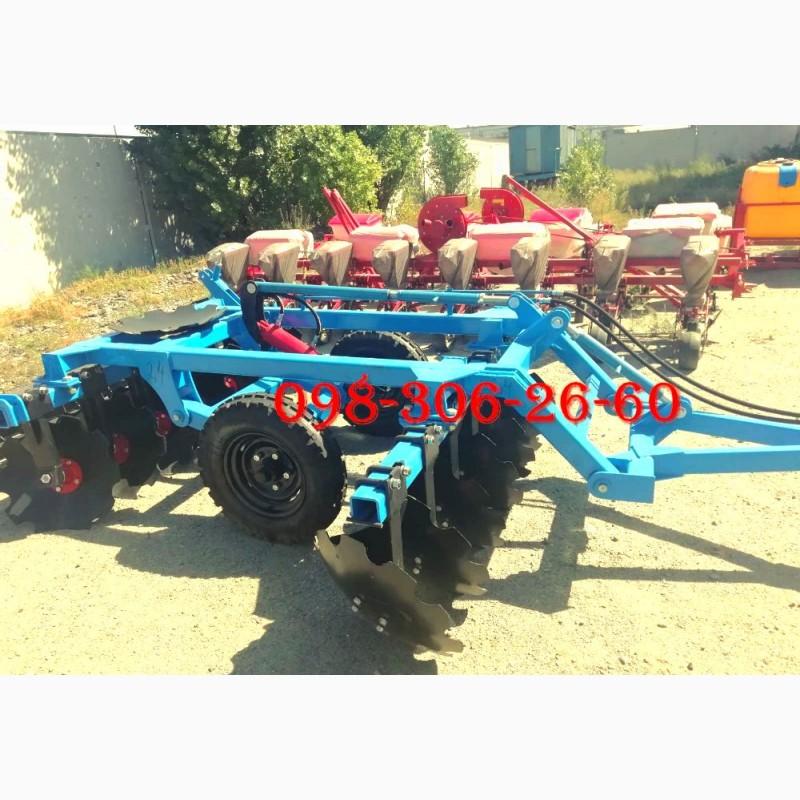

Trailed disk harrow - BDFP
The harrow is intended for continuous and pre-sowing soil processing of various mechanical composition for technical, grain and fodder crops and with grinding and embedding of plant residues in the soil (refreshing of sodden meadows) in various agrotechnical schemes. The adjustable processing depth is approximately 8 to 18 cm.

Trailed disc harrow BDFP-4,2BDFP-4,2
Trailed disk harrow BDFP-4,2 2
Trailed disk harrow BDFP-4,2 3
Technical characteristics.
Name BDFP-2.4 BDFP-2.8 BDFP-3.1 BDFP-3.5 BDFP-3.8 BDFP-4.2
Type Trailed
Working speed 8-12 km/h
The depth of soil treatment is 8-18 cm.
Height in transport position 1400 mm.
Height in working position 1100 mm.
Length 4940 mm.
Width 2.4 m. 2.8 m. 3.1 m. 3.5 m. 3.8 m. 4.2 m.
Productivity 1.9 Ha/h. 2.2 Ha/h. 2.5 ha/h. 2.8 Ha/h. 3.1 Ha/h. 3.4 Ha/h.
The power of the tractor is 80 hp. 100 HP 130 L.S. 160 HP 180 HP 200 HP
Transport speed, no more than 20 km/h.
Number of working bodies 14 racks 16 racks 18 racks 20 racks 22 racks 24 racks
Number of rinks 1 rink 2 rink
Ground clearance, not less than 300 mm,
Transfer to the transport and working position by the hydraulic wheeled transport mechanism of the disc harrow, connected to the hydraulic system of the tractor
Weight 1400 kg. 1630 kg. 1850 kg. 2000 kg. 2250 kg. 2400 kg.
The BDFP Trailed Harrow is produced with a working width of 2.4 to 4.2 meters.
It is equipped with plate cylindrical rollers with a diameter of 400 mm.
