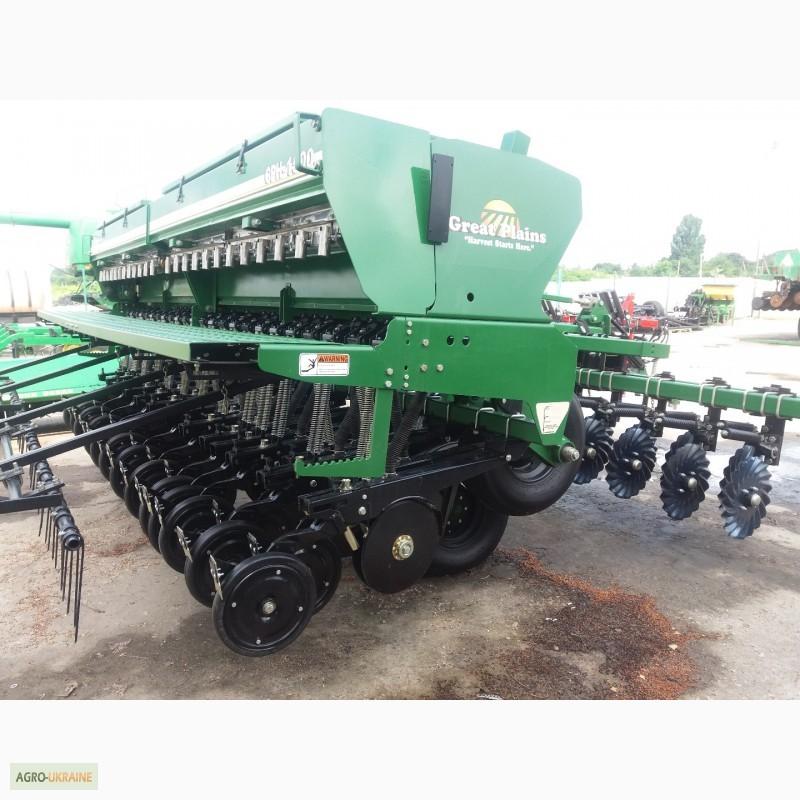

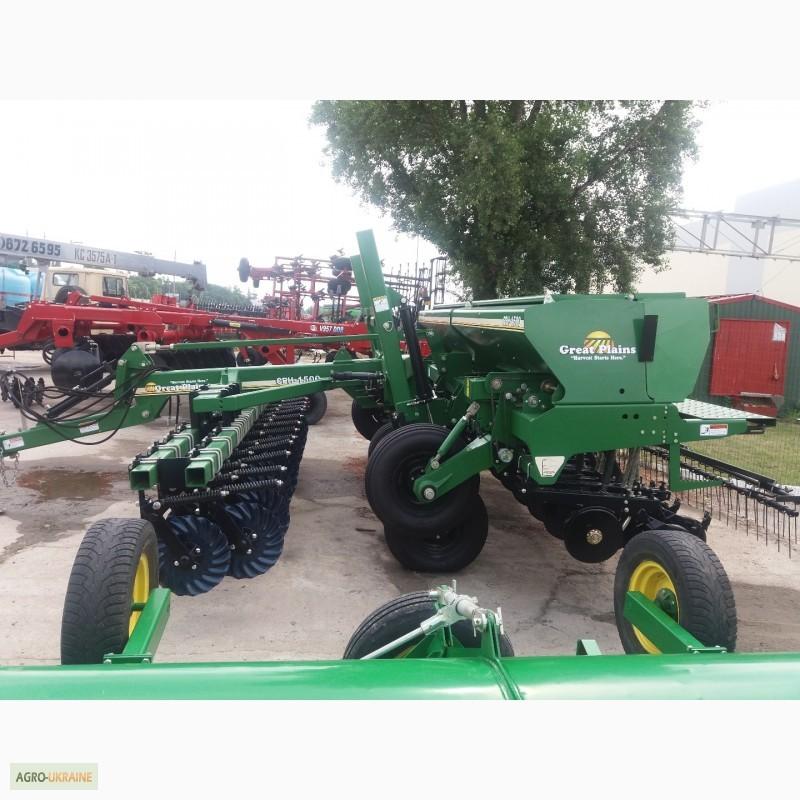

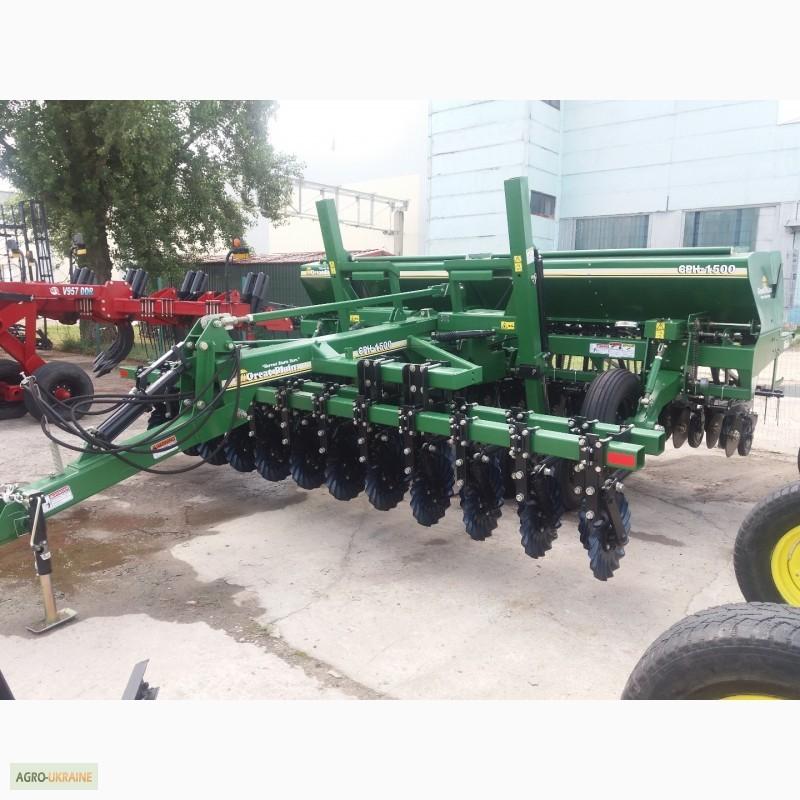

Great Plains seeder CPH-1500 4.5 meters
Technical characteristics:
Model - SRN-1500
Spacing - 19 cm
Number of coulters - 24 pcs.
Weight - 3577 kg
Working width of capture - 4.5 m.
Transport width - 4.6 m
Transport clearance - 43 cm
Height - 2.5 m
Length - 6.7 m
The volume of seed boxes - 1307 l
The volume of boxes for dry fertilizers (option) - 0.42 m3
Size
tyre - 9.5 x 15
The movement of the coulter is 16.5 cm.
Sowing depth - 0-9 cm
Pressure on the opener - 41-82 kg
(//tractor-service.com)
The working depth of the cutting disc is 0-10.2 cm
The preset pressure of the cutting disc is 204 kg.
Required power of the tractor (approx.) - 125 hp.
Features and advantages:

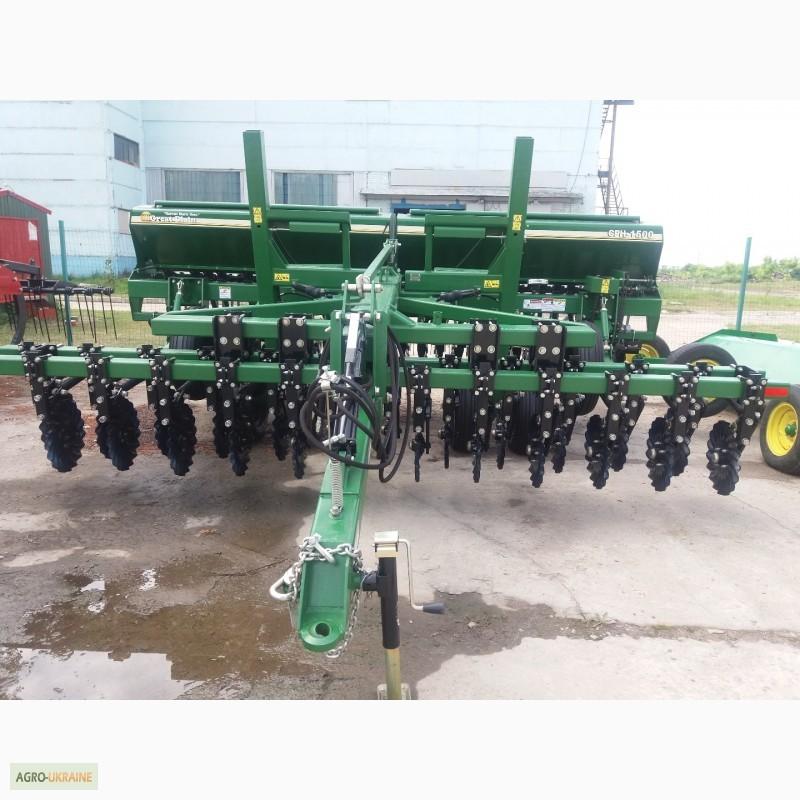

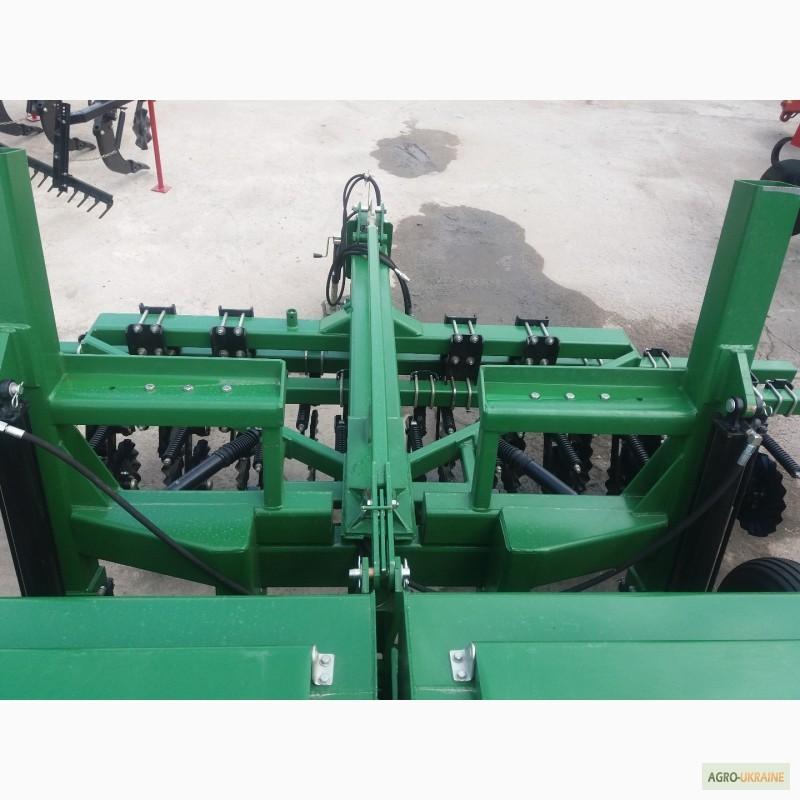

- a coupling device with a central hinge (the coupling converts an ordinary seeder into a machine for working on stubble);
- exclusive coupling design (a unique design with a hinged coupling device ensures the exact tracking of the trajectory of the disk knives and openers even when turning);
- rotary locks (simple hinged locks rigidly connect the seeder and hitch for transportation);
- quick coupler (the rigid quick coupler allows you to easily connect the 3-point attachment of the seed drill with the installation pins);
- a design with a spring and a shock absorber (the spring part allows the SRN and the seeder to move independently, and the shock absorbers control all movements, smoothing them);
- preload on the cutting disc 204 kg (the cutting disc is held at a given depth during operation until it encounters an obstacle);
- depth gauge (a well-visible depth gauge gives you the opportunity to adjust and control the depth of the cutting discs directly from the tractor cab);
- changing the seeding rate (the accuracy of the seeding rate is controlled by the flight of all seeding devices);
- drive
copier wheel (the drive of sowing devices is simple and does not require any switches);

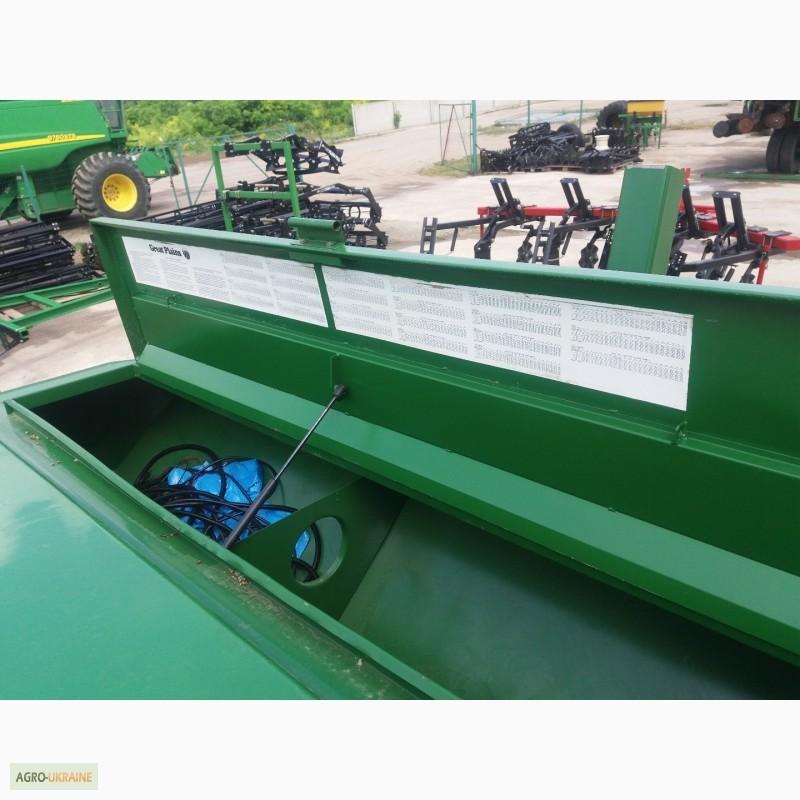

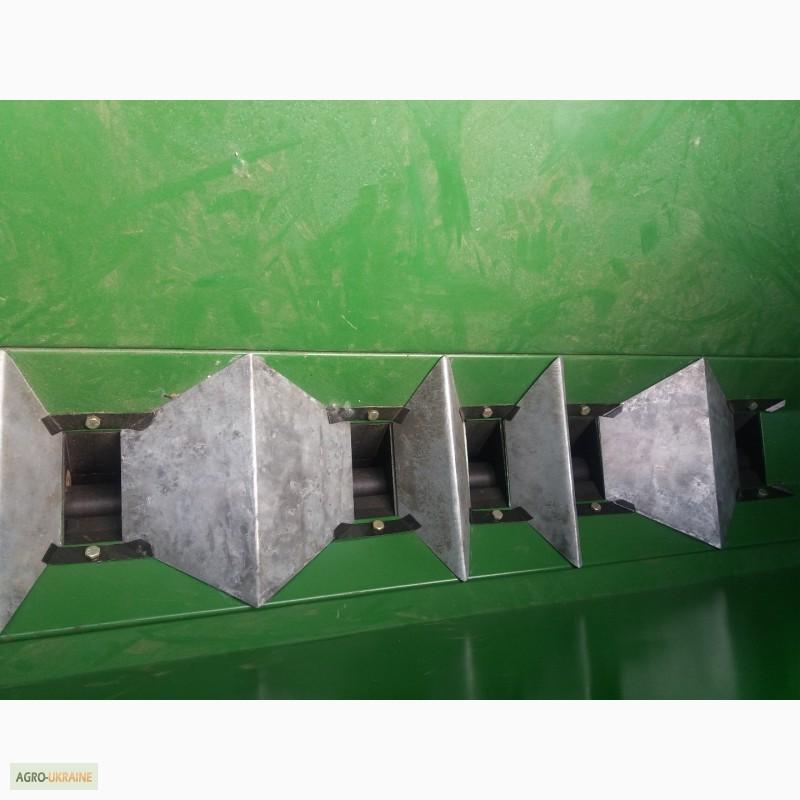

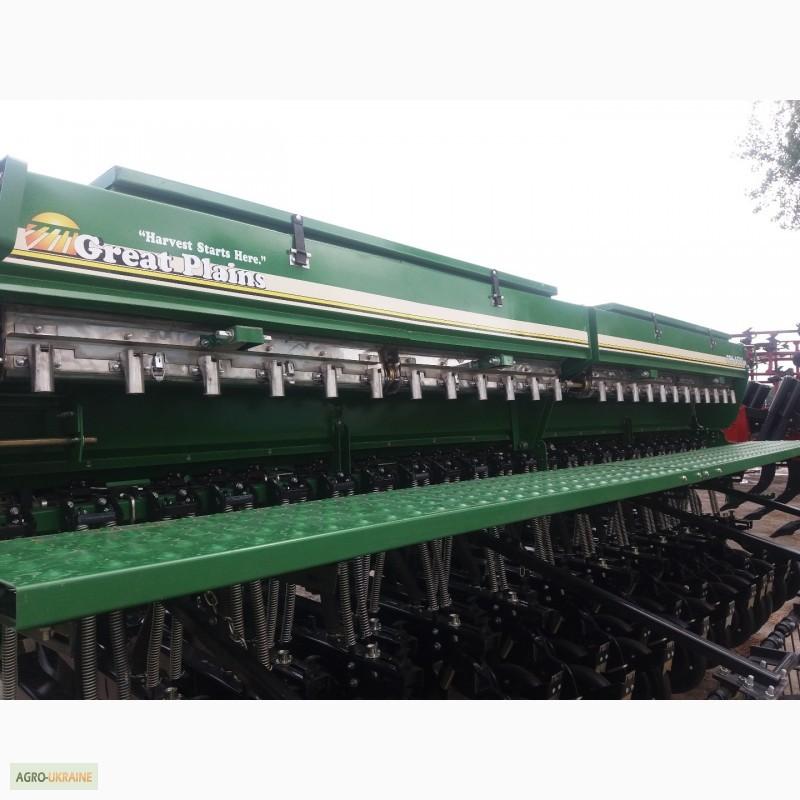

- large waterproof boxes for seeds (bunkers for seeds with a volume of 285 l per meter of the sowing width have deflectors for seeds, lid stops, a V-shaped bottom and a wide footrest);
- dry fertilizers (possibility of applying fertilizers simultaneously with sowing);

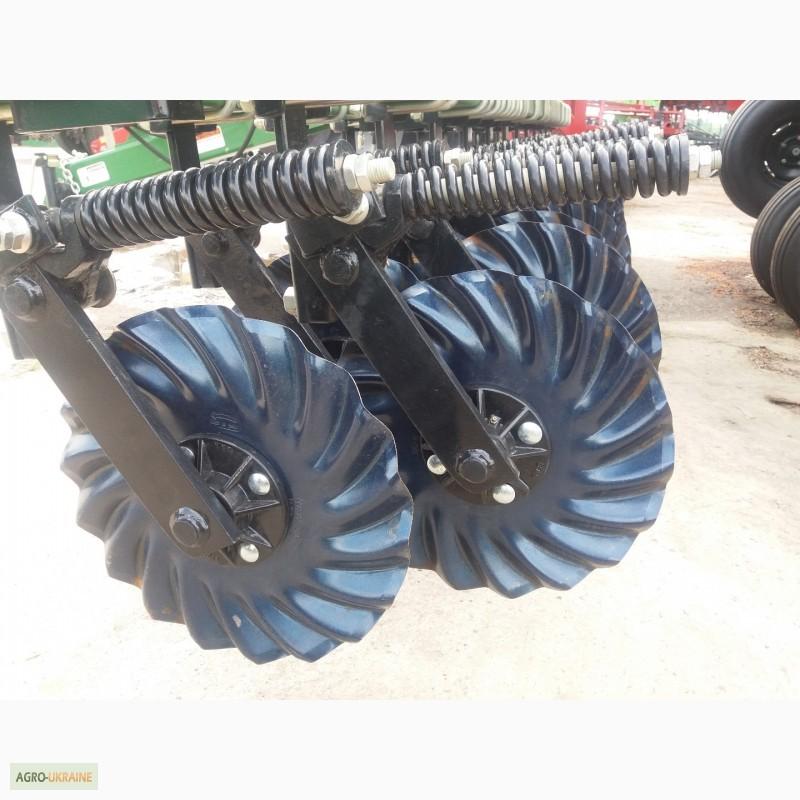

- turbo disks are arranged in a checkerboard pattern with hydraulic pressure regulation on the soil;

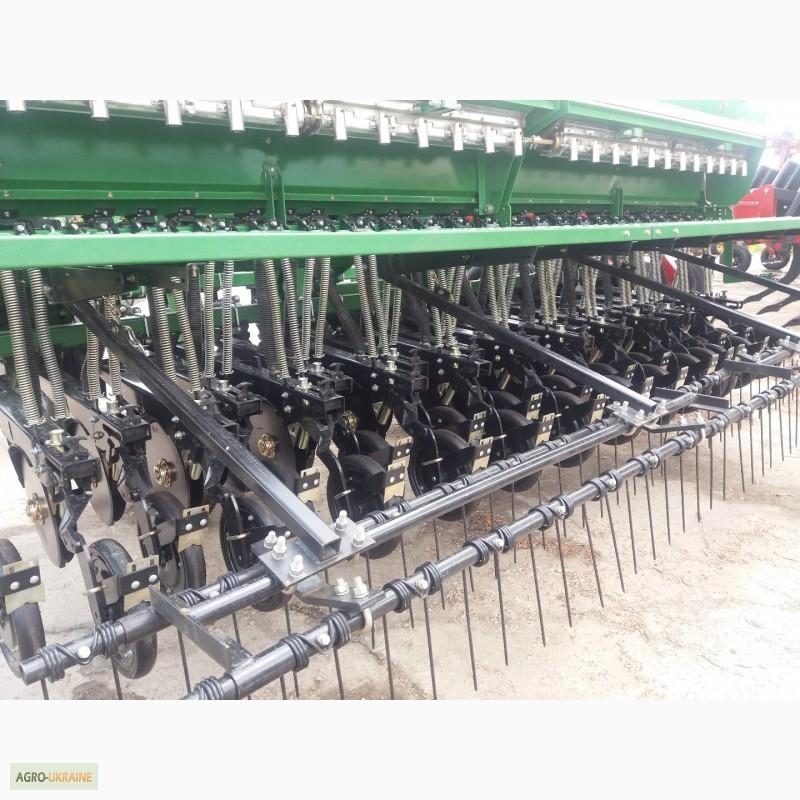

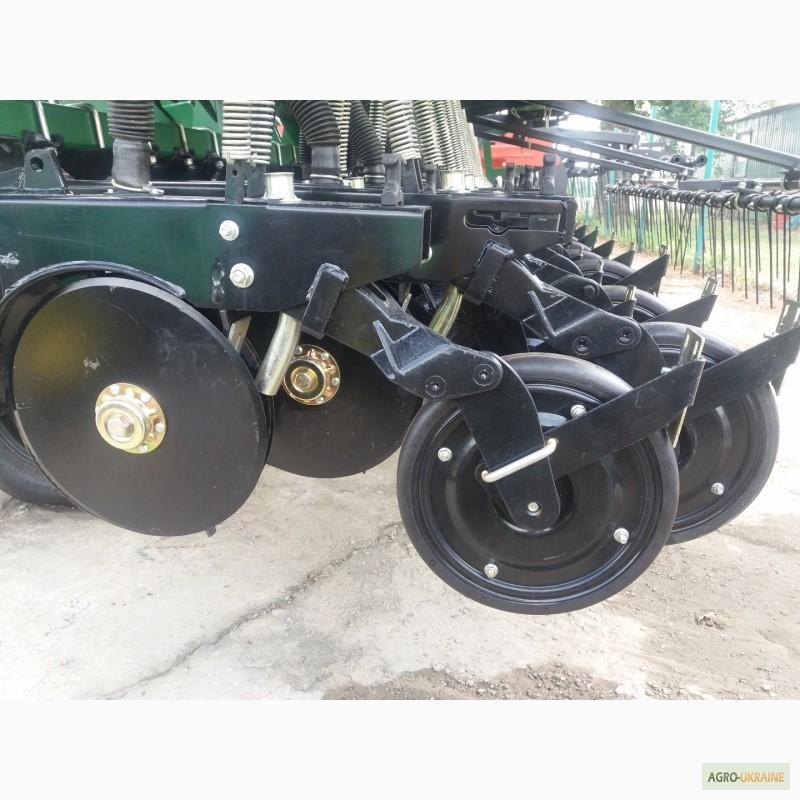

- coulter disc cleaners;
- cleaners for rolling wheels.
