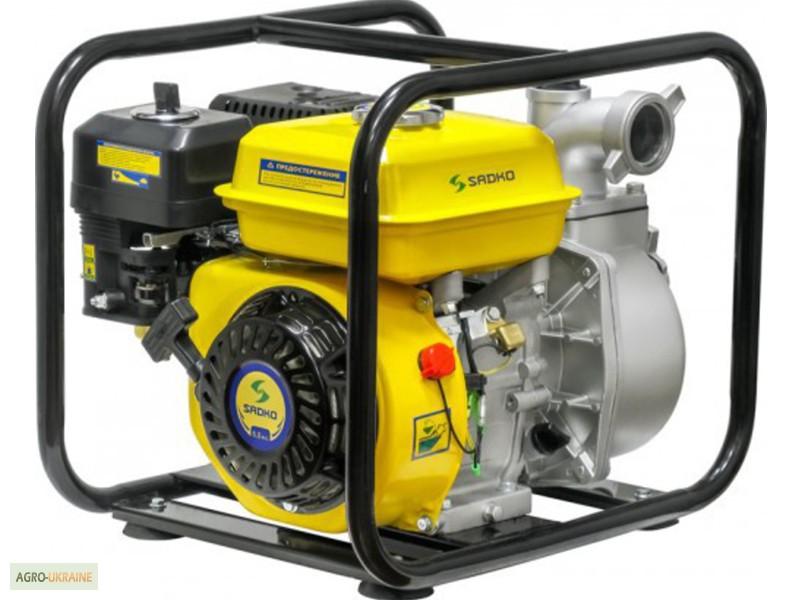

A powerful motor pump that can be used as a fire pump
pump. A unique opportunity to raise water to a height of 65 meters, with a constant supply of 500 liters per minute. 65 meters is the height of two nine-story buildings in Ukraine. So you can estimate its potential.
Advantages:
- as many as three (!) outlet pipes for simultaneous water supply in three directions.
- 4-stroke single-cylinder engine with a capacity of 6.5 horsepower.
- fuel -
gasoline A-92, economically consumed thanks to the engine speed regulator.
- height of water rise – 65 meters, depth of water intake – 8 meters.
- the diameter of the inlet and outlet holes is 5 centimeters (or 2 inches) each.
- the volume of the fuel tank is 3.6 liters, intensive use for several hours.
It is enough to water the entire field or extinguish the fire.
- weight 25.1 kilograms. oil level sensor.
- the presence of particles with a diameter of up to 8 millimeters is allowed in the water.
- the set includes instructions, a warranty card, clamps, nozzles, a filter, a key for unscrewing the spark plugs.
Main characteristics
Suction height, (m): 8
(//tractor-service.com)
Lifting height, (m): 65
Diameter of suction/outlet hole, (mm): 50-50/40/40
Max. diameter of permissible particles, (mm): 8
Fitting: metallic
Productivity, (l/min): 415 (30 cubic meters/hour)
Weight, (kg): 25.1
Engine
Engine type: single-cylinder 4-stroke
Working volume of the engine, (cc.): 196
Engine power: 6.5 hp/4.8 kW (at 3600 rpm)
Starting system: manual starter
Fuel tank volume, (l): 3.6
Recommended fuel: gasoline A-92
The volume of oil in the crankcase, (l): 0.6
Recommended oil: SAE 10W30
