Multifan mine fans P6E63 for animal husbandry, Kyiv

Multifan mine fans P6E63 for animal husbandry,

Multifan P6E63 mine fans are intended for installation in existing ventilation systems based on the use of vertical supply or exhaust chimneys, and can also be used as working units in horizontally located ventilation equipment mounted, for example, in the side walls of a building. The same type of fans can be used on industrial air humidifiers, the work of which is based on the use of evaporative cooling panels, various heat guns, etc.

Multifan P6E63 mine fans can be installed without additional devices in ventilation fireplaces of most European manufacturers, for example, Big Dutchman, Reventa, Skov, etc., where ventilation units with an electric motor with an external rotor are used.

Main technical characteristics:

• All engines with variable speed control.
• Low electricity costs
• Protection against dust and moisture (IP55)
• Low operating expenses
• High reliability
• Low noise level

Main features:

• Engine insulation class F (155o C)
• Not subject to corrosion of components and fastening materials.
• Anti-corrosion coating on the rotor and stator.
• Aluminum motor housing and mounting brackets
• The winding is covered with three layers of insulation
• Special bearings for high temperatures(//tractor-service.com)

The fan is designed to improve the temperature uniformity in the room.
This ensures a minimal temperature difference throughout the room, which has a beneficial effect on the health of animals.
Mine fans for optimal ventilation, built into mines or ventilation holes.
They can be placed horizontally or vertically.

Technical characteristics
0 Pa 12200 m3/h
50 Pa 10200 m3/h

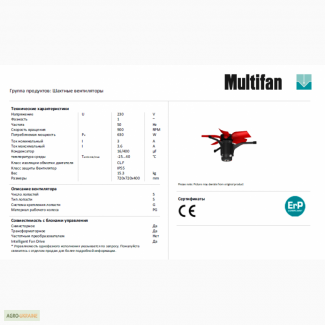

Technical data

Voltage 230V
Phase 1 ~
Frequency 50 Hz
Power consumption 630 W
Rated current 3.0 A
Speed 900 RPM
Min. the temperature of the medium is -25 °C
Max. environment temperature 40 °C
Insulation Class CL.F
IP Class IP55
Weight 15.3 Kg
Package dimensions 400 x 720 x 720 mm
