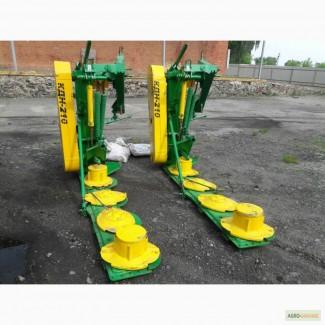

KDN-210 mounted tractor tractor mower, Cherkassy region.

The mower is intended for mowing natural and sown grasses, including high-yielding and low-lying grasses with the laying of the mowed mass in a swath. The mower is used in all zones, except mountain areas, on leveled meadows (hayfields) not clogged with stones protruding from the soil by no more than 30 mm.
The mower is aggregated with tractors of the 0.9 and 1.4 tc class, equipped with a three-point rear hinge system, having a PTO with a rotation frequency of 540 min-1.
Working bodies 4 disks with two knives
Width of capture, m 2.1
Overall dimensions, m:
- length 1.6
- width 3.6(//tractor-service.com)
- height 1.4
Mass, t 0.53
Power consumption, kW 16...20
Productivity, ha/h 0.95...2.85
Rotor speed, rpm 2390
Cut height, mm 40-100

Producer Bobruysk.
