Tractor DW 244 AC. 24 hp Warm cabin. 3 cylinders. Hydro booster, Odessa region.

Price is negotiable - call let's agree.
Deliverable across Ukraine.

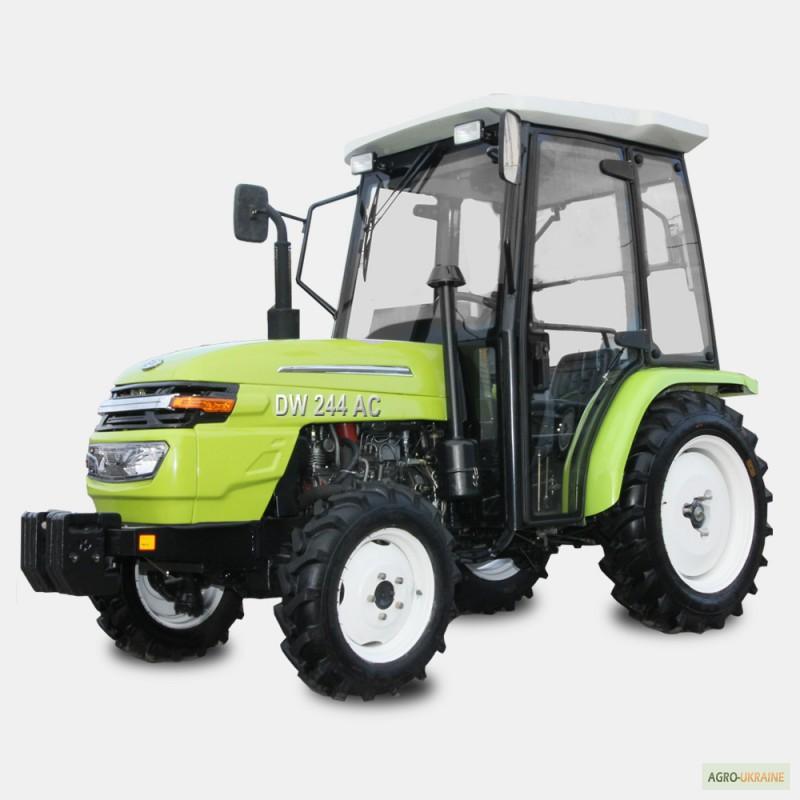

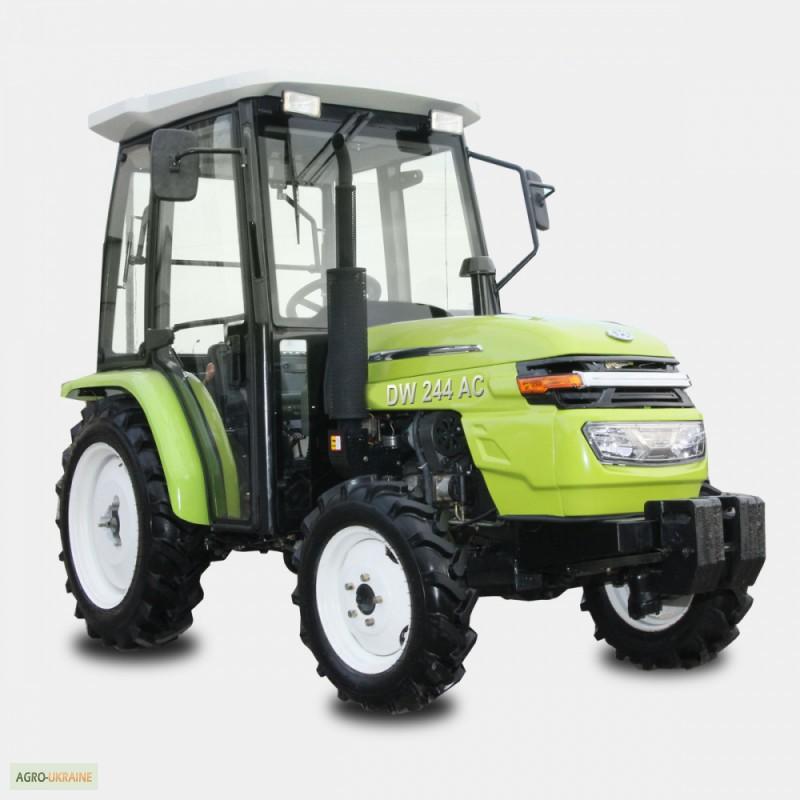

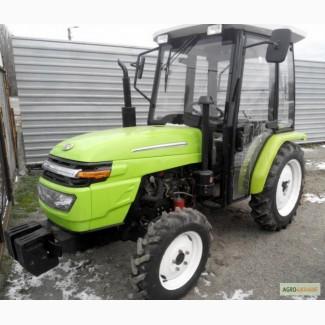

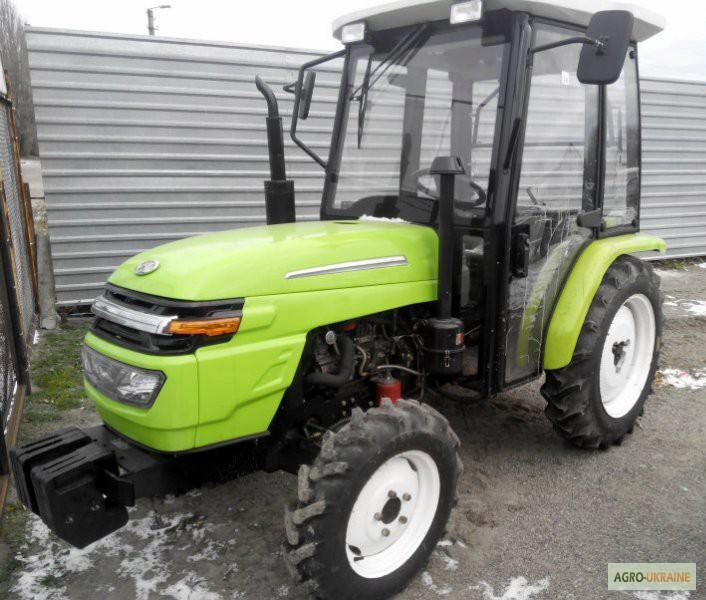

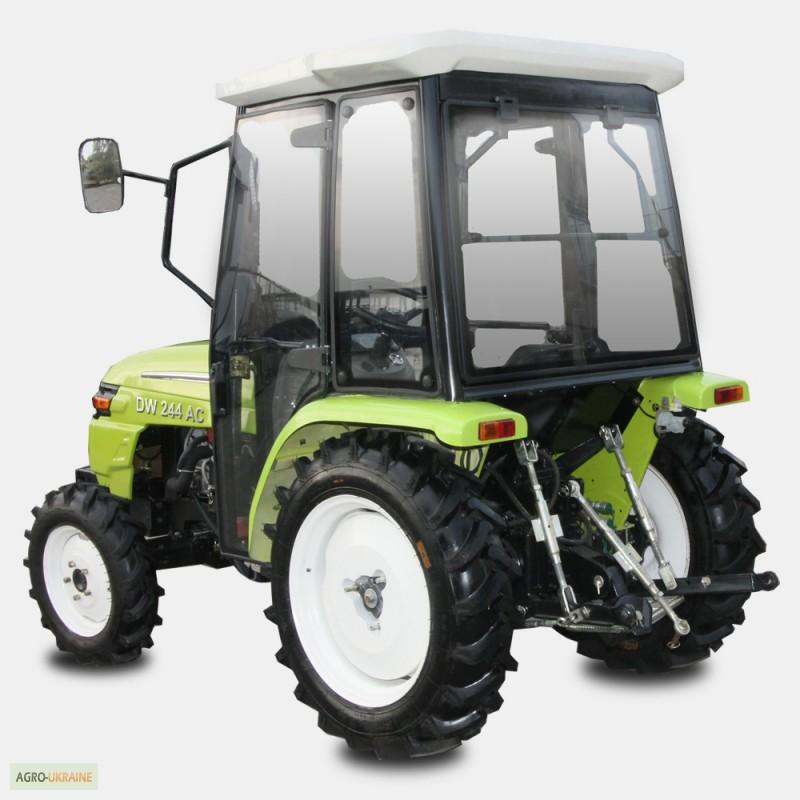

The universal all-wheel drive 24-horsepower tractor with a cab has a modern design and a rich set of equipment. It was developed on the basis of the DW 244AN tractor while preserving all its design features, reliability and high functionality. The modern heated cabin with a large area of ​​glazing and additional headlights provides the driver with a full all-round view and is highly airtight. This ensures comfortable work for the driver and protects him from weather conditions, makes it possible to use this tractor for work with chemicals and liquid fertilizers.

Constructive features:
3-cylinder engine.
All-wheel drive 4x4.
Cabin with heating and 360° view.
Power steering.
Power take-off shaft 2-speed 540/720 rpm.
Modern fashion design.
Largewheels 6.5-16 / 9.5-24.
Convenient location of control systems.
A spacious place for the operator.
Comfortable adjustable seat.
Drum type rear brakes.
Separate rear wheel brakes.
Rear axle differential lock.
Gearbox with extended speed range 8+2.

Complete set:

Compressor.
Comfortable adjustable seat with shock absorber.

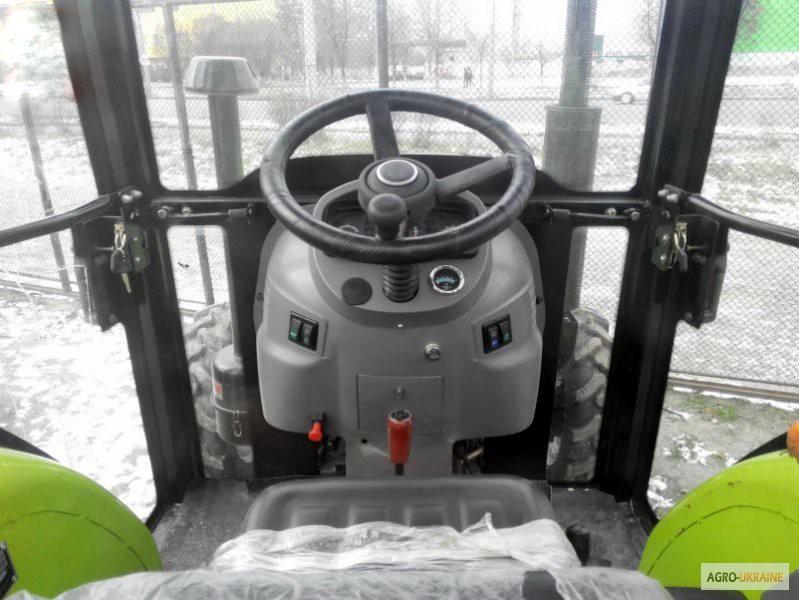

Electronic instrument panel - hour meter, fuel level indicator, tachometer, water temperature indicator, battery charging indicator, etc.
Electric outlet for a trailer.
Sound signal, side lights, high/low beam, turn signals.
Rear view mirrors.
Front hinged loads.
Loads of rear wheels.
Wings of the front wheels.
Mass switch.
Hydraulic outlet with quick release coupling.
Rear additional headlight.
Additional hydraulic distributor for 1 input/output equipped with a quick-disconnect coupling.

Engine power, hp (kW) 24 (17.65)
Wheel formula 4x4
Engine type diesel, 4-stroke, with direct injection, without turbocharging
Number and arrangement of cylinders 3, vertical
Engine starting system electric starter
Liquid cooling system, closed,
with forced circulation of cooling liquid
Cooling system fan drive V-belt transmission
Engine volume, cm3 1530
Cylinder diameter / piston stroke, mm 85 / 90(//tractor-service.com)
Nominal engine fuel consumption, g/kW*h ≤ 275
Nominal revolutions of the crankshaft of the engine, rpm 2350
Nominal traction force, kN 7.2
The type of engine oil is mineral or semi-synthetic for diesel engines.
Nominal oil consumption in the engine, g/kW*h 2.31
Gearbox (KP) (4+1)x2
Type of oil in the gearbox and rear axle Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90
(transmission)
Type of oil in the front axle Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90
(transmission)
Rear differential lock +
Dry clutch, 1-disc,
permanently closed type
The main transmission is direct
Brake on the rearwheels,
brake drums
Power take-off shaft (PTO) rear, splined
The pump type of the hydraulic system is a gear pump
Revolutions of the power take-off shaft (PTO), rpm 540 / 720
The maximum load capacity of the hinged mechanism, kg 500
Minimum clearance, mm 330
Wheel base, mm 1750
Wheel track, front mm 1200
rear 1260
Tire size front 6.50-16
rear 9.50-24
Minimum radius
turning, m without brakes 2.8
with brakes 2.4
Speed of movement, km/h forward 0.37-30.64
back 0.49-12.23
The volume of the fuel tank, l 21.0
Engine crankcase volume, l 3.0
The volume of the gear case and rear axle, l 11.0
The volume of the front axle crankcase, 3.0
Engine cooling system volume, l 6.0
Number of hydraulic outlets 1
Trailer connector (socket) +
Compressor +
Power steering +
Hour counter +
Seat with shock absorber +
Security arc -
Rear loads +
Overall dimensions (L x W x H), mm 3350x1500x2250
Gross weight, kg 1600
Fuel mass, kg 1531
