Tomato juicer/press electric TSHM-2, Poltava region.

10 reasons to buy a TSHM-2 auger juicer for tomatoes, grapes, apples and other berries and fruits:
high productivity (120 kg/hour of tomatoes, 70 kg/hour of grapes);
screw juicer TSHM-2 processes even wildgrapes with a hard stone;
the fully metal body prevents the TSHM-2 auger juicer from all kinds of damage;
the modernized auger increases the functionality of the TSHM-2 juicer and increases the speed of operation;
the engine with a capacity of only 400 W provides energy savings;
screw juicer TSHM-2 is completely produced in Ukraine (PJSC "Electromotor", 70 years on the motor market);
the TSHM-2 juicer is designed for long-term work of more than 1 hour;
does not require periodic cleaning during operation (advantage of screw juicers);
easy to assemble, has compact sizes, does not require special skills for operation;
low cost compared to foreign analogues.

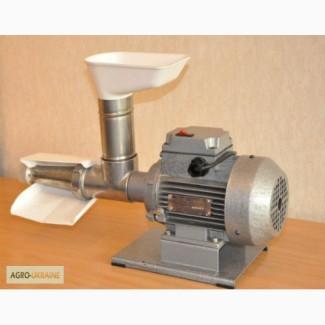

Tomato juicer electric TSHM-2

Press TSHM-2 allows you to get juice with pulp from berries (cherries,apricot, strawberries, raspberries, grapes, etc.) and tomatoes and apples.

If necessary, cut the apples into 4 parts. Remove the stone from stone berries. From the bunchgrapes preliminarily cut off the berries.

The production of screw juicers began with the production of the TSHM-1 tomato press, this juicer was intended only for processing tomatoes and its productivity was only 35 kg/hour. About 5 years ago, the plant began to produce a more innovative model - a universal press - TSHM-2. The TSHM-2 screw juicer processes tomatoes at a speed of up to 120 kg/hour, and also squeezes juice from all soft berries and fruits after removing the stones. But the main advantage of the TSHM-2 screw juicer is that it is capable of processing various types of grapes, while achieving a productivity of up to 70 kg/hour. In 2015, TSHM-2 underwent modernization, the auger was equipped with special serrations, now it is much more reliable, it can not wear out for many years and, most importantly, the auger does not wear out when processing wild grapes, in which the seeds are like small pebbles.

Let's consider the operation of the TSHM-2 auger juicer using the example of grapes
A bunch of grapes is placed in the loading hopper of a screw juicer, it is not necessary to cut off the berries, the branches of the bunch will come out together with the cake. The special pusher, which is included in the kit, the raw material is fed to the screw, after which the screw is transferred to the housing to the conical mesh, where it is pressed, the finished juice comes out through the holes of the mesh. The cake in the TSHM-2 universal screw juicer exits through a special gap that is regulated. If you are processing wild grapes, the gap can be adjusted so that the seeds pass through the hole. Thus, the process goes smoothly, the auger does not wear out, and the bones simply come out together with the cake.
Technical characteristics:

The capacity of the press is 70 kg/hour when preparing juice from grapes.
Productivity of the press is 120 kg/hour when preparing juice from tomatoes.
Power supply from a single-phase (household) 220 V network.
The power consumption is 400 W.
Weight 13 kg.

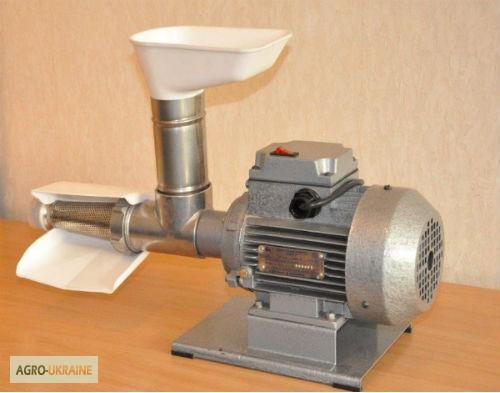

Tomato electric press TSHM -2 consists of:

electric drive
(//tractor-service.com)
housing

conical mesh

auger

loading hopper

wooden pusher

The press is easy to operate and does not require special skills during adjustment. Indispensable in the household, on the private plot.

Manufacturer Electromotor
Purpose Household
Device type Shnekovaya
Power consumption 400.0 (W)
External juice tank
Number of speeds 1.0
The maximum rotation speed is 720 (rpm)
Control type Electronic-mechanical
Nominal voltage 220 V
Body material Aluminum
Body color Aluminum
Country of manufacture Ukraine
Warranty period 12 (months)

Overall dimensions:
― height — 385 mm
― width — 185 mm
― length — 540 mm

Watch the video of the press at the link: https://youtu.be/Hsq0q3JPHBc

Happy viewing!
