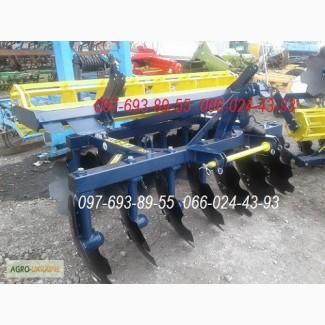

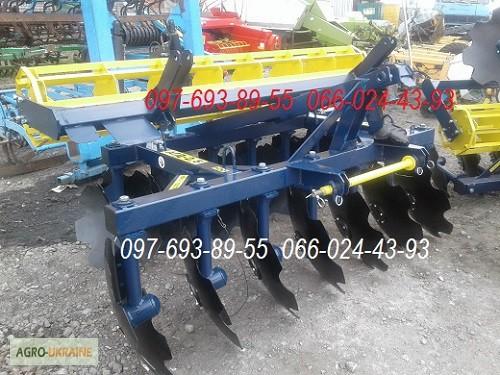

Mounted disk harrow AGD-1.8, AGD-2.1, AGD-2.5, AGD-2.8, AGD-3.5, AGD-4.5, Dnepropetrovsk region.

Disk mounted harrow AGD-1.8, AGD-2.1, AGD-2.5, AGD-2.8, AGD-3.5, AGD-4.5
A large selection of disk harrows of the AGD type produced by "A G R O R E M M A S H"

The unit is intended for the processing of compacted soils of different mechanical composition with grinding and embedding of plant residues in the soil.
The unit is intended for the processing of compacted soils of different mechanical composition with grinding and introduction of plant residues into the soil under the following conditions:
- Soil hardness is no more than 3.5 MPa, 140
- Влажность почвы не более 27%,
- The height of harvest and plant residues is up to 30 cm.
The unit can be operated in all soil and climatic zones.
Full technical characteristics of disk mounted harrows of the AGD type:
AGD disk harrow - 1.3 mounted
Spring type
Gripping width, constructive, m 1.3 minus 0.1
Fuel consumption, l/ha 3.6 4.0...
Productivity during the main time
of time, ha, not less than 1.5 1.9...
Depth of soil cultivation, cm 8...15
Working speed, km / h 8.0...12.0
Transport speed, km / h, no more than 20
Weight of the product (without accessories), kg 350 minus 20
Overall dimensions, mm, not more than 155
длина 1550 ширина 1600 высота 1100
Ground clearance, mm, not less than 300
Service personnel, people (tractor driver) 1
Guaranteed resource, 480 hectares

Disc harrow AGD-1.8 mounted GRIP WIDTH, m 1.8
PRODUCTIVITY, ha 1.6 - 2.0
DEPTH OF SOIL PROCESSING, cm 8 - 12
WEIGHT, kg 650
WORKING SPEED, km 8-12 OVERALL DIMENSIONS, mm (LENGTH\ WIDTH\ HEIGHT) 2300 - 2100 - 1300
ТРАКТОР , С КОТОРЫМ АГРЕГАТИРУЕТСЯ ЮМЗ-6Л, Т-40А
ГАБАРИТНЫЕ РАЗМЕРЫ, мм ( ДЛИНА\ ШИРИНА\ ВЫСОТА) 2300 - 2100 - 1300
GUARANTEED RESOURCE, 950 hectares
FUEL CONSUMPTION, l\ha 5.8 - 6.2

Disc harrow AGD - 2.1 mounted
Spring type
Gripping width, constructive, m 2.1 minus 0.1
Fuel consumption, l/ha 6.8 8.0...
Productivity during the main time
of time, ha 1.5...1.8
Depth of soil cultivation, cm 8...18
Working speed, km / h 8.0...12.0
Transport speed, km / h, no more than 20
Product weight (without accessories), kg 700 minus 20
Ground clearance, mm, not less than 300
Guaranteed resource, 1030 hectares.

AGD disk harrow - 2.5 mounted
Spring type
Gripping width, constructive, m 2.5 minus 0.1
Fuel consumption, l/ha 7.2 8.5...
Productivity during the main time
time, ha, not less than 1.8...2.2
Depth of soil cultivation, cm 8...18
Working speed, km / h 8.0...12.0(//tractor-service.com)
Transport speed, km / h, no more than 20
Weight of the product (without accessories), kg 820 minus 20
Ground clearance, mm, not less than 300
Service personnel, people (tractor driver) 1
Guaranteed resource, ha 1240

Disc harrow AGD - 2.8 mounted
Spring type
Gripping width, constructive, m 2.8 minus 0.1
Fuel consumption, l/ha 7.4 8.9...
Productivity during the main time
of time, ha, not less than 2.0 2.6...
Depth of soil cultivation, cm 8...20
Working speed, km / h 8.0...12.0
Transport speed, km / h, no more than 20
Weight of the product (without accessories), kg 1160 minus 20
Ground clearance, mm, not less than 300
Guaranteed resource, 1,600 hectares

Disc harrow AGD - 3.5 mounted
Spring type
Gripping width, constructive, m 3.5 minus 0.1
Fuel consumption, l/ha 9.6 11.0...
Productivity during the main time
of time, ha 2.6 4.2...
Depth of soil cultivation, cm 8...18
Working speed, km / h 8.0...12.0
Transport speed, km / h, no more than 20
Weight of the product (without accessories), kg 1350
Guaranteed resource, ha 1830

AGD disk harrow - 4.5 mounted
Spring type
Gripping width, constructive, m 4.5 minus 0.1
Fuel consumption, l/ha 11.5-13.5
Productivity during the main time
of time, ha, not less than 3.6 5.1...
Depth of soil cultivation, cm 8...18
Working speed, km / h 8.0...12.0
Transport speed, km / h, no more than 20
Weight of the product (without accessories), kg 1750
Guaranteed resource, 2200 ha.
AGD-5.6 mounted disk harrow
CAPTURE WIDTH, m 5.6
PRODUCTIVITY, ha 4.2 - 6.8
WEIGHT, kg 2450
WORKING SPEED, km 8 - 12
OVERALL DIMENSIONS, mm (LENGTH\ WIDTH\ HEIGHT) 2700 - 7500 - 1700
GUARANTEED RESOURCE, 2900 hectares
FUEL CONSUMPTION, l\ha 15.3 - 17.6
AGD-7.2 mounted disc harrow
CAPTURE WIDTH, m 7.2
PRODUCTIVITY, ha 5.5 - 8.9
WEIGHT, kg 3150
WORKING SPEED, km 8 - 12
OVERALL DIMENSIONS, mm (LENGTH\ WIDTH\ HEIGHT) 2700 - 7500 - 1700
GUARANTEED RESOURCE, ha 3770
FUEL CONSUMPTION, l\ha 23.0 - 26.4
