Wire straightening and cutting machine, straight cutting machine, Kyiv

The machine is correctly cut, for straightening and cutting wire:

The offer consists of:

- Electric drive extinguisher
- Machine for straightening and cutting fittings
- PSR 6000 rebar acceptance table

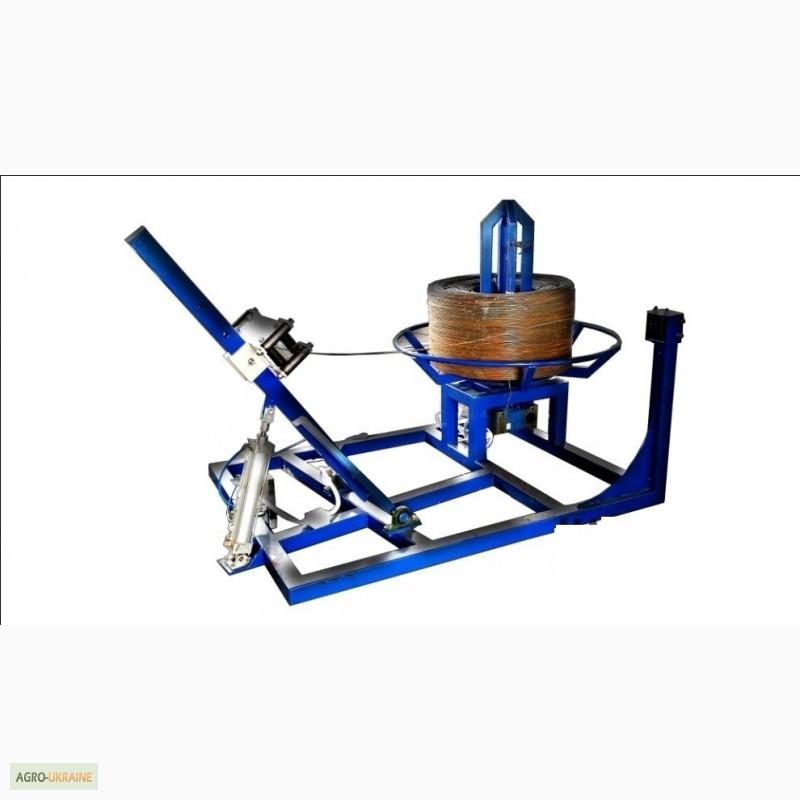

1. Electric drive choke

• Structure: the structure is made of welded steel
• Armature direction: From left to right.
• Wire coil size: Max. the weight of the coil is 1000 kg.
• Drive: Electric
• Power: 3-5 kW
• Dimensions: 1500x2000x1500
• Weight: 500 kg

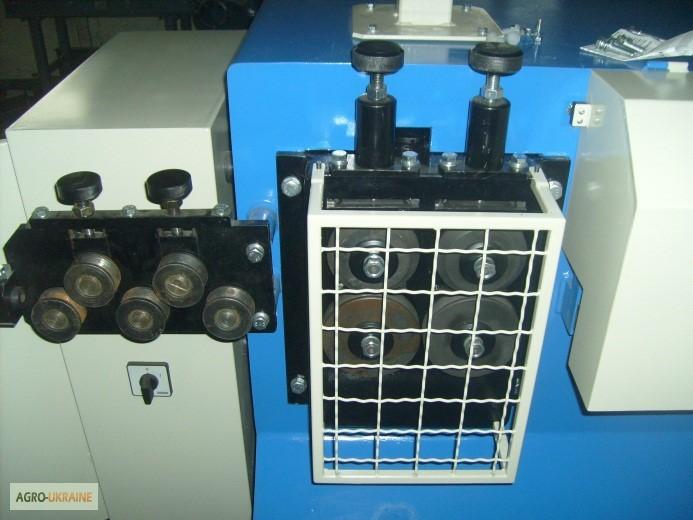

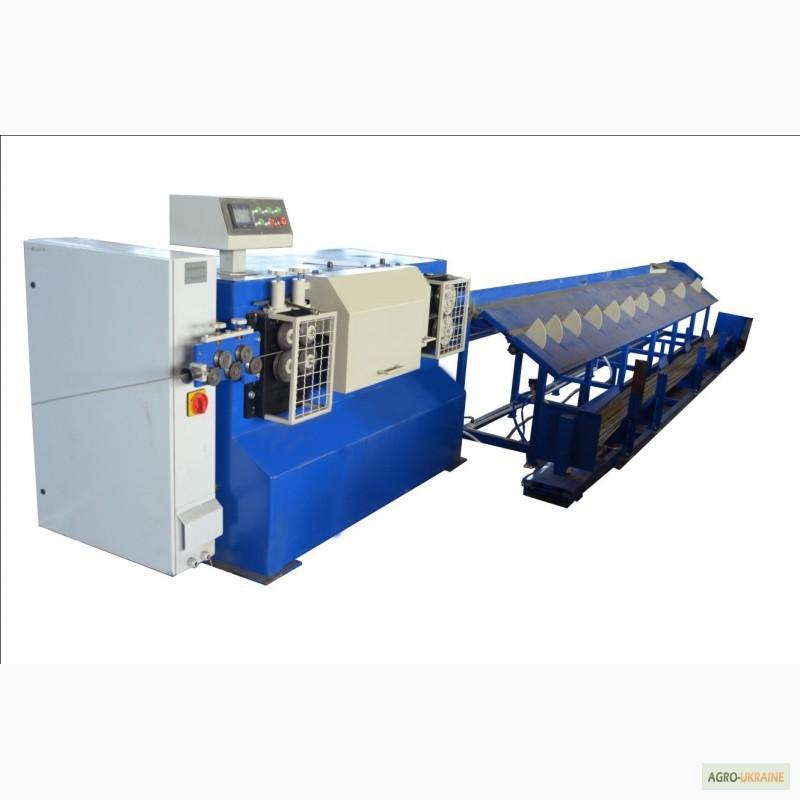

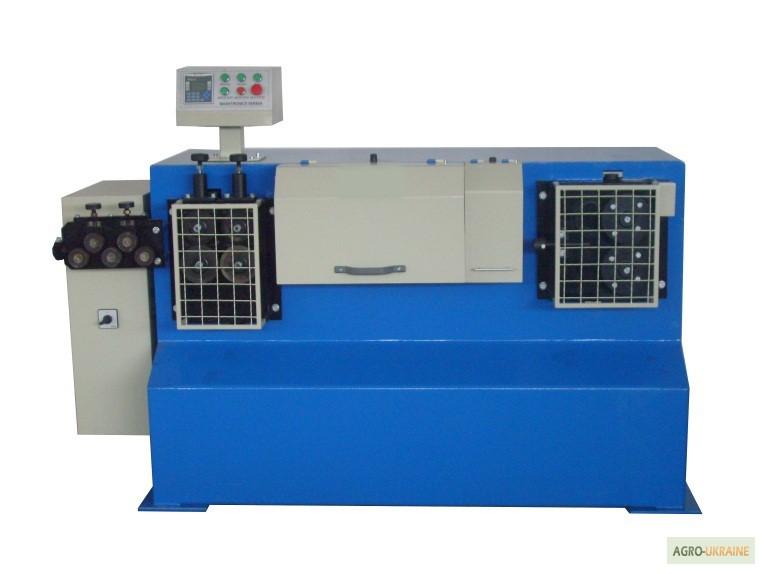

2. Wire straightening and cutting machine

• Structure: the structure is made of welded steel.
• Armature direction: From left to right.
• Drive type: Electric motor
• Power: 10-20 kW
• Weight: 1800kg
• Dimensions: 900x1800x800

Technical characteristics:
Wire diameter: 3-10 mm(//tractor-service.com)
Wire strength, no more than N/mm2 750
Drive rotation speed: m/min 80-100
The type of rectification is a rotor.
Total power, 10-20 kVA
Type of traction drive - electric motor
Permissible bending of serviceable armature % per 1 m.0.60%
Rotation speed of the rotor for straightening, rpm 3000
Armature cutting type - on the move
Total weight of the machine, 1800 kg.
Dimensions 900x1800x800 (mm.)

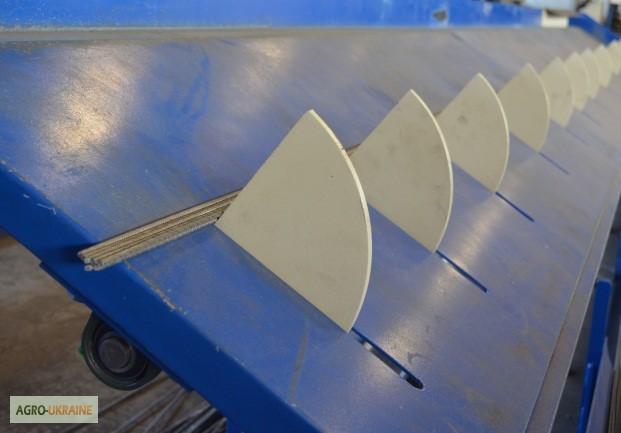

3. Table for receiving PSR 6000

• Structure: the structure is made of welded steel.
• Armature direction: from left to right.
• Max size of armature: 6000 mm
• Rebar Alignment: part for automatic rebar alignment
• Stages: Two stages

The warranty is 12 months from the moment the machine is put into operation.

Thanks to the use of European technologies, our equipment has a high index of durability and reliability.

Equipment is delivered exactly on time.
Over 20 years of reliable partnership.

The equipment works in Europe, Ukraine, CIS countries, Kazakhstan, South America, Arab countries and Africa.

To receive a commercial offer, please send an application to our e-mail address.
