Equipment for packaging, packing of charcoal, Kyiv

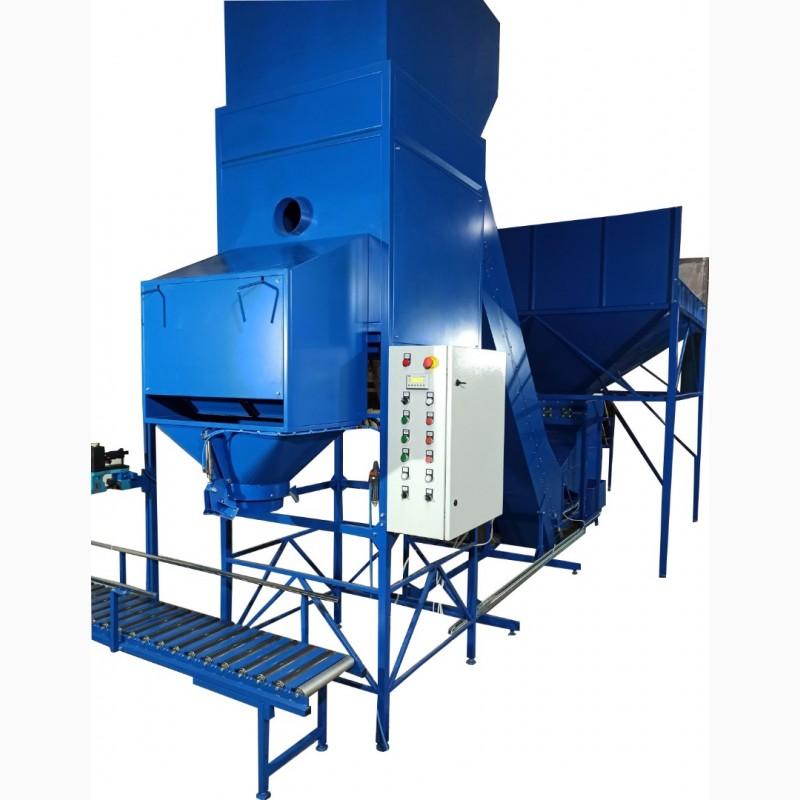

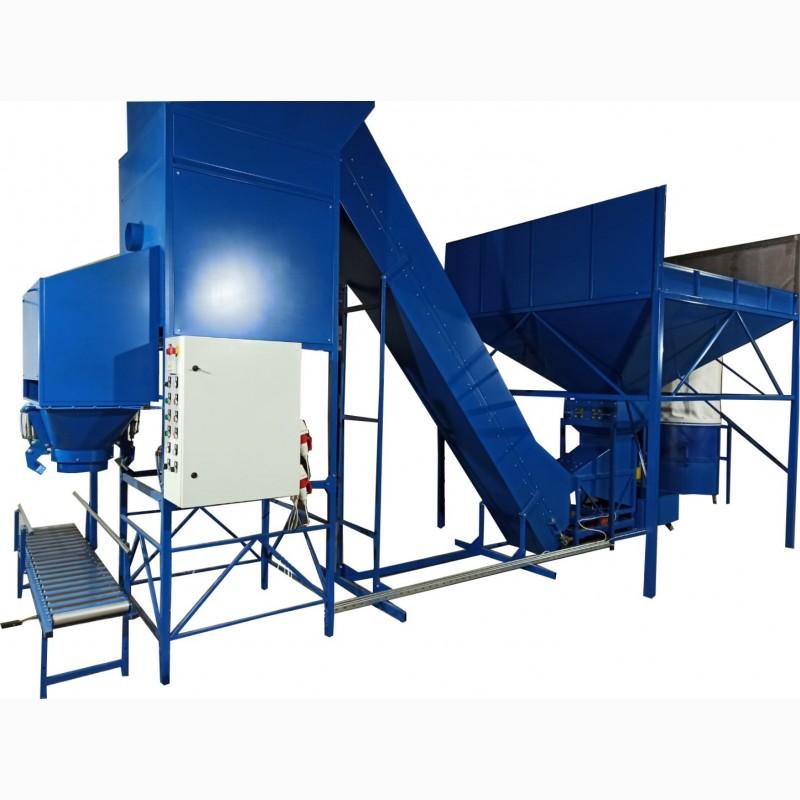

The line may include::

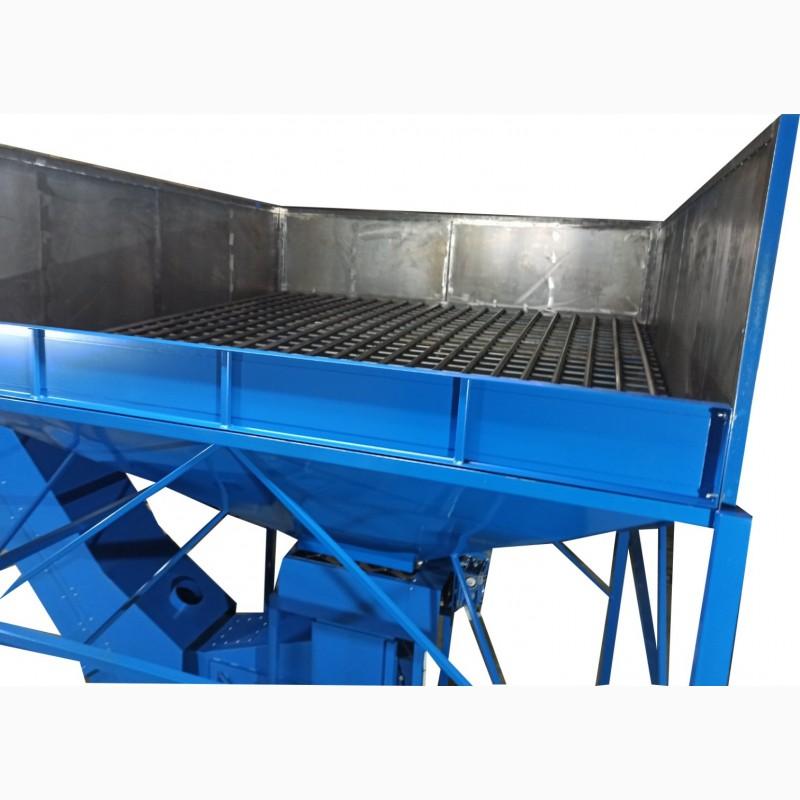

Loading hopper with vibrating tray (possible with perforation for sifting);

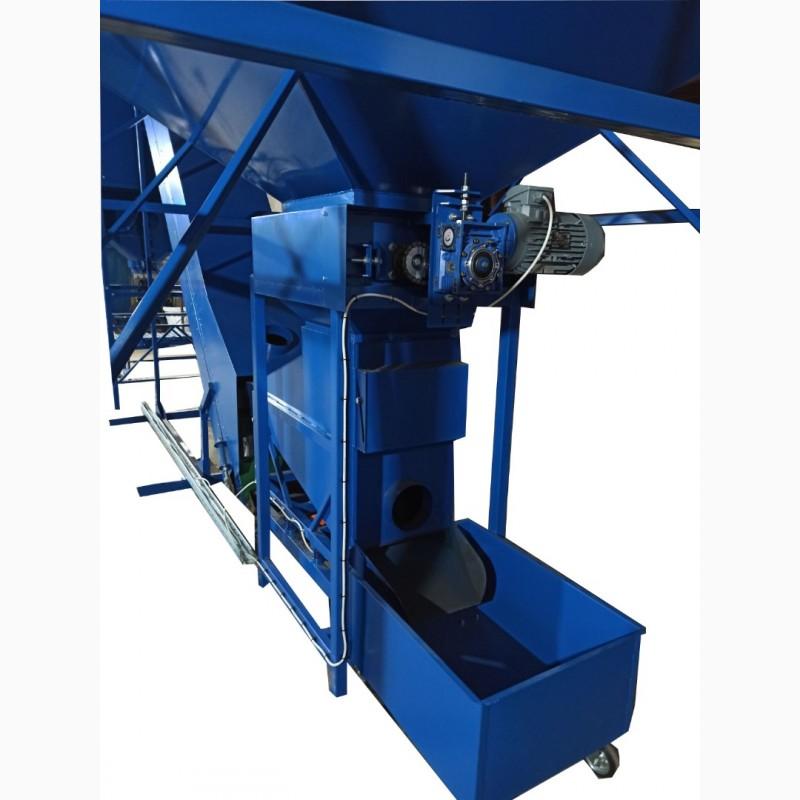

Bucket conveyor;
Semi-automatic dispenser with a hopper;
Dust removal (aspiration) system for 3 zones;
Discharge roller conveyor;
Bag sewing machine.
Technical features of the line:
Adjustable speed of the feeding conveyor.
Powerful ventilation unit.

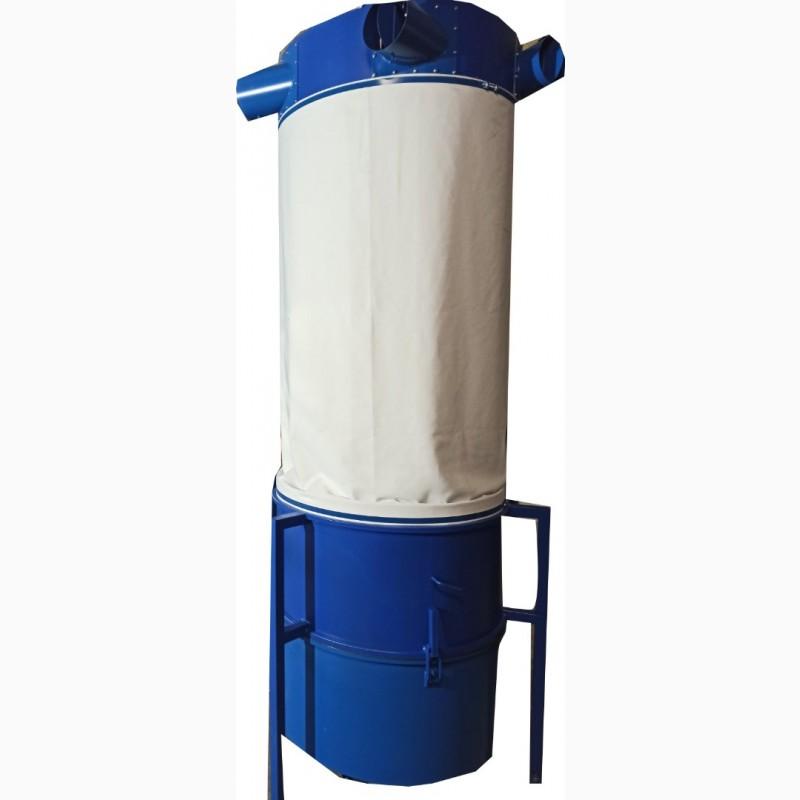

The dust collected by the aspiration system accumulates in the cyclone and can be reprocessed.
Dust removal zones are maximally closed, which prevents the spread of dust in the room where the dispenser is installed.
An elongated tray between the receiving hopper and the conveyor makes it possible to load the product into the receiving hopper in one storage room, and to pack and store the products in another. This significantly reduces the level of dust in the room, thanks to which dust does not settle on the bags with finished products.
Производится сортировка coal is sorted by fractions: more than 80 mm on the upper part of the neck; from 0 to 20 mm per throw; 20 - 80 mm - in a dispenser.
The lines are operated in Ukraine, Belarus, Russia and Europe.

Reviews and display at the request of the Customer.

Warranty – 12 months, post-warranty service.(//tractor-service.com)

Technical characteristics:
Productivity - 2000 kg/hour;
The mass of the dose is 1.0-10.0 kg;
Dose accuracy is +/-5%;
The method of forming a dose is by weight; The size of the package is according to the Customer's requirements;
Заполняемая емкость – пакет;
Размер пакета – согласно требований Заказчика;
Dosing material - woodcoal;
The size of the fraction is 20...80 mm;
The occupied area is no more than 30 square meters. (depends on the configuration and explanation);
Height - no more than 3800 mm;
The installed capacity is no more than 9 kW (depending on the configuration).
Crushing complex (technical characteristics):
Productivity - 2 tons/hour;
Input fraction - 0-200 mm;
Separation into fractions - 0-20 mm (goes to the sieve); 20-80 mm (goes for packing).
It is possible to divide into a larger number of fractions (upon agreement with the customer).
The type of crusher is roller.
The volume of the bunker is 6 m3.
