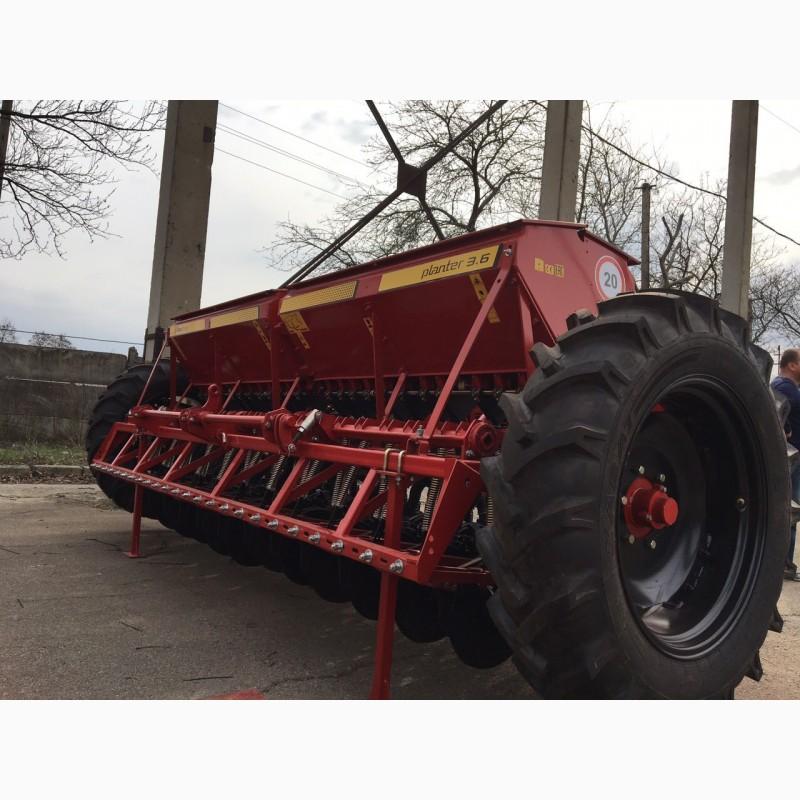

SZP-3.6B grain seed drill, Kirovohrad region.

Grain seeder SZP-3,6B

The SZP-3,6B grain seed drill is intended for regular sowing ofcereal seeds and leguminous crops with simultaneous application of granular mineral fertilizers and soil rolling after sowing.
The seeder is equipped with a variator for stepless adjustment of the rate of sowing seeds and fertilizer. The use of a variator provides a reduction in tuning time, increases productivity.
SZP-3.6M can be aggregated both in a single-seeder version (with tractors of traction class 1.4) and in a multi-seeder with the help of a hitch (with tractors of traction class 3 and higher), which allows creating wide-grip seeding units. Equipped with two-disc coulters. It can be equipped with bothrolling rollers and wrappers.
Coulters are made of Swedish Hardox steel, and can be made both in the usual version and with an offset center.
Main technical characteristics
Type of seeder - semi-trailer
Gripping width - 3.6 m
Number of lines - 24 pcs.
Row width - 15 cm.(//tractor-service.com)
Sowing rate, kg/ha (min.-max.):
Semyan - 10-400
Fertilized - 35-180
*Bunker capacity, dm3 (not less):
Grain department - 600
Fat department - 400
Working speed - 9-12 km/h
Productivity - 3.2-4.5 ha/h
Overall dimensions in transport position
(length×width×height) - 3985×3710×1850 mm
Structural weight (without seeds and fertilized) - 1900-2100 kg
