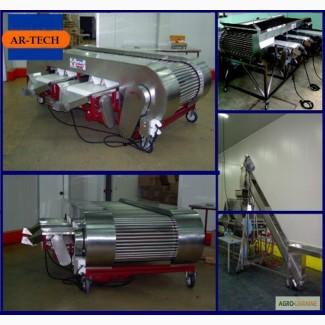

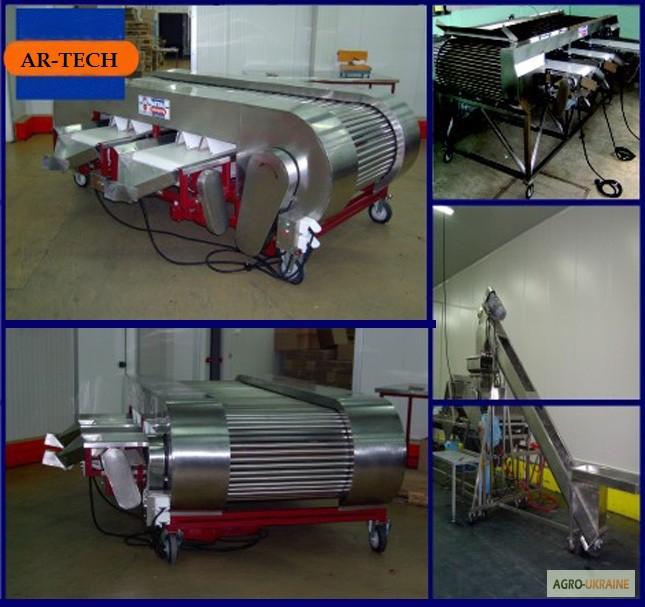

Machine for calibrating cherries, calibrating cherries, Transcarpathian region.

The slot-type roller calibrator is intended for sorting fresh and frozen vegetables andfruktov in size. To obtain a sorting range in accordance with the technical characteristics, it is necessary to set a certain height of the guide of the lower rollers and the unloading partition.

Principle of operation:
The installation of the guide rollers makes it possible to obtain the corresponding gap distance between the rollers, and with the help of the unloading partitions, the required caliber can be more accurately set. After uniform feeding, the product moves on rollers along the working canvas until it enters the discharge funnel through a slot of the appropriate size for it. The oversized variety moves along the working canvas to the end.

Complete set, characteristics:
The machine is intended for calibration of the following raw materials: cherry,cherry, cherry, plum,strawberry. The parts in contact with the product are made of acid-resistant stainless steel and comply with the following standards: BS, DIN, ISO. The frame is made of carbon steel.
The machine is mounted on four adjustable supports.

Technical parameters:
Calibrates the raw material in 3 sizes.(//tractor-service.com)
Productivity: 1-1.5 t/hour; 2.5 - 3 tons/hour
Number of calibration sections: 2,3,4
Caliber size adjustment: from 6 to 40 mm
Operating voltage: 380 V, 50 Hz.
Power consumption:
Calibrator drive: 1.1 kW, speed adjustment using a frequency converter.
Conveyor drive: 2 x 0.25 kW
Overall dimensions (L x W x H): 3450x2190x1195±55 mm.
Weight: 750-1000 kg.

The price is on request. Sincerely, AR-Tech company.
