Spring harrow TSL 24 Spring. hydrofed, has two positions, working and transport, is used in crop production for harrowing of tillage, pre-emergence and post-emergence harrowing, filling of mineral

Борона пружинная TSL 24 Spring рабочей шириной зазхвата 24 метра и гидрофицированная , имеет два положения , рабочие и транспортное, применяется в растениеводстве для боронования пахоты, до всходового и после всходовового боронования, заделки минеральных fertilized, sealing of moisture, collection ofstraw, hay in bales. The harrow is aggregated with tractors with a power of 130 hp. Working bodies of TSL Spring 24 are interchangeable with similar working bodies of Ukrainian manufacturers, as well as
universal wheel tread for installation on a spring harrow
On the tension cables, a licensed crimp is applied in the places of attachment, which allows it to withstand all kinds of loads.
Two positions - working and transport, which allow moving the spring harrow without using additional means. Adjusting the angle of attack of the teeth to the 6th position makes it possible to change the depth of loosening from 2 to 9 centimeters.

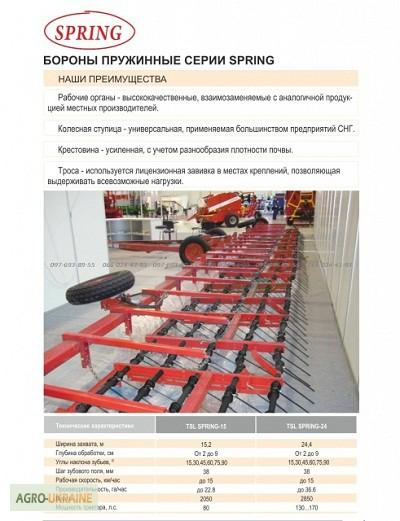

Working width, m 24.4 Productivity (ha/hour) not less than 36.6(//tractor-service.com)
Working speed for basic operations up to 15
Depth of loosening (cm) from 2 to 9
Mass of the unit, kg 2850
Attack angle 15, 30, 45, 60, 75, 90
The TSL Spring 24 harrow is aggregated with tractors with a capacity of 130-170 hp.
