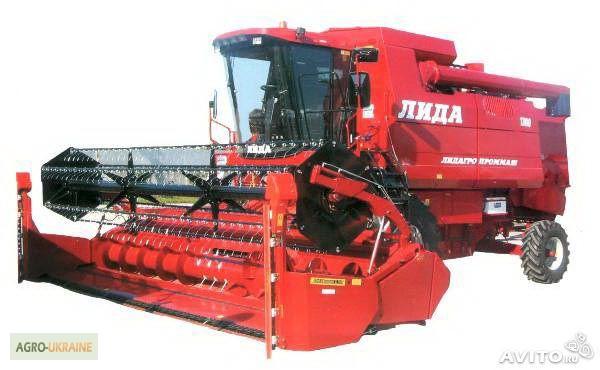

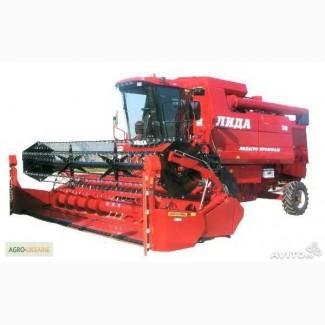

Combine machine Lida-1300 we are official dealers in Ukraine.
Technical characteristics
Engine
Engine power, kW/hp (at the request of the customer, engines of the Minsk Motor Plant or Cummins are available) 184/250
Number of cylinders 6
Fuel tank, l 520
Hydrostatic undercarriage drive
Reaper
Gripping width, m 6.00
Speed of mower blades, m/s 1.71
The rotation frequency of the hydraulic drive of the reel, rpm 14-45
Threshing and separation
Z-drum threshing-separating system Standard
Threshing channel width, mm 1 300
Diameter of threshing drum, mm 600
Diameter of the rebound beater, mm 395
Diameter of the separating drum, mm 570
The area of the drum, m2 0.81
Deck area of the separating drum, m2 0.93
(//tractor-service.com)
The area of the graduation comb, m2 0.16
The frequency of rotation of the threshing drum, rpm 640 -1 240
- with gearbox, rpm 314 - 605
Straw shaker
The number of keys is 5
The number of degrees of difference is 4
The area of the straw shaker, m2 4.60
Total separation area, m2 6.50
Cleaning system
3-stage cleaning system Standard
Lower/upper grating Jalousie gratings
Grain bunker
Grain bunker capacity, dm3 6,300
Duration of unloading, min 1.6
Angle of rotation of the unloading auger, ° 107
Dimensions and mass
Width in transport position, m 3,700
Height, m 4,000
Length without
harvester, m 8,150
Weight without harvester, kg 10,830
