Mobile concrete plant SB-15 (15 m3/h), Kyiv

Mobile concrete plant SV-15 is designed for the production of high-quality concrete and concrete mixtures, with a volume of 15-20 m3 per hour.

The exact performance indicators of the plant depend on the type and brand of concrete produced, as well as on the inert materials used in the production of concrete, cement and the amount of chemical additives.

The mobile concrete plant is equipped with a convenient automatic plant control system. The modern Siemens computer system allows the production of 25 recipes and types of concrete.
It is possible to print each ready-mix mixture in kilograms and percentages of materials or cement during the preparation of the concrete mixture.

The basic configuration of the plant includes the following elements:

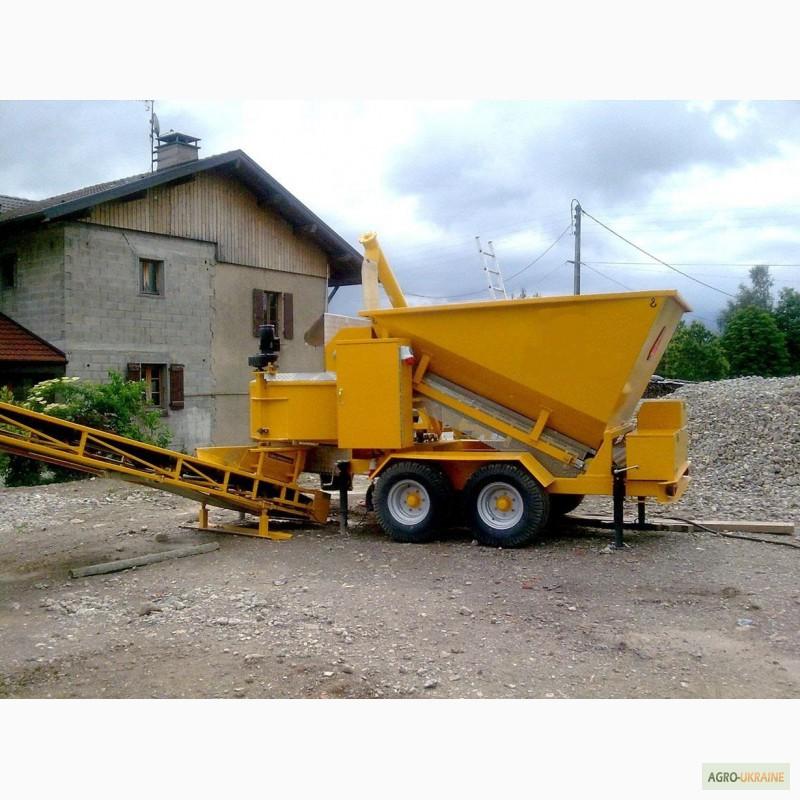

1. Fully automated mobile concrete batching plant, 15-20 m3 per hour. Located on a wheeled chassis.

2. Bunkers of inert materials, 2x3.5 m3

3. Sensors for weighing inert materials. Located under the pan-mixer. Dosing accuracy +/- 100 g. SIEMENS - Germany.

4. Conveyor for supplying inert materials from hoppers to the mixer, incl. electric motor.

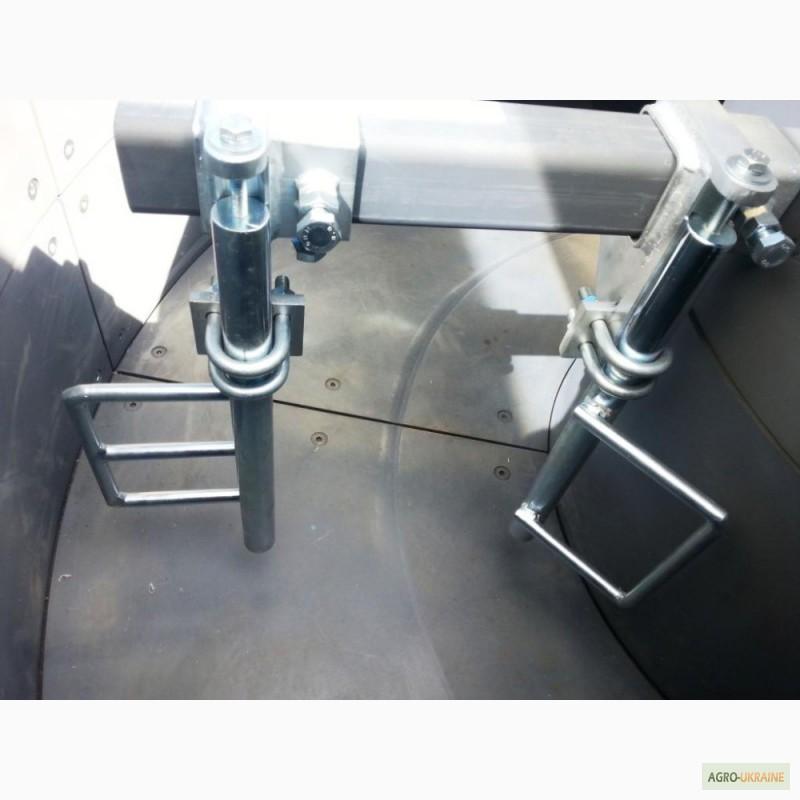

5. Pan-mixer 1200/750 liters, covered with a 12 mm layer of special steel. 5 quick-removable paddles with fiberglass tips. Ready-made concrete feed valve that opens automatically.
(//tractor-service.com)
6. Galvanized water tank, 250 liters, with built-in DANFOSS pump and water dispenser.

7. Air compressor 10 BAR

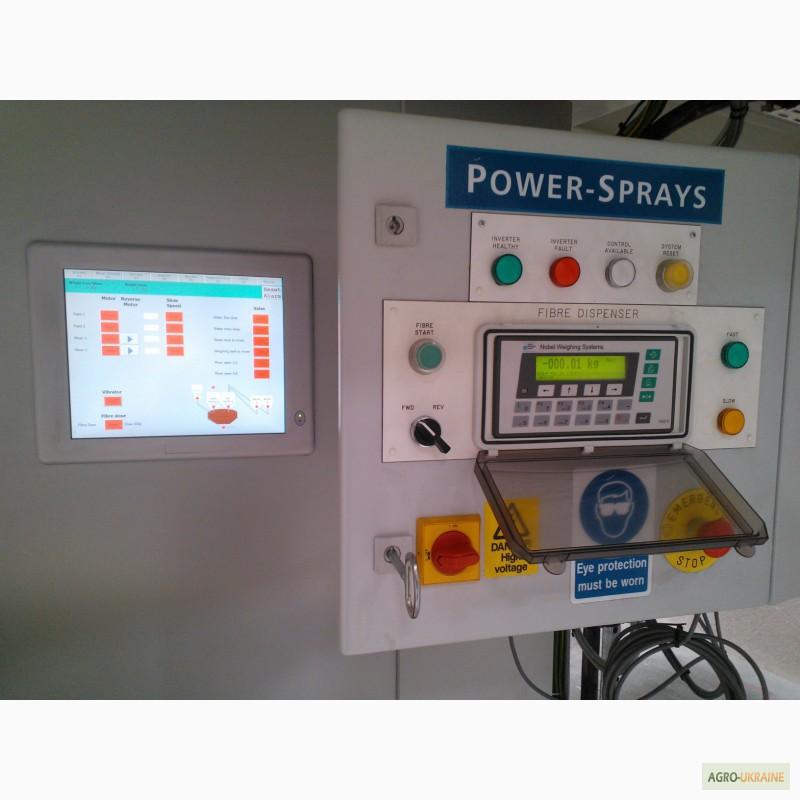

8. The control panel of the mobile concrete plant. Manual control keyboard. Easy touch screen of the Siemens automatic plant control PC. 25 grades of concrete with the ability to change the brand of concrete before each batch. A printer with a printout of the mixture of the finished batch in KG and %. Indicators per batch, hour, shift, month.

9. High-pressure compressor 160 BAR for cleaning concrete plant

Add. options:

Cement supply auger, diameter 190 mm, length 4.5 meters. Electric motor 5.5 KW. Built-in cement dosing receptors

Conveyor for supplying ready-mixed concrete from a mixer. Length 10 meters, width 1 meter.

Cementsilo, 30-100 tons (including level indicators, filter, stairs, fence, etc.).

Pump of chemical additives withhose with automatic control from PC.

To receive a commercial offer, please send an application to our email address.
