Pneumoraspredelitel P-RE 2/16.1, P-RE 2/16.2 uhl4, P-RE 2/16.A1, P-R 2.1, P-R 2.2, 5, Kharkiv region.

Pneumodistributors two-line with electromagnetic control
at Pnom=0.08 Mpa
P-RE 2/16.1 (with connector)
P-RE 2/16.2 (with cable)
P-RE 2/16.1 without coil
P-RE 2/16.2 without coil
Two-line pneumatic distributors
with electromagnetic control at Pnom=0.63 MPa

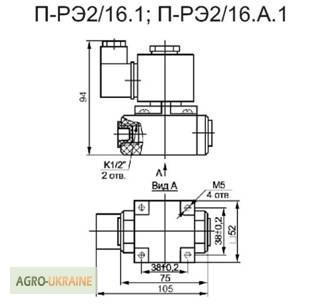

P-RE 2/16.A1 (with connector)
P-RE 2/16.A1 without coil
Membrane with a spring
Two-line pneumatic distributor with electromagnetic control
P-RE 2/3.00.000
Two-line pneumatic distributors with electromagnetic control
П-П 2.1 (Ду1) thread C 1/8" (without connector)(//tractor-service.com)
П-Р 2.2,5 (Ду2,5) thread C 1/8" (without connector)
P-P 2.16 (Dy16) thread K 1/2"
P-P 2.25 (Dy25) thread K 1"
Р-Р 2.40 (Dy40) (distribution Р-РЭ 3/2.5, PKR-211-40) thread M48х2

Pneumodistributors P-RE-2/16.1, P-RE-2/16.2, P-RE-2/16.A1 belong to the 2/2 (two-line, two-position) valve type distributors and serve to pass/block the flow of compressed air in one direction.
П-РЭ-2/16 pneumatic distributors work in any mode and for the duration of operation in accordance with GOST 19264-82 on compressed air, no coarser than 9th pollution class according to GOST 17433-80, with the addition of sprayed lubricant (1...2 drops of oil/1 m³ of air, viscosity from 10 cSt to 35 cSt), reduced to normal conditions (temperature +20°С, pressure of 0.1 MPa).
Resistance to vibration effects of P-RE-2/16, P-RE-2/16.A1 valves corresponds to grade 2 according to GOST 28988-91

Pneumodistributors PRE-2/16 consist of a base made of polymer materials, with an electromagnetic coil installed on it, which ensures the opening of the valve during its operation (supply of a control electric signal to the coil).
Execution of distributors according to the scheme: normally closed. Connection to pneumatic network: threaded.
Connection to the electrical network: through a connector, for P-RE-2/16.1 and P-RE-2/16.A.1 pneumodistributors or an oil seal, for P-RE-2/16.2.
