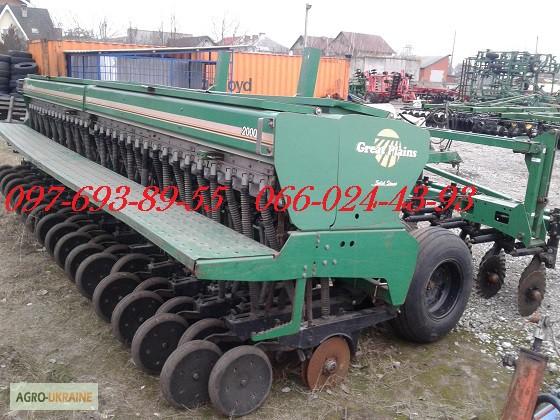

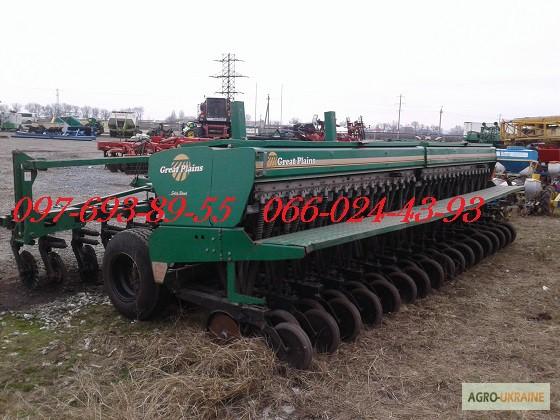

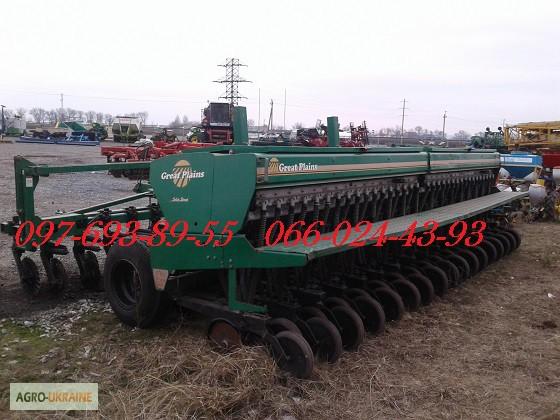

Great Plains CPH-2000 seed drill, Dnepropetrovsk region.

Seeder grain Great Plains CPH-2000 no till , 6 m old, 2005 production.
Seeder Great Plains CPH-2000 mechanical seed drill with zero and minimal technology for sowing all types of grain crops with simultaneous application of mineral fertilizers.
Features:
- Disk knives are arranged in a checkerboard pattern with hydraulic pressure regulation on the soil;
- The design with a hinged trailer device ensures the exact observance of the trajectory of the disc knives and openers;
- The design of the parallelogram mechanism provides a large vertical stroke of the coulter for soil copying;
- Turbo knife;
- The possibility of applying fertilizers simultaneously with sowing.
Technical characteristics:
The model name is CPH-20F
The working width is 6.1 m. The width of the row is 17.78 cm.
Number of coulters 34 pcs
Sowing depth up to 9 cm
The fertilizer application system is installed.
Tank volume 1700 l(//tractor-service.com)
The working stroke of the coulter is 28 cm.
The pressure of the coulter on the soil is up to 82 kgf.
The depth of the furrow of the disk ripper knife is up to 15 cm.
The pressure on the soil of the disk ripper knife is 203 kg.
The weight of the seeder is 4715 kg.
The minimum required power of the tractor is 170 hp.
F
Brand GREAT PLAINS
Model Great Plains CPH-2000 grain seeder, 6 m. (USED)
Seeding depth 90 mm
The width of the capture is 6 m. 166
Количество рядов34
Width between rows 17.78 mm
The volume of the bunker is 1700 l.
The required power of the tractor is 170 hp.
