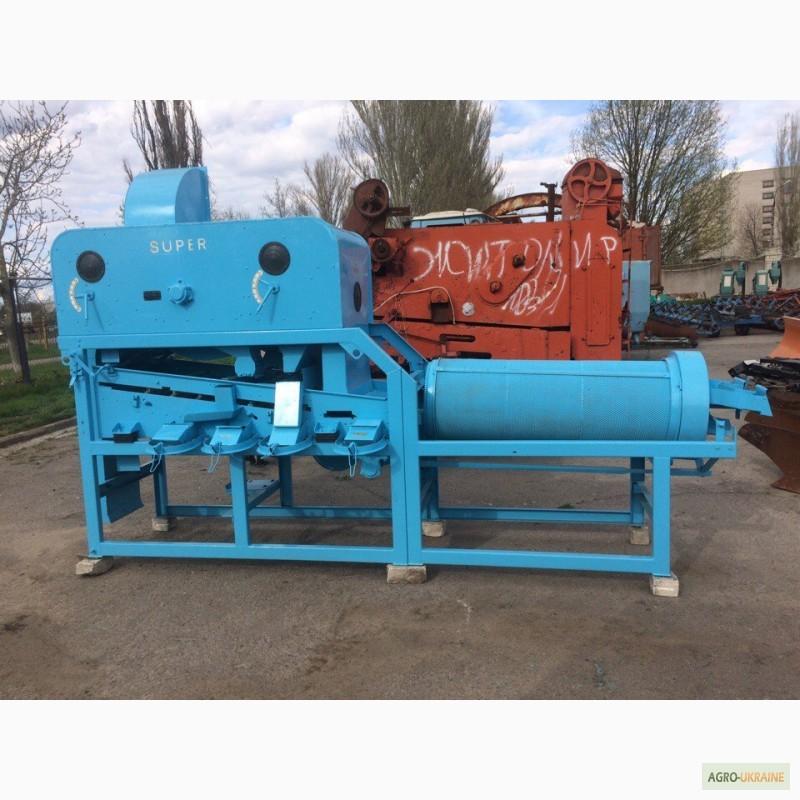

Petkus K-541 Super used overhaul, Kherson region.

Petkus K-541 (Super) is a grain cleaning and sorting machine designed for cleaning and sorting grain and vegetable seeds from various impurities, stubble and crushed grain, weeds. This is a small, functional device that allows accurate cleaning and sorting of seeds to obtain quality seeds for sowing. Petkus "Super" is equipped with a special convenient funnel, thanks to which it is easy and quick to load raw materials directly from the bags. The elevator sends the grain to the upper sieve, where it is cleaned of light fine particles with the help of air flow. The upper sieve removes large sor. The sieve itself is cleaned with the help of dusters. After cleaning, the grain is sent to the trier cylinder for further cleaning or immediately to packaging. The trier cylinder is necessary in order to rid the raw material of broken grain or weed seeds - they are removed separately.
Productivity:
seed cleaning - 1.25 t/hour
primary cleaning - 1.75 t/hour
Features:
Working width mm ………. 630
Surface of grates m2 ………. 1.25
Amount of air 1 m3/hour ………. 4400
Amount of air 2 m3/hour ………. 5800
Drive motor kW ………. 3.0
The number of revolutions per minute ………. 1450
The number of revolutions of 1 fan rpm ………. 900
The number of revolutions of 2 fans r/min ………. 1100
The number of revolutions of trier cylinders rpm ………. 35(//tractor-service.com)
The number of grating surfaces pcs ………. 2
The upper sieve pcs ………. 1
The lower sieve pcs ………. 1
Cleaning of the upper grates by the squeegees
Cleaning the lower grates of the brush
The number of trier cylinders pcs ………. 1
Overall dimensions:
Length mm ………. 4717
Width mm ………. 1325
Height mm ………. 2100
Height with outlet for cyclone mm ………. 2473
Air exhaust system
The diameter of the aspiration connection pipe mm ………. 450
Cyclone (to order) FKA ………. 1250/1600
