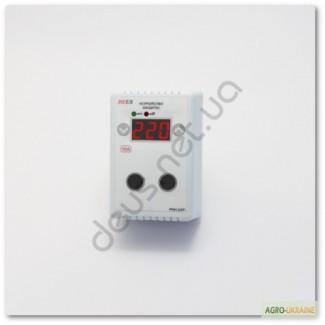

Voltage relay (protection device) (10A 2kW), Dnipropetrovsk region.

Voltage relay (protection device) (10A|2kW)

Description of the voltage relay:
The voltage relay is intended for disconnecting industrial and household loads in the event of unacceptable voltage fluctuations (surges) in the network with automatic reactivation after normalization of the network parameters.

The device is equipped with a 10A relay, which allows you to connect a load of up to 2 kW (example: refrigerator, washing machine, TV, computer, laptop, microwave oven, etc.)
The voltage relay has a 3-digit digital indicator, which in standby mode constantly shows the current voltage in the network.
The voltmeter calibration function is also present.

How it works:
For operation, it is necessary to set two values (values), an upper threshold and a lower threshold (by default: Umin=175V and Umax=253V), respectively, when it exceeds the set limits, the relay turns off the load connected to it.

Recommended:
When connecting to the refrigerator's voltage relay, it is recommended to increase the switch-on delay to 480 seconds;
The device is intended for indoor installation. Normal operation of the voltage relay is guaranteed at ambient temperature from +3°C to +50°C and relative humidity from 30% to 80%.

Main characteristics
-Maximum connected load 10A(2kW)
- The installation range for the lower limit, V 130...210
- The range of installation for the upper limit, V 225...280
- Supply voltage, V 100...400
- Critical input voltage, V 630
-Consumed power, W 5
-Turn-on delay, sec 0, 10, 60, 480
- Factory settings
-Lower threshold Umin,, In 175
- Upper Umax threshold, В 253(//tractor-service.com)
-Delay time for turning on tinclude, sec 10
-Dimensions
- Width, mm 53
-Length, mm 82
-Height, mm 79
- Mass, g 0.150

Additionally
Manufacturer DEUS (Ukraine)
Warranty: 12 months from the moment of purchase.
