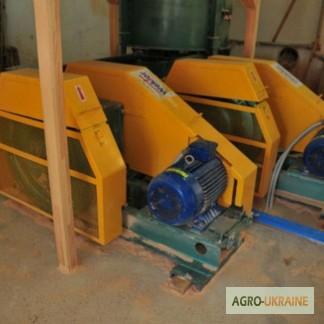

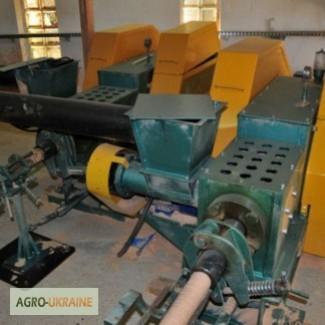

Percussion mechanical press for briquettes Vector (500-600 kg/hour), Poltava region.

Technical characteristics of BT-60(Poland)

1 Productivity - sawdust kg/h 500-700
2 Productivity ―straw kg/h 350-500
3 Allowable humidity % 12
4 Degree of compression - as the volume of dry raw materials to the volume of briquettes K ----
5 Briquette diameter (standard version) mm 60
6 Briquette length (random, adjustable) mm 25-200(//tractor-service.com)
7 Power of the engine of the main drive kW 18.5
8 Engine power of the briquette press worm drive kW 5.5
9 Type of lubrication of bearings, main shaft, bushings, connecting rod, conductor - forced lubrication
10 Type of oil - superol
11 Oil volume dm3 40
12 Oil pressure mPa 0.6
13 Type of oilpump ― Toothed
14 Lubrication of other elements - plastic grease
15 Size - length x width x height mm 260x950x1100
