Nasos elektricheskii Vorskla BCN 1, 1-18U1, 1M sell wholesale and retail, Kharkiv region.

Nasos elektricheskii Vorskla BCN 1,1-18U1,1M for sale wholesale and retail
Designed for supplying water from reservoirs and tanks for watering gardens and orchards. Working positionpump - vertical.

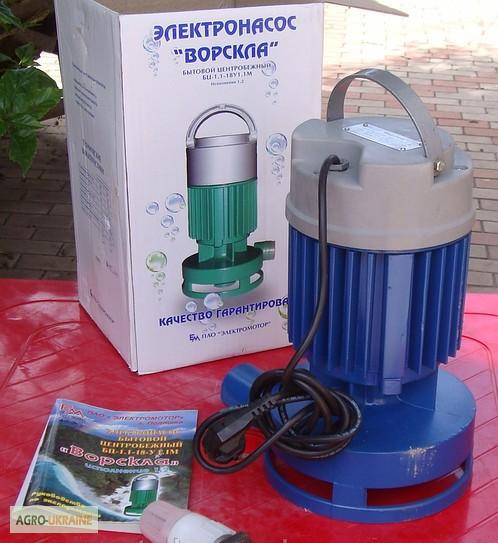

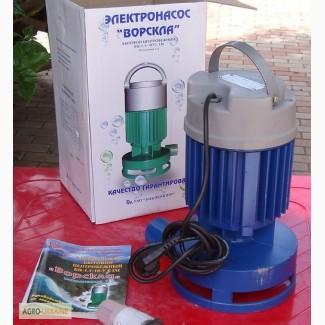

The electric pump BCN 1.1-18U1.1M "Vorskla" is a monoblock consisting of an electric motor with a capacitor attachment and a pump part.
The pump is connected to the mains using a wire with a plug that has a grounding contact and a socket with a grounding contact.
The body is equipped with an end seal with a resource for the entire service life of the pump. Along the line of the shaft, the seal is provided by a rubber ring.
Closed-type bearings are used in the electric pump.
Interchangeable rubber rings are used to seal the pump chamber and ensure splash protection of the condenser.
To protect the engine in emergency conditionsthe working pump is equipped with a protective relay.
The design of the pump provides a handle for transportation.
The seal is installed on the head of the screw that fastens the cover.
The lower and upper limit of the ambient temperature is from 1 to 45 degrees C,
the upper value of relative air humidity is 98% at a temperature of 298 K (25 degrees C)
Height above sea level no more than 1000 m.
Electric motor of the pump - asynchronous single-phase capacitor
Asynchronous 2-pole motor
Insulation class F
Protection class IP 54
1~220V 50Hz
Automatic thermal protection installed(//tractor-service.com)
Suction nozzle - G 1 1/4"
Discharge nozzle - G 1 1/4"
Structural characteristics
Aluminum pump body, engine
External ventilation
Workingwheel from aluminum
Mechanical end seal made of graphite.
Volume supply at nominal total pressure, m3/hour - 4
Head, - 18m
The maximum pressure, - 22m
The greatest depth of suction is 7m
Consumed power - 720W
Network voltage - 220V
Synchronous rotation frequency, rpm - 3000
The outer diameter of the pump max - 205 mm
Mass, no more - 11.5
The set includes an electric pump with a connecting cord, a reverse valve.

Delivery - Cash on Delivery "New Post" UkrPochta, Intime, Your Variant
