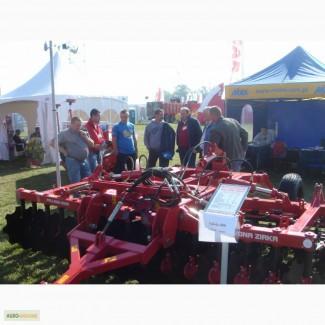

Semi-trailer harrow Pallada Pallada 4000 (4 meters), Dnepropetrovsk region.

Disk Pallada 4000 (BDP-4000) (trailer). Each harrow disc of the Pallada harrow Pallada 4000 (4 meters) is installed on an individual stand, which allows the harrow to work in fields with a large amount of plant residues and weeds, excluding the winding of plant residues on the axis of the disk and clogging of the space between the disks, and also ensures high maintainability of the unit. The design of the unit provides smooth adjustment of the angle of attack of each row of disks within the range from 0° to 30°, which allows you to optimally adjust the harrow for different types of soil.
The trail roller is intended for mixing plant residues with the ground, leveling and compacting the soil. The harrow can be equipped with a flat or spiral trail-roller. The hydraulically foldable frame allows you to reduce the transport width to 2.88 m.
Productivity ha/hour up to 4.8
Working speed km/h up to 12
Transport speed, km/h up to 20
Width of capture m 4
Processing depth mm 80-180
The angle of attack of the disks degrees. 0...30
Number of rows pcs. 2
Number of cutting units pcs. 30
Distance between rows of disks mm 950(//tractor-service.com)
Diameter of working bodies mm 560
Distance between disc blades mm 250
Overall dimensions mm
- in working position 4900x4110x1295
- in transport position 4555x2880x1565
Structural weight kg 2130
Tractor power (not less) hp. so 150
