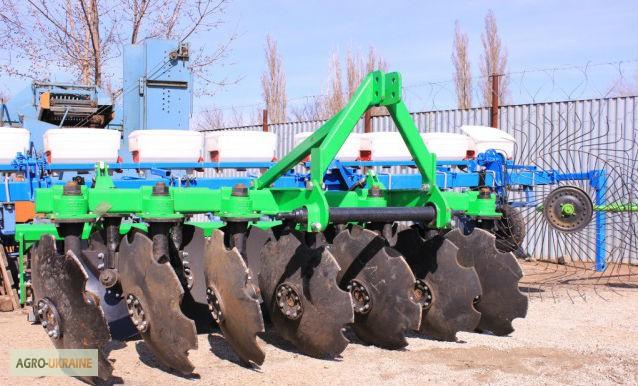

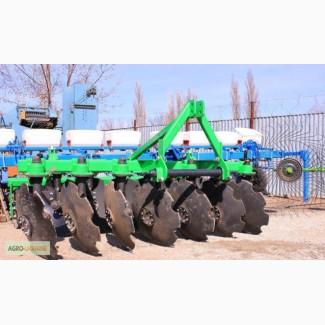

Plowdisc hinged PD 2.2 (1) Veles - Agro (equipped with discs from boron steel) Plows Veles Agro disc harrows of the PD series are intended for the preparation of soils, not clogged with slate and other obstacles, for sowing grain and industrial crops by loosening the field surface to a given depth with a specific soil resistance of up to 0.9 kg/cm², hardness of 35 kgf/cm² and humidity of up to 27%. In one pass, the harrow grinds and compacts plant residues, crumbles and levels the field surface, and compacts applied fertilizers.
Rolling rollerroller with stepless adjustment of processing depth
Type of unit in the spring.
Width of capture (m) 2.2
Productivity (ha/h) 1.5‒2.2
Working speed (km/h) 8‒10
Processing depth (cm) 8‒20
Angle of attack of discs (degrees) 16...20...24
Number of working bodies (pieces) 12
Diameter of the disk of the working body (mm) 640(//tractor-service.com)
Transport speed, no more (km/h) 20
Dimensions see below.
Length (mm) 2180
Width (mm) 2430
Height (mm) 1230
Unit weight (kg) 1050
Required power of the tractor (hp) 80‒90
Tractor traction class 1.4‒2.0
Delivery is always available in Dnipropetrovsk. Guarantee!.
Author, contacts
Vladimir Maistrenko / feedback, info. / activity evaluation
