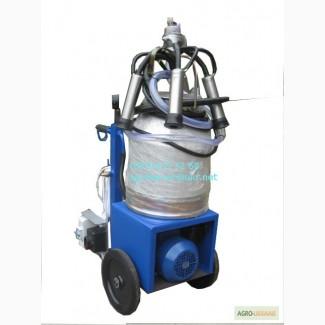

AID-1 individual milking device (oil pump, stainless steel cups), Luhansk region.

AID-1R individual milking device (oil pump)

Ideal for servicing up to 10 cows.

By purchasing a milking machine from the "AGROSEVER" company, you receive high-quality service support, consultations and guarantees from the manufacturer of milking machines. This will save your time and money. Also, absolutely all spare parts for milking machines are always available.

Characteristics of the AID-1R milking machine

The number of milked cows per time is 8-10 heads.
The time for milking one cow is 5-6 minutes.
Material of glasses Stainless steel, solid without cup holders
Materialpump Cast iron
Protection against milk getting into the pump is available.
Overvoltage protection is available.
Engine power 0.75 kW
The pump capacity is 4.5 cubic meters per hour.
AIR UT A2 SU engine (Poltava)
The ambient temperature is not less than +5°C
Network voltage 220 +-5%, up to -10%
Engine speed 2880 rpm
Used oil Industrial I12A or I20A ("spindle")
Type of milking machine Two-stroke
Type of vacuum pump Masliany circulation type, textolite blades
Working vacuum pressure
47 kPa (0.48 kgf/cm2)

Total weight, no more than 35 kg.
Manufacturer Kharkiv, Ukraine
Warranty 12 months for the pump, 6 months for the electric motor.

Description:

The AID-1R milking unit is primarily intended for milking cows, goats, sheep and buffaloes in private auxiliary farms (depending on the type of animal, the unit is equipped with the appropriate milking equipment).

The milking apparatus is also called a milking machine, a milker, a milking unit, a milking installation.

The operation of the milking unit is based on the principle of suction of milk by the milking apparatus from the cistern of the cow's teat under the action of a vacuum created in the pipeline system by a vacuum pump.

The device for milking cows works according to the two-stroke principle, with air suction into the collector, with a pulsation frequency of 66 (+-6) pulses per minute. Each pulsation consists of a compression cycle and a suction cycle. The pulsator in the interwall chamber of the milking cup alternately creates vacuum and atmospheric pressure, which causes teat pulsationrezyny.

Since the AID-1R milking machine has an oil pump, it is necessary to monitor the oil level in the oil pan. It is also worth noting that the main part of the oil is not thrown out through the muffler, but returns back to the oil pan, so the oil consumption is very small, the main thing is to monitor the level. The oil level in the oil pan should be 5-10 mm below the groove of the fitting with the wick. In human terms, 10 mm from the bottom of the oil pan or a finger, but no more.(//tractor-service.com)

How to wash and clean the milking machine:

It is necessary to wash the milking equipment regularly. The quality of milk directly depends on the cleanliness of the milking machine. In order to wash the milking equipment, you just need to fill a bucket or basin with washing-up liquid and lower the milking equipment (glasses) into it. Turn on the milking machine and wait until the hoses are washed. After this, the procedure should be repeated with ordinary warm water in order to wash off the solution and soap foam. I just wash the milking bucket as usual.

How to teach a cow to machine milking:

Before switching to machine milking, the cow should be accustomed to the appearance and noise created by the milking machine. To do this, within 1-2 days, simply place the milking machine in a visible place (for the cow) and milk manually. In the next 1-2 days, turn on the device, but continue to milk the cow manually. After that, you can try milking a cow with a milking machine. It should be noted that animals react differently to the milking apparatus. Some cows get used to the milking machine more slowly than others and it will take more time to accustom them. In the first time, when milking with a milking machine, a decrease in milk yield and milk yield may be observed, also in the first time, it may be necessary to feed the cow manually after milking with the machine.

In any case, over time, any animal will get used to it and milk will return to normal.

How to milk with a milking machine:

Wash the udder with warm water and massage. Take the collector (with the valve down) with one hand so that the glasses hang freely. Milk hoses on each nipple rubber must be bent to facilitate this task, you can install special clamps on these hoses. Open the valve, as for milking, the pulsator will start working, you will understand it by the sound of pulsations. Next, alternately put the cups on the nipples, bending the hoses or opening the clamps if they are standing.

Slightly lift the collector up, pressing the cups to the udder, make sure that they firmly hold on the udder. Then make sure that milk flows into the bucket through the transparent milk hose. That's all, nothing complicated.

The video below clearly shows how to milk with a milking machine.

Important!

The milking machine should be turned off immediately after the end of milk flow through the transparent hose. Overstaying the milking machine is categorically not recommended, it can damage the health of the animal.

Do not tear glasses from the udder while the device is working. In order to remove the cups, you need to pull the valve of the collector, the vacuum will disappear and the cups will be freely removed from the udder.

Do not exceed the recommended vacuum pressure (see the table with characteristics), this can also harm the cow. Monitor the pressure and adjust it using a vacuum regulator.

Maintenance of the lower apparatus.

Daily:

Check the oil level in the oil pan, the correctness of the electrical wiring, the value of the vacuum pressure during milking.

Once a month:

Cleans the device from dust and dirt, as contamination of the pump or engine fins can lead to their overheating. They will check the reliability of all threaded connections.

Once an hour:

Flush the pump and oiler wicks with diesel fuel. Wash the muffler with kerosene.

If you follow all these simple rules, the AID-1R milking machine will serve you for at least 10 years without major repairs.
