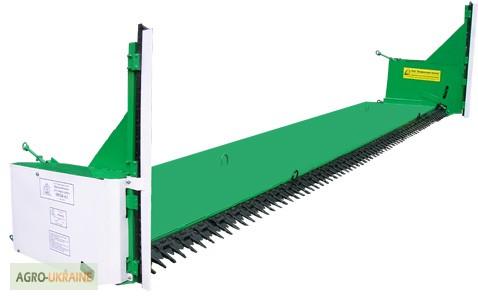

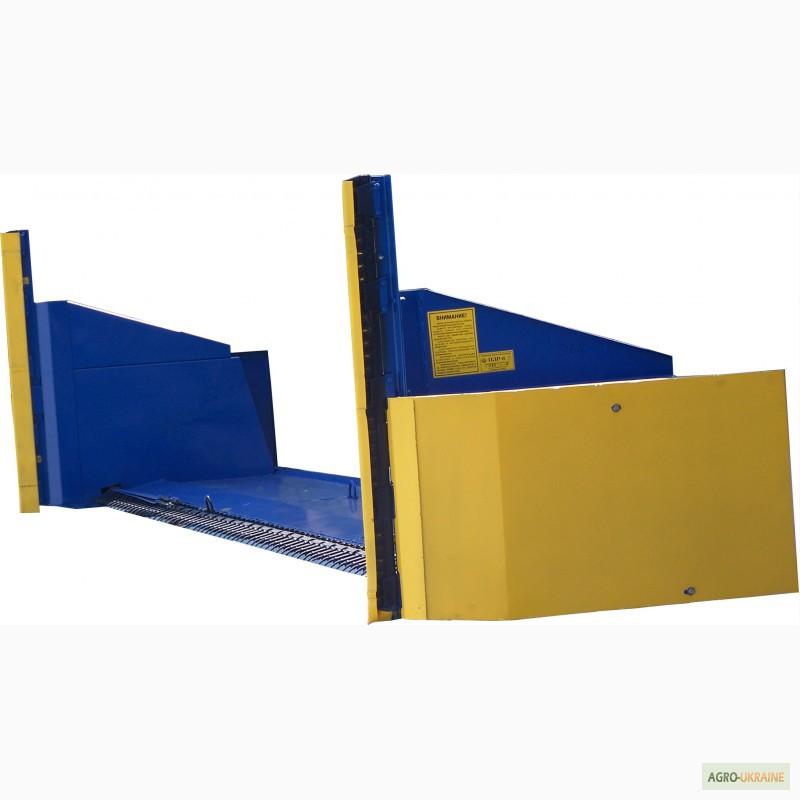

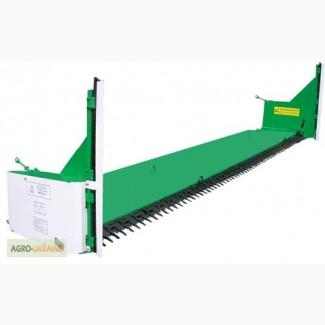

Rapsovy table PR for harvesters Don, Mega and others (93 mods) 2021, Kharkiv region.

Rapsovy table (rapeseed harvester) is intended for re-equipment of grain headers of domestic andimport harvesters for direct harvesting of rapeseed and is aggregated with augersdomestic harvesters and imported harvesters (from 3 m to 9 m)

Installation of the rapeseed table onharvesters of all types of harvesters is very simple and does not require special tools.

Rapeseed table ensures high-quality work of the harvester with the least losses. The design of the device consists of the following main components:

— left and right sidewalls;
— finger-mounted cutting device;
— the drive of the remote cutting device by means of the rocking washer mechanism (MKSH) manufactured by the Simferopolselmash plant and used on the Don and Slavutych combines;
— the left active divider with a drive from the MKSH drive of the cutting apparatus of the device;
— the right active divider with a drive from the knife of the cutting apparatus of the device; — table 700 mm long;
— protective protected drive of the right active divider;
— protective guards of the drive of the cutting apparatus of the device and the left active divider;
— fast-connecting grips for fastening the device to the sides of the harvester. Installation of the device does not require disassembly of the cutting device of the grain harvester.

Lateral active dividers of the rapeseed table consist of two active knives with special bean segments. The design of the drive of the dividers completely eliminates the vibration of the device during operation.(//tractor-service.com)

The technological process proceeds as follows. When the unit moves across the field, the vertical knives of the cutting device of the device divide the rapeseed field into strips vertically, the horizontal knife of the cutting device of the device cuts the canola stalks horizontally, the reel brings portions of the stalks to the auger of the harvester, supports them at the time of cutting. The auger transports the stalks to the center of the harvester and further through the beater of the spacer into the threshing machine of the combine.
The rapeseed table is available in different configurations

Rapeseed table with torsion shaft:
The drive of the right side divider of the rapeseed table is carried out through the transmission shaft, which is set in motion by the MKSH drive.
Rapeseed table consists of a strong steel frame that extends the working table of the harvester by 750 mm, with a width of capture from 3.5 to 9 m;

Rapeseed table (apparatus for harvesting rapeseed) consists of lateral active dividers 1297 mm high with a mechanical drive system of a fingerless cutting device, which serves to separate mown mass from non-mowable mass;
The use of a device for harvesting rapeseed (rapeseed table) reduces the loss of rapeseed during self-harvesting and is effective in any weather.
The performance and speed of the device for harvesting rapeseed correspond to the performance and speed of the combine harvester.

It is possible to install a rape attachment on harvesters of all types of combines;

Installation of the attachment for harvesting rape is carried out in a short time.

When transporting by road, the length of the body must correspond to the width of the harvester + 0.5 meters.
