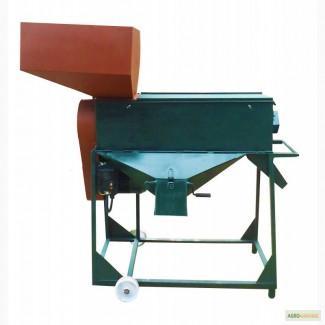

Corn thresher. Corn thresher MKP-10, Mykolaiv region.

Applies to threshing cleaned from wrappers of corn initial hybrid and variety seeds and sorting of threshing products. Possible use when processing corn for food or fodder.

The threshing machine consists of threshing and grain cleaning blocks mounted on a common frame.
The main working organ of the machine is a horizontal screw drum rotating inside a fixed cylindrical grid made of steel rods.

The drum shaft is mounted on roller bearings and is driven by the electric motor through a V-belt transmission. To prevent spillage of fallen grain, control and complete cleaning of the working organs from the remains of seeds, the frame of the thresher is closed with quick-change covers.
The completeness of threshing initially depends on their grade, humidity and is regulated by changing the area, the output of the rods, the discharge window of the threshing block.
The grain cleaning unit is installed under the threshing unit and is a sieve housing with two upper and lower sieves.
Peeled from the wrapper and dried corn cobs enter the hopper installed above the cylindrical grate (deck) of the threshing block and fill the space between the drums and the deck.
The screw drum, rotating, sets the beginnings in motion and mixes them along the axis with its blades. In the process of movement, the initial mass is compacted, they rub against each other, against the bars of the deck, as a resultchego grain separates from the original rods, i.e. threshing takes place.

The threshed corn grains fall into the lumen of the cylindrical grate, and the initial rods, moving along the deck, exit into the discharge windows and fall on the upper sieve of the sieve body.

The output from this sieve (rods) is directed to the tray for the removal of rods, and the grain accidentally thrown by the drum into the unloading window passes through it and falls on the lower sieve.

All the threshed grains fall on the lower sieve, where the selection of small particles of stems and lean grain takes place, and the bulk of the grain is taken out of the machine in the east and sent to thestorage for threshed seeds.
Depending on the humidity of the corn kernels, it is possible to adjust the angle of inclination of the sieves of the upper and lower grain cleaning block.

1. Reception bunker
2. Screw drum
3. Cylindrical grid
4. Centrifugal fan
5. Screen housing drive(//tractor-service.com)
6. Corn cobs
7. Cleaned grain
8. Light impurities
9. Rods
10. Fine grain

Performance:
drycorn. t/h initial

10.0
Email Thresher engine, kW

11.0
Email rasseva engine, kW

2.2
Overall dimensions, mm

2050x1000x1850
Mass, kg

590
Price with economy package as of January 20, 2015, UAH 197
45000
