KELI ZSFY-A load cell 20t, 30t, 40t, 50t, weight sensors for car scales, Kyiv region.

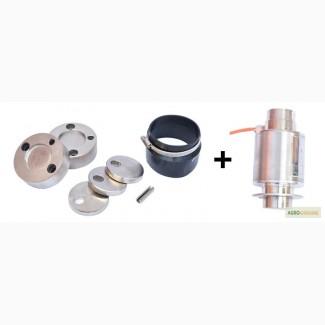

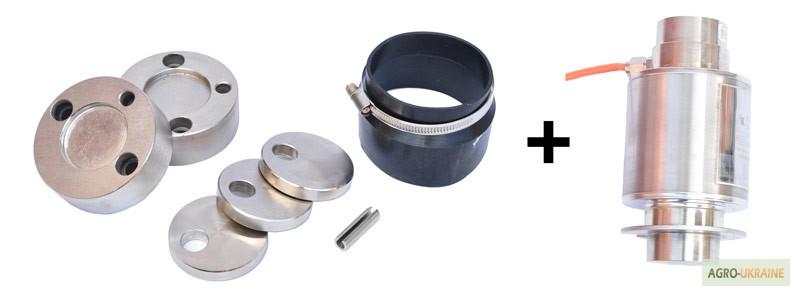

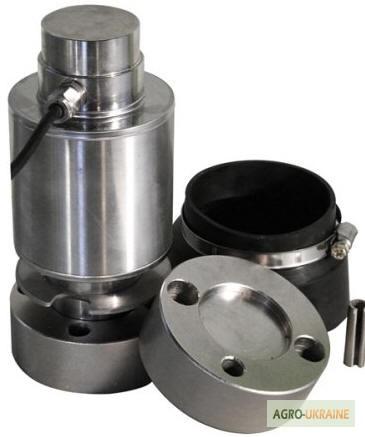

Complete with upper and lower cups, cuff, clamp, pin, eccentric washers made of steel alloy
Discounts!!! Promotional offers!!!

KELI sensors for automobiles, wagonswesov.
Nominal load (Emax) — 20t, 30t, 40t, 50t
Nominal sensitivity (RCP) 2±0.002 mV/V
Accuracy class — C3 (OIML R60 C2-C5)
Zero balance ±1%
Temperature deviation of sensitivity ±0.02%/10°С
Temperature deviation of zero ±0.02%/10°С
Input resistance 400±10? (ZSF); 700±20? (ZSFY)
Output resistance 352±Za352±5? (15m) (23m); 706±7? (25m)
Insulation resistance 5000M?(//tractor-service.com)
Thermal compensation range -40...+40°С
Operating temperature range -50...+70°С
The maximum permissible load is 150% Etah
Destructive charge 250% Etah
The recommended power supply voltage is 10...12 V
The maximum power supply voltage is 15V
Protection class IP68
Case material: Alloy steel, stainless steel
Cable: length: 8m (10t), 12m (20-25t), 14m (30t), 16m (30-35t); diameter: 06mm

Discounts are provided depending on the quantity!
Delivery time 0-3 days from the moment of payment
Delivery across Ukraine
