Forwarder Amkodor-2661-01, Kyiv

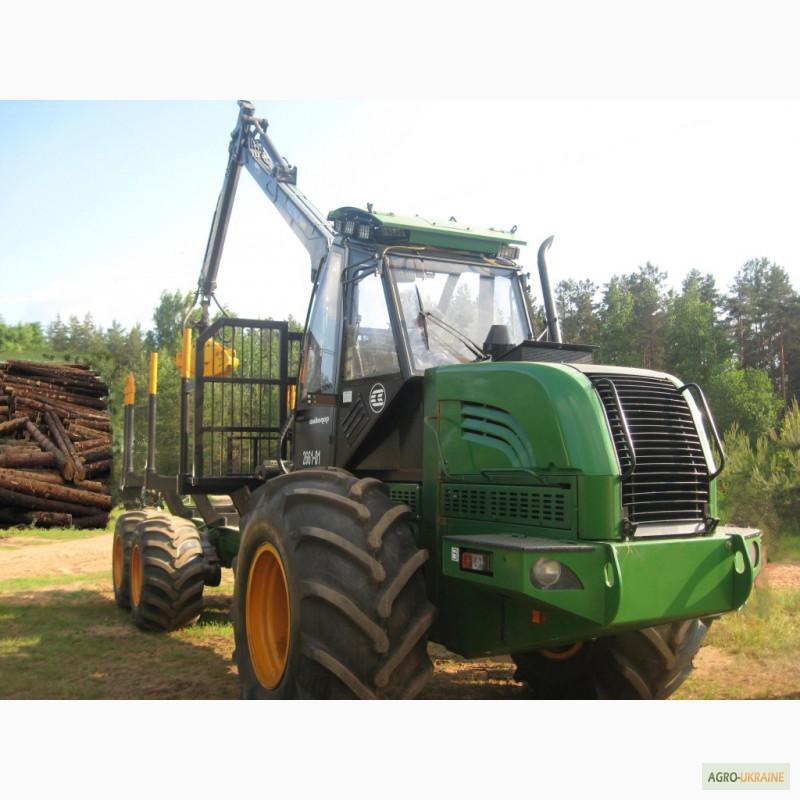

Forwarder Amkodor-2661-01 is intended for collection, loading and transportation of assortments on the territory of forest cuttings, haulage and logging roads and other round timber materials, as well as for loading and unloading operations, wood sorting and storage operations.
Extended cargo compartment.
Carrying capacity 12 tons. D-260.1 diesel (148 hp). Wheel formula 6x6. GMP 2661.03.01.000-01. Front drive axle 342.05.01.000-01. Multi-disc brakes in oil with hydraulic drive. Rear leading trolley 4x4 NAF (Germany), manipulator 600-1Foresteri (Finland) or OMTL-70-05 ("Velmash-S", Russia).
Wheel formula 6x6
Type of transmission Hydromechanical
Operational engine power, kW (hp) 109 (148)
Nominal load capacity, kg 12000
Manipulator flight, m 8.2
Manipulator lifting moment, kNm 80
Speed range, km/h 0..28
Tires:
front 30.5L-32LS(//tractor-service.com)
rear 700/50-26.5

Base, mm 5690
Track, mm 2100
Ground clearance, mm 580

Overall dimensions: 165
Длина, мм 9600
Width, mm 2900
Height, mm 3700
Constructive mass, kg 14000
Operating mass, kg 15400
Length of transported assortment, m 7
