Hinged finger mower KTP-1,8 for tractor T-16, Zhytomyr region.

Oylenergomash plant manufactures:
The KTP-1.8 tractor finger mower is intended for mowing sown and natural grasses with the laying of the mowed mass in the spread.

The KTP-1.8 mower is used in all soil and climatic zones.

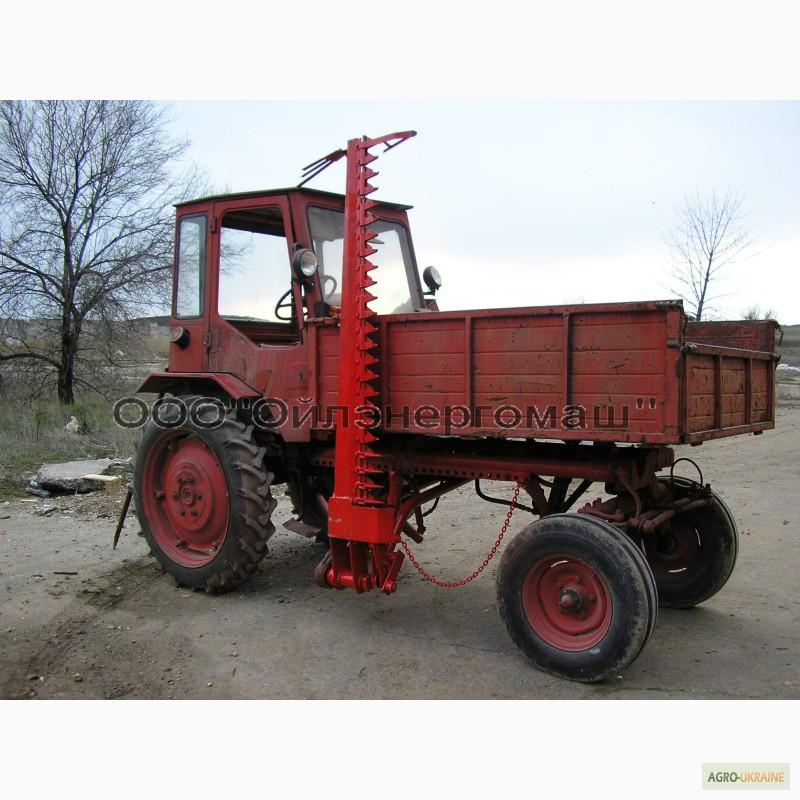

The mower is aggregated with atractor – T-16.
The designmower allows not to remove the tractor body.
Structural weight (dry) 120 kg
Construction width of capture 1.8 m
Productivity in 1 hour of the main time 1.25–2.5 ha/h
The working speed of movement in the main operations is 8–10 km/h.
Transport speed:
when the mower is raised and fixed for long-distance travel, no more than 20 km/h
with the mower raised for short-distance travel across the field, no more than 10 km/h
Road clearance, not less than 300 mm
Overall dimensions: 173
в рабочем положении:
length 1160 mm
width 3660 mm
height 875 mm
in the transport position (when moving on general purpose roads with an MTZ-80 tractor)(//tractor-service.com)
length 4600 mm
width 1910 mm
height 3300 mm
The minimum cutting height is 50 mm.

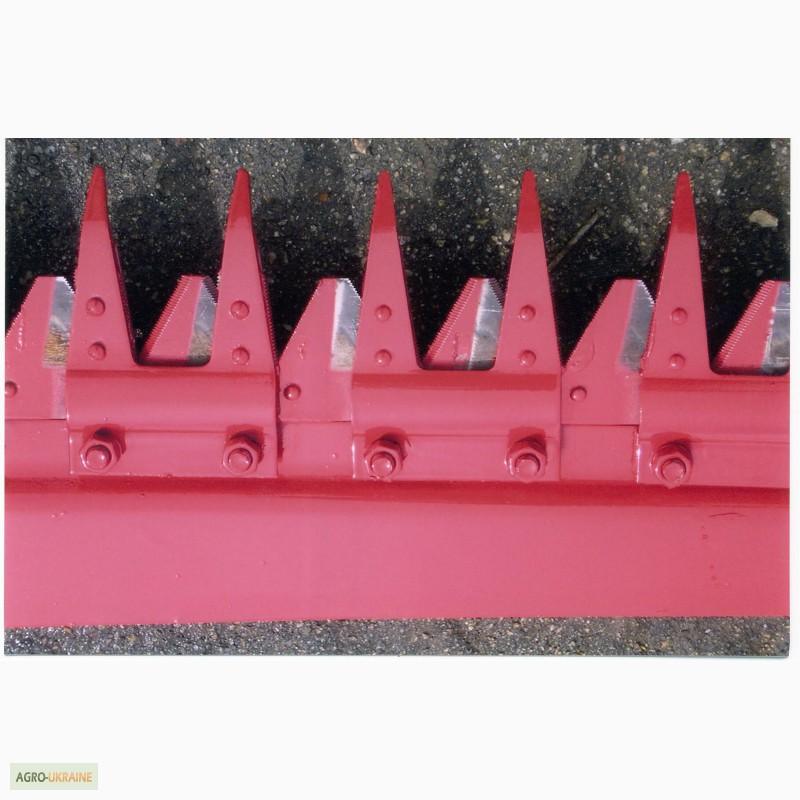

Cutting apparatus:
segmental-digital type
knife drive crank-crank
knife stroke 76 mm
maintenance staff 1 mechanic
The main component parts of the mower are:
- hint;
-bearing beam;
-cutting apparatus;
-hydraulic lifting system of the cutting device;
- outer (right) divisor;
- protective fence;
-transport traction;
- cardan transmission.
The bar is equipped with the best device in terms of the quality of the cut by inertial forces, power consumption for cutting and the total load on the blades of the segments, as well as operational reliability is a cutting device with a stamp-welded finger, with four inserts, while the knife segments alternate with a notch up and down. This cutting device does not require daily adjustment of the gaps between clamps and segments. The segment is not wiped with a clamp. The high-quality cut of both upright stems and reclining stems, as the process of cutting inclined stems is facilitated if the stems are cut with a knife with the sharpening edge of the blade at the bottom, that is, an inverted segment. At the same time, clogging of the cutting apparatus is reduced. The costs of repairing die-welded fingers are reduced by equipping them with replaceable anti-cutting plates.
UNFORTUNATELY, THE PRICE MAY CHANGE DUE TO THE GROWTH OF METAL PRICES!!! SEE THE SALES DEPARTMENT FOR DETAILED INFORMATION. Production time is 7-14 working days.
