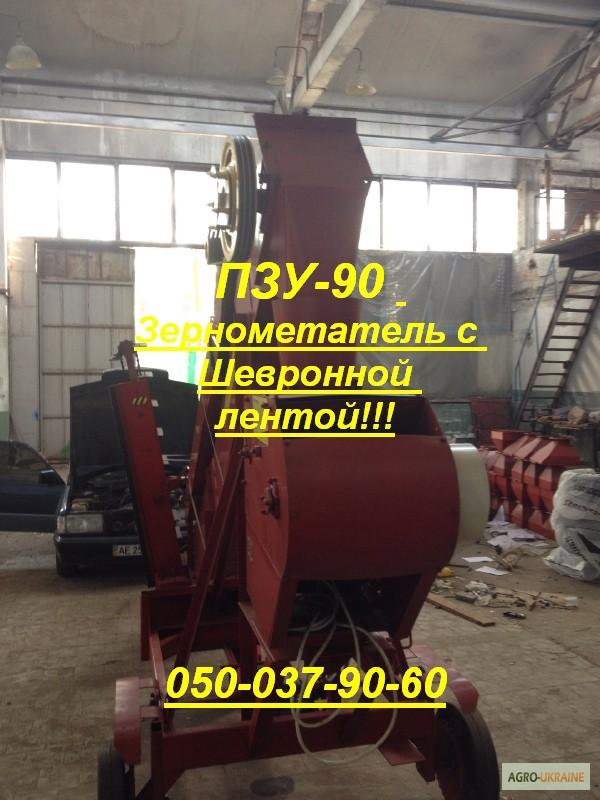

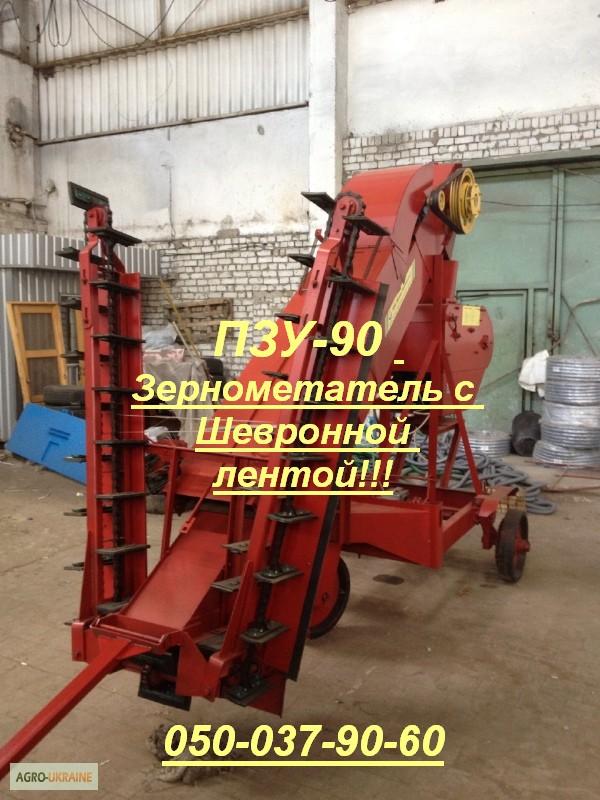

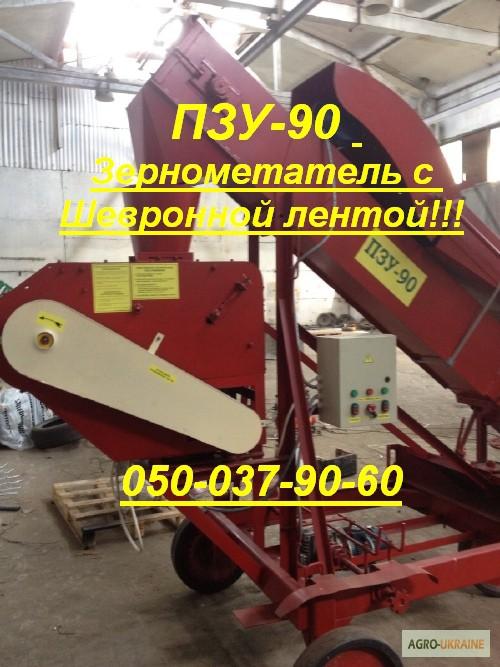

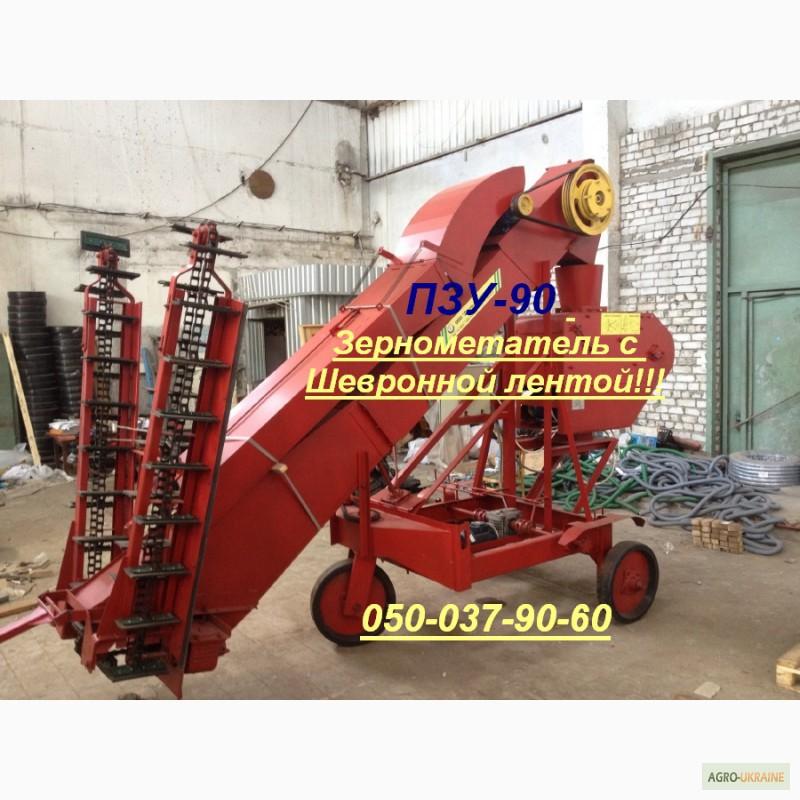

PZU-90 Grain thrower with chevron belt, Dnipropetrovsk region.

Pogruzchik universal grain loader ROM-90
The universal grain loader with a capacity of 90 t/h is intended for the mechanization of loading and unloading operations on open streams and in grain warehouses.
The grain loader can perform the following technological operations:

1. Loading and unloading of grain warehouses.
2. Loading grain into vehicles with a side height of up to 5.5 m.
3. Mechanical shoveling (distortion) of grain in grain warehouses on open platforms during grain transportation fromharvester.
4. Formation of sides from piles of grain left by transporters.
means on the platforms during the transportation of grain from the combine.
5. Grain separation with separation of light impurities.

Technical characteristics
Name Ed. measurements Значение
Nominal productivity for 1 hour of the main time for wheat at humidity up to 16% on soil with a hard coating t/h 90
Maintenance staff 1 person (mechanic)
Weight, no more than 1200 kg(//tractor-service.com)
Installed power, no more than 9.1 kW
Overall dimensions, no more than:
In working position
length mm 6700
width mm 4500
height mm 4000
Withtrimmer turned 90:
length mm 3800
width mm 5345
height mm 4000
In the transport position (with the trimmer guide tube and feeders removed):
length mm 4300
width mm 1700
height mm 3000
Service life years 8
Device and operation of the machine
