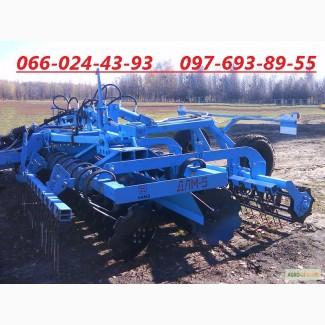

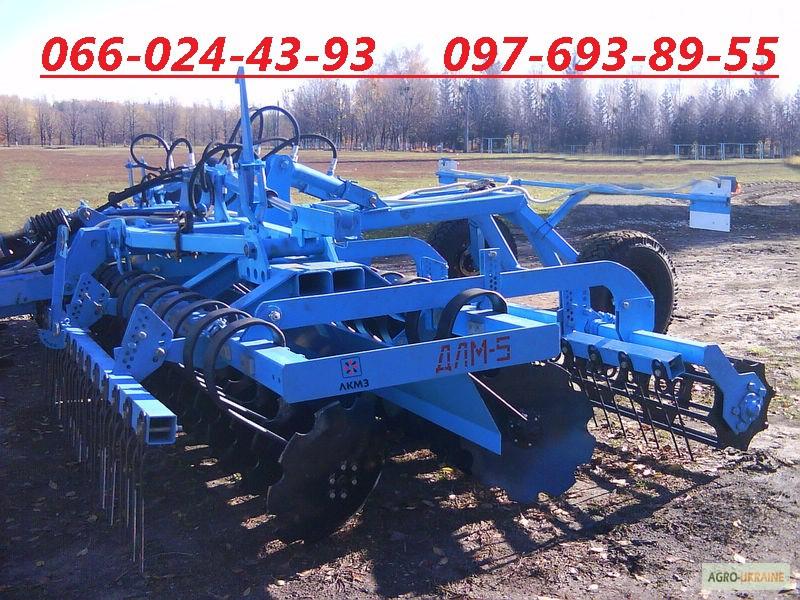

Disk harrow - DLM peeler - 5.0, Dnepropetrovsk region.

Disk harrow –DLM husker – 5.0 – used for husking stubble; basic fine tillage; pre-sowing soil treatment for grain, technical and fodder crops, as well as for preparing the soil for winter sowing in the fallow period; provides crushing and covering of plant residues of previous crops and weedy vegetation; used in the improvement of meadows and pastures.
- High speed of work (12...20km/h) with a width of 5.25 m allows to achieve productivity 1.5-2 times higher than that of analogues;
- Modern bearing assembly with cassette sealing does not require maintenance during the entire service life;
- The distance between the disks is 125 mm, together with the low-frequency transverse oscillations of the rack, allow to ensure a stable, depth-treated bed without deep grooves;
- Discs made of high-quality boron steel hardened by the Bellota company have almost twice the wear resource than discs made of 65G steel;
- Spring teeth in front of rows of disks act as a regulating body, evenly distributing plant residues;
- Reflective shields arranged in rows of discs contribute to better soil crushing and mixing with plant residues;
- Spring teeth in front of the roller prevent a direct flight of the earth from under the second row of discs into the roller, which prevents it from clogging when working at high speeds.
(//tractor-service.com)
Advantages of the DLM-5 harrow over similar devices:
the speed of the unit reaches 20 km/h, and the width of the grip is 5.25 m, which makes it possible to use it with maximum productivity;
the modernized bearing assembly with cassette sealing functions until the end of the service life, not requiring lubrication;
a small distance between the discs (125 mm) in tandem with low-frequency vibrations of the rack prevents the formation of deep grooves and promotes stable tillage of the soil;
the bearing unit of the outer disk in DLM-5 is attached to the rack from the inside, thereby solving the problem of the furrow from the outer disk without the need for additional parts;
reflective shields between the rows of discs contribute to the maximum grinding of the soil and its qualitative mixing with plant residues;
42 high-quality Bellota boron steel discs will last twice as long as ordinary steel discs;
thanks to the spring teeth located in front of the roller, the soil does not fly out from under the second row of disks, excluding the clogging of the unit during high-speed work.
The spring rack in theshredder DLM-5 contributes to the reduction of traction resistance and economical fuel consumption. The built-in overload protection provides 3D protection of the bearing unit of the working body when hitting obstacles, so damage and breakdowns of harrow components are excluded. The presence of a spring rack also gives a uniform processing depth (from 3 to 12 cm) and ensures self-cleaning of the discs during operation, allowing to work on wet soils without clogging.
The DLM-5 disc harrow and peeler is aggregated with a tractor with a power of 130 to 170 hp. by means of a semi-hinged connection. The weight of the product is 3800 kg.
