Description: width of the grip - 2.8 m, required tractor power - 95 HP. Состояние: состояние - новый. Information: in stock - 5 pcs. Shredder of plant residues
The working width of the shredder is three 2.8 m.
It is aggregated with tractors MTZ-82, 892, YMZ-6, YMZ-8040, MTZ-1025, 1221
Universal shredders LEOPARD/O thanks to the adjustable cover,
intended for grinding post-harvest residues of rough-stemmed crops such as corn,
sunflower, cut branches of trees, bushes and also for mulching meadows and pastures.
LEOPARDS/O were constantly improved, which contributed to the extension of the service life of these machines. First of all, the frame and suspension system have been strengthened to cope with an even greater load. It is possible to change the height of the cut by adjusting the suspension
wheels. Instead of supporting wheels, you can use a copying
shaft with cut height adjustment. The machine is equipped with "Y" type knives or chisels.
It is driven by the PTO of the tractor
tractor by means of cardan-telescopic shaft (620 Nm, shear pin clutch), 540 rpm.
Belt pulleys are installed on centering bushings, which
(//tractor-service.com)
differ in short installation and dismantling time, and also give
possibility to work at high speeds.

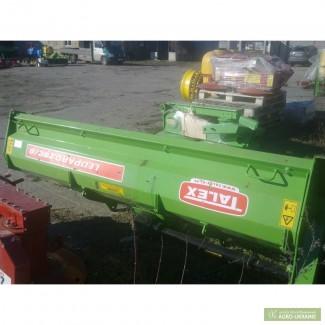

LEOPARD/O 280
Sweeping width 2.8m
Tractor power (hp) 95
PTO revolutions (rpm) 540
Mass (kg) 665 kg
Number of knives Y/hammers hammers 92/46
Cardan shaft (Nm) 620 Nm
(shear bolt)
