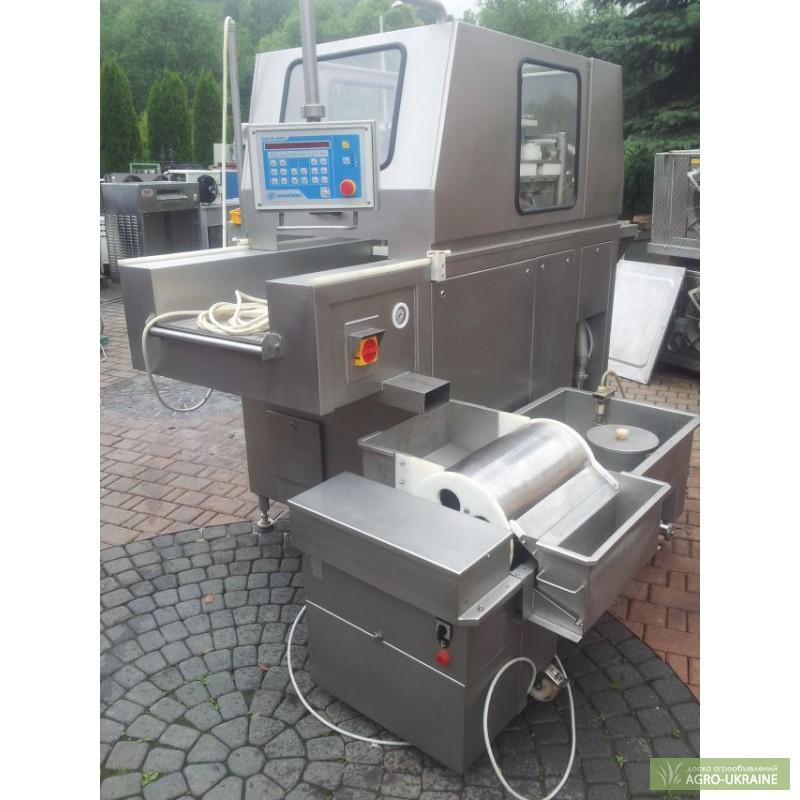

Injector Nowicki, Volyn region.

Nowicki injector
Features of the equipment
2 independent heads, adjustable brine pressure and conveyor speed, constant brine temperature, self-diagnostic system, smooth adjustment of head travel, needles on pneumatic shock absorbers (if meat is on the bone).
Manufacturer Metalbud Nowicki
Country Poland
Model MH-5-280
The material is stainless steel.
Power of 2 heads
Number of needles pcs. 276
Conveyor belt pass (adjustable) mm/cycle 37.5;75
Conveyor width mm 600(//tractor-service.com)
Maximum productivity kg/h Up to 500
Tip jump mm 210
Setting value % 5÷100
Power supply voltage and frequency V; 50Hz 3x(380)400
Installed power kW ~11
Dimensions length mm 2700
width mm 1250
height mm 2100
Width with salt solution filter mm 2200
Full loading length mm 4000

Mass kg 1300
