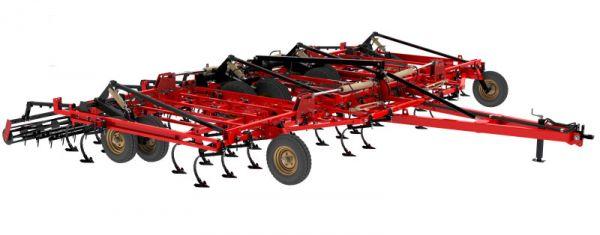

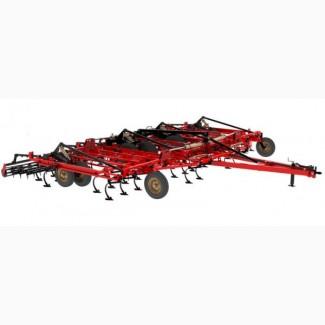

Trailed cultivator KPS-12PM (3-x section) TM VOSHOD, Cherkassy region.

Production — TM "Voshod" voshod.dp.ua
Trailed cultivator KPS-12PM (3-x section )
+380xxxxxx
Cultivator KPS-12PM is intended for preparing the soil for sowing agricultural crops and taking care of crops.

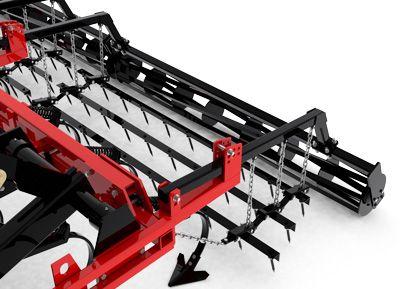

The design of the KPS-12 PM cultivator has 5 rows of paws, a harrow and a rolling roller...

Technical characteristics
Trailer type
Working width of capture, m 12.0
Productivity, ha/time 12.0
Depth of soil treatment, cm 5-12
Mass, kg 8000
Number of sections 3
The number of rows is 5
Number of working bodies (disks) 77
Required power of the tractor, hp 280-350
(//tractor-service.com)
Advantages of PM series cultivators

• uniformity of processing depth over the entire width and length of the grip;

• even sole of the treated area;

• leveling and partial compaction of the soil;

• low probability of clogging elements with plant residues;

• high processing productivity;

• rigid and durable frame construction;

• simplicity and reliability in use.

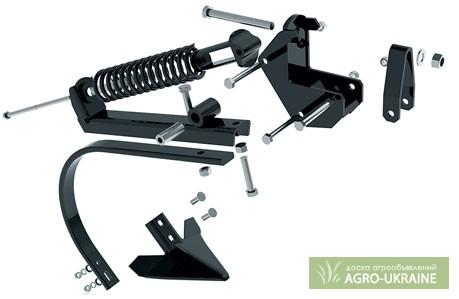

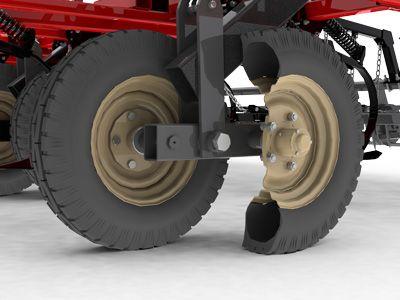

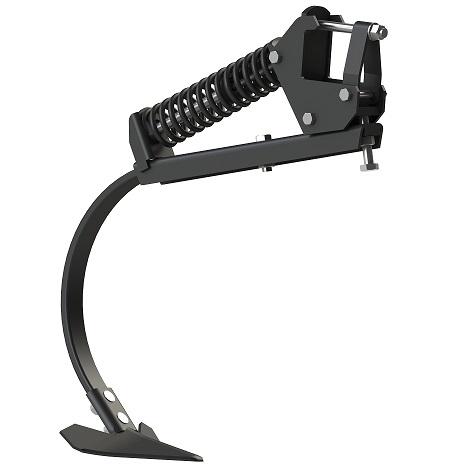

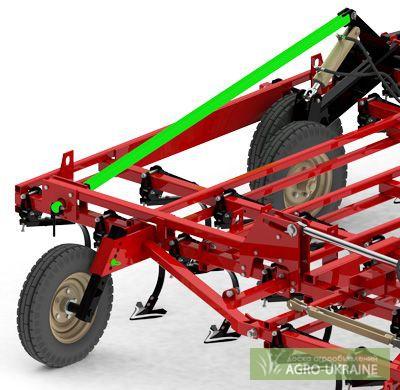

The frame of the bridge structure of the KPS-12PM wide-grip cultivator provides high strength and reliability, while maintaining a low weight. Having a rigid hitch, the design of the cultivator ensures parallel raising and lowering of the unit relative to the surface being processed during turns and moves. The uniformity of lifting the cultivator relative to the hitch with the tractor is ensured by the mechanism connecting the drawbar of the unit with its internal partswith wheels. The uniformity of the lifting of the central part of the cultivator and its wings is ensured by the design of the hydraulic cylinders of the wheels and the sequential scheme of connecting the hydraulic cylinders. The pitch of the working bodies of the cultivator is 152 mm, the width of the paw of the working body is 230 mm, which ensures full overlapping of the working bodies of each other during processing and increases the service life of the paw. Working bodies are placed on five main parallel beams and an additional sixth. This number of rows makes it possible to ensure a sufficient gap between the working bodies for the passage of plant residues during processing. The distance between the rows is 765 mm, which also increases the capacity of the cultivator and prevents it from clogging. Video of KPS-12PM cultivator http://voshod.dp.ua/production/cat/4/item/62/video/
