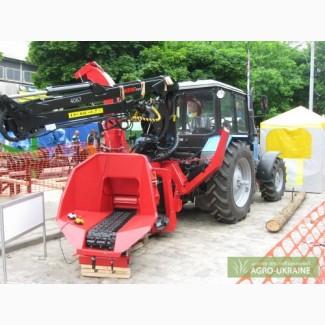

Farm wood chipper 260HFC with Farma 4067 manipulator, Lviv region.

The FARMI 260HFS model (model with a metal feeding conveyor) is a high-performance wood waste crusher for processing various materials into chips (high-quality fuel chips from trunks, whole trees, logs, waste sawmills, etc.)
 Powerful electro-hydraulic feeding device with two rollers: upper roller with a large diameter (D=280 mm), well-designed material feeding tray, material loading window size 260 x 320 mm
Double-disc crusher FARMI with three-stage material crushing system: Cutting knives - Additional knives - Shredder of branches
 Adjustable chip size from 7 to 25 mm (under special conditions up to 4 mm)
 There are no restrictions on the minimum diameter of the crushed material (the gap between the knives is 1.5 mm)
 Own hydraulic system that drives both the feeding device and the feeding roller
 Absence of mechanical stress (NO STRESS rotation control device)

Technical characteristics of FARMI 260 HFC
Productivity, m³/h 10-40*
Max. size of wood / feed holes, mm 260 / 260x320
The length of the chip at the exit, mm (4) 7 - 25
Recommended power, kW 90 - 125*
Rotor diameter, mm / knives, pcs. 1050 / 2
Speed of rotation of the power take-off shaft, rpm 540-1000
Standard exhaust pipe, height above the floor (option), m (2.4) 3.0 (3.5)
Supply Conveyor boot device
Rotor mass, kg 240
Attachment to the tractor Three-point coupling / feeding device
There is a branch shredder
Mass of the shredder, kg 1500
*Productivity and power consumption of the chopper may vary depending on the processed material, the condition of the knives, the length of the chip, the type of feed and speed.

The chipper is equipped with its own oil station to ensure the operation of the hydraulic system. In addition, the chopping machine is equipped with the NO STRESS system, which monitors the revolutions of the tractor engine and, when they fall, turns off the material supply to the machine. When revs are restored, the feed is automatically restarted. This option gives the following advantages:
• homogeneity of chips
• avoiding unnecessary stopping of the tractor engine(//tractor-service.com)
• higher productivity
• the possibility of using a tractor with a less powerful engine
INFORMATION ABOUT THE FARMI 4067 MOUNTED TIMBER LOADER

This economical timber loader meets all the requirements of the forestry and agricultural industries. It is perfectly suited for loading timber materials, from wood waste to products of continuous felling, and can also be used as a universal loader for various loading and unloading operations.
- Rotary device with 4 cylinders (2 rails), provides high torque.
- The loader has sufficient boom reach and lifting power.
- Angular joint with a wide range of rotation provides excellent working geometry.
- Drop-down supports and a 3-point coupling device as standard equipment.

TECHNICAL DATA OF THE FORESTRY LOADER FARMI 4067

Total lifting moment, kNm 39.0
Max. departure, m 6.7
Load capacity, kg / 4 m 705
Carrying capacity, kg / max. departure 445
Torque, kNm 10
Mass of hydraulic supports, kg 200
Weight (with grab and rotary mechanism) kg 870
Recommended performancepump, l/min 30-60
Attachment to the tractor Three-point coupling
Working pressure, bar 180
Regulating valve LEC 2/6 +2 on-off.

In order to match the declared passport data on productivity, load capacity and speed of operation of the detailed complex with real performance indicators, the power of the used tractor must be at least 125 hp.
