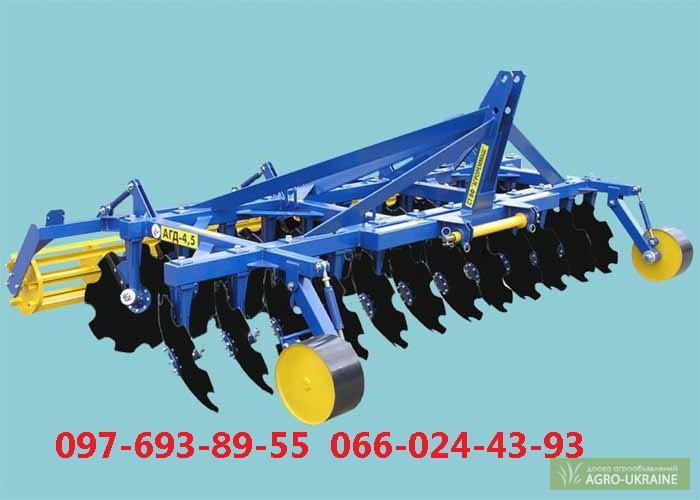

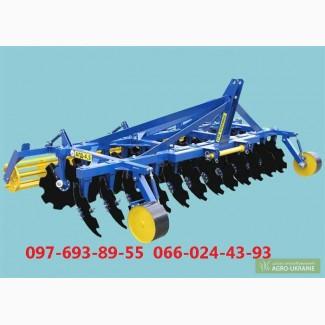

Disk harrow AGD-4.5, Dnepropetrovsk region.

The unit is intended for the cultivation of compacted soils of various mechanicalcomposition with grinding and incorporation of crop residues into the soil.
TECHNICAL CHARACTERISTICS
Hinged type
Construction width, m 4.5±0.1
Fuel consumption, l/ha 11.5-13.5
Productivity per hour of prime time, ha, not less than 3.6...5.1
Depth of tillage, cm 8...18
Working speed, km / h 8.0...12.0(//tractor-service.com)
Transport speed, km / h, no more than 20
Product weight (without accessories), kg 1750 ± 20
Overall dimensions, mm, no more than
length 2700
width 4900
height 1700
Ground clearance, mm, not less than 300
Service personnel, person. (tractor driver) 1
Guaranteed resource, ha 2200
