New mounted disc harrow BDN-2.4 for sale, Dnepropetrovsk region.

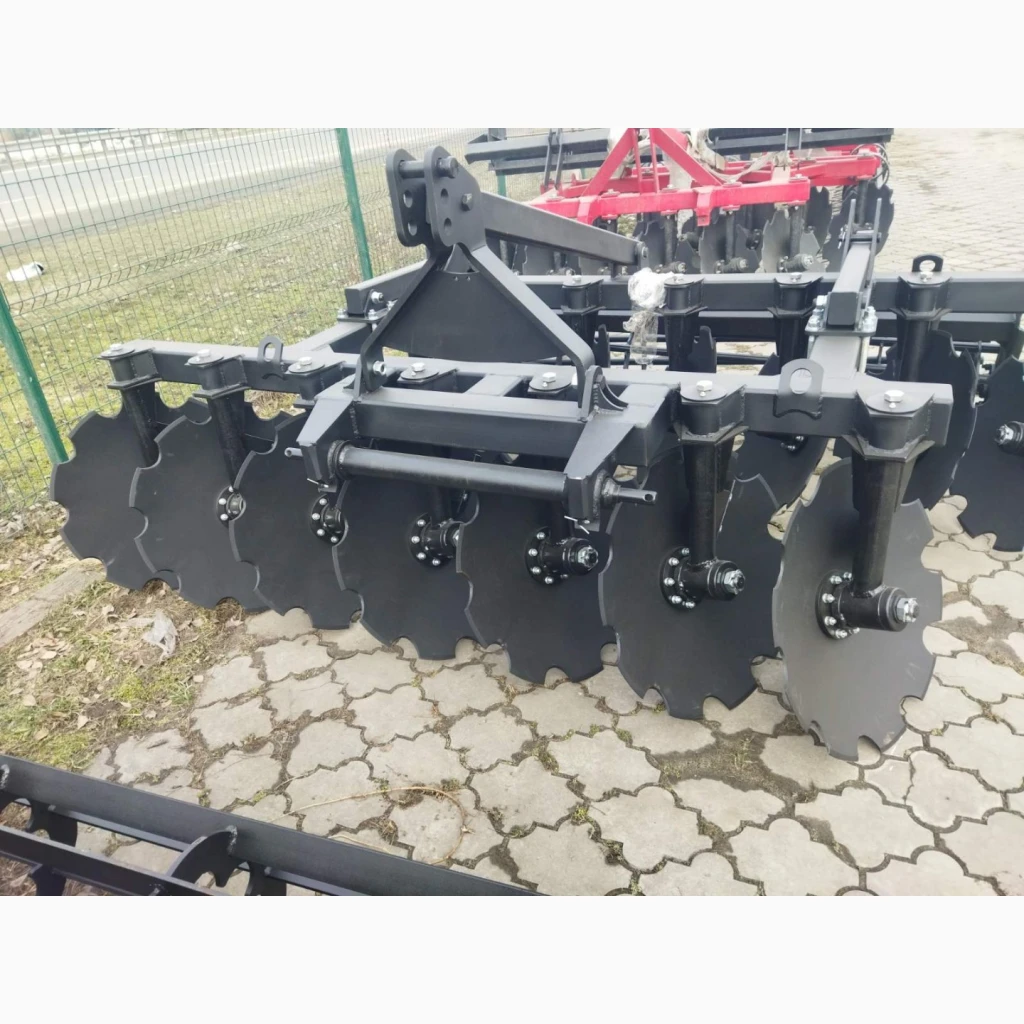

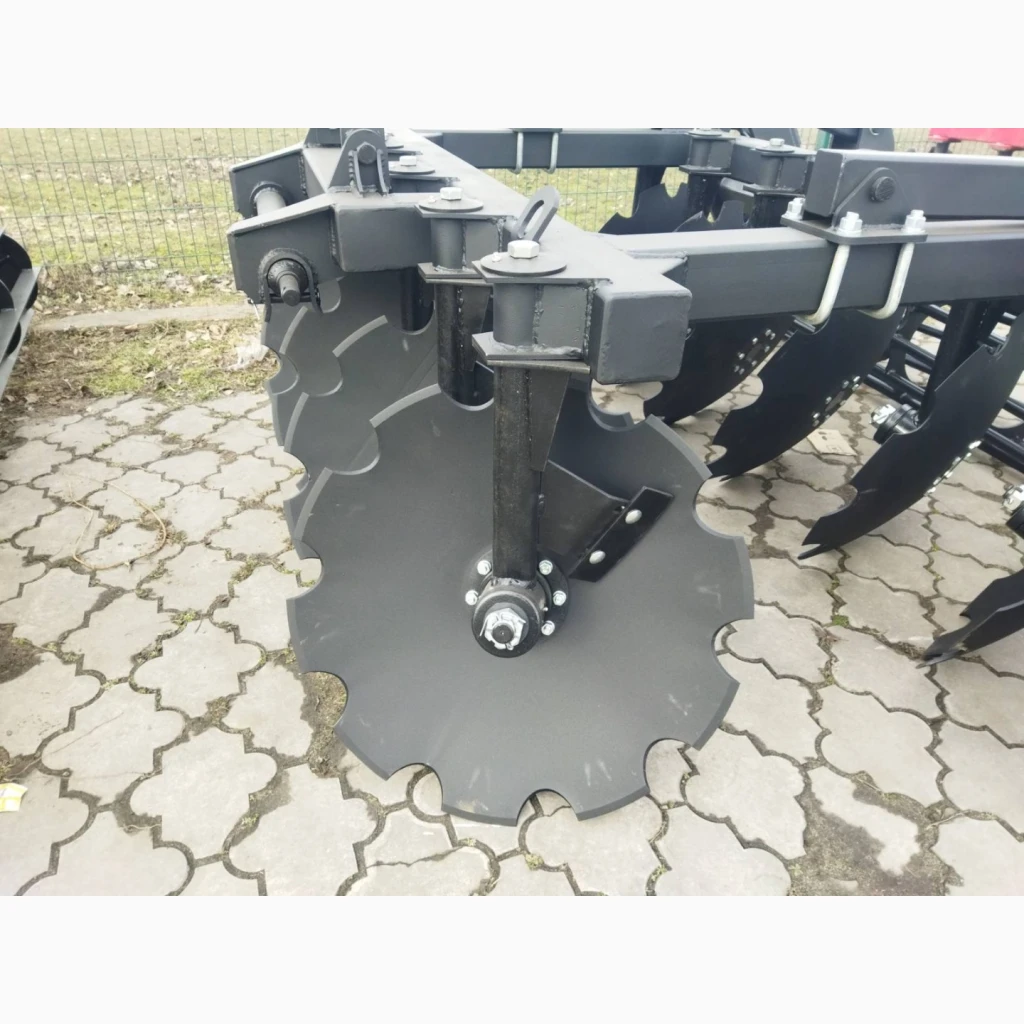

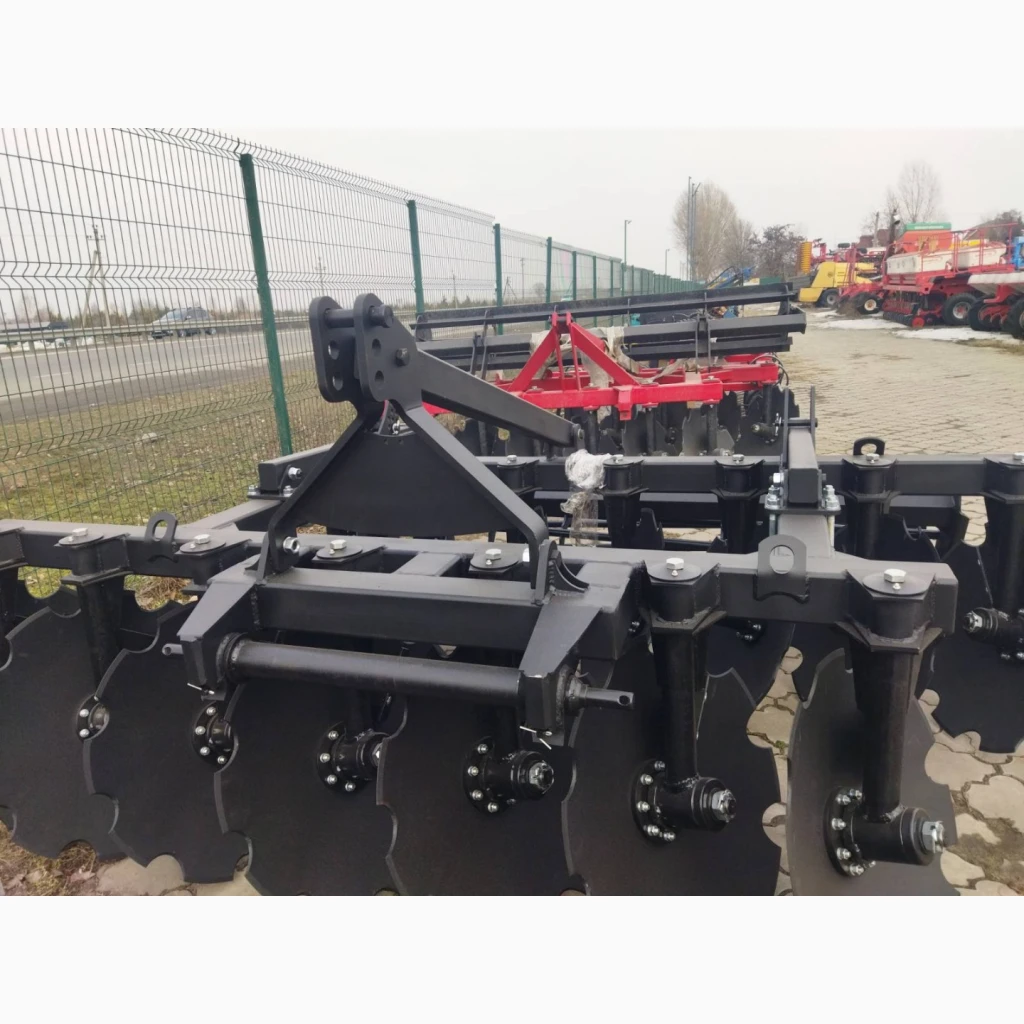

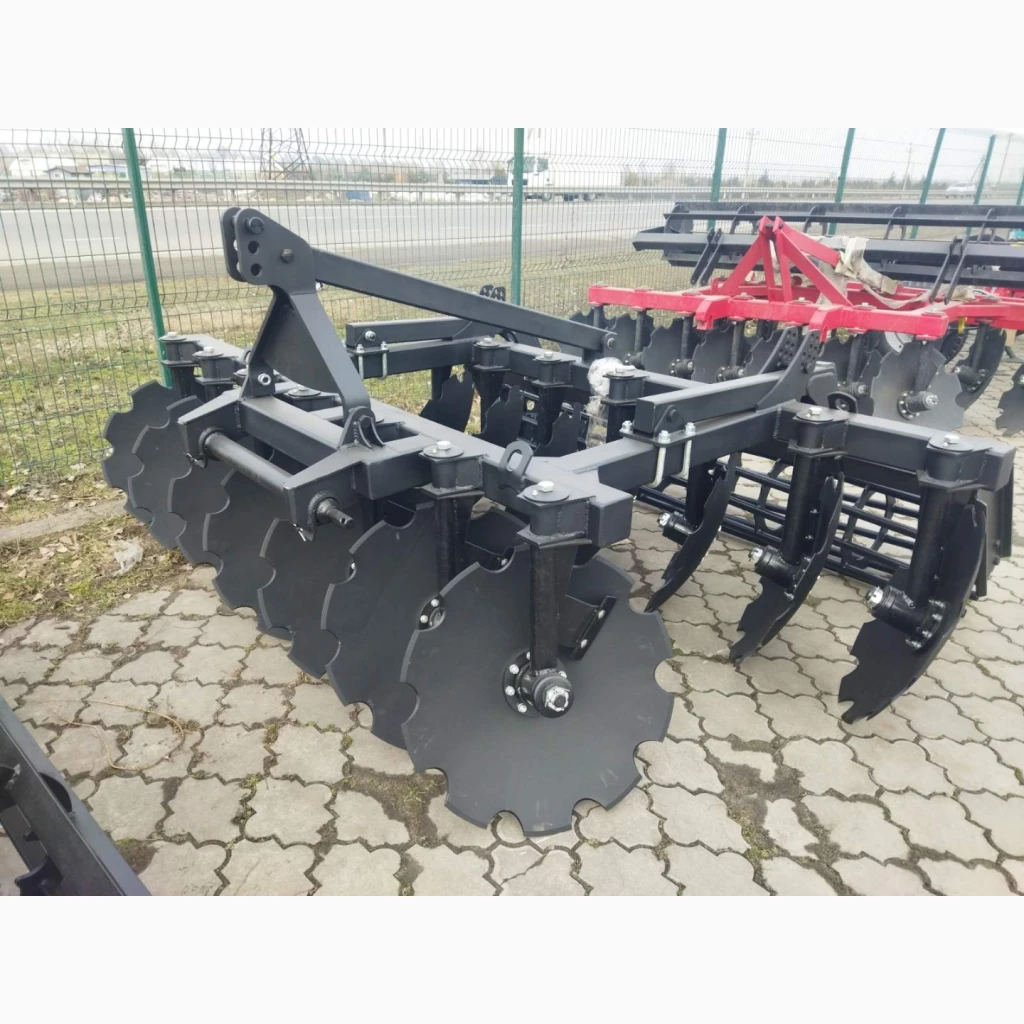

A new mounteddisc machine BDN-2.4 harrow with a working width of 2.4 meters is for sale. This unit has two rows with 14 working bodies, on whichdiscs with a diameter of 660 mm and a thickness of 6 mm are installed.Disc housings are fitted with tapered roller bearings 32208 and 32307, which are lubricated and adjustable to ensure reliable operation.

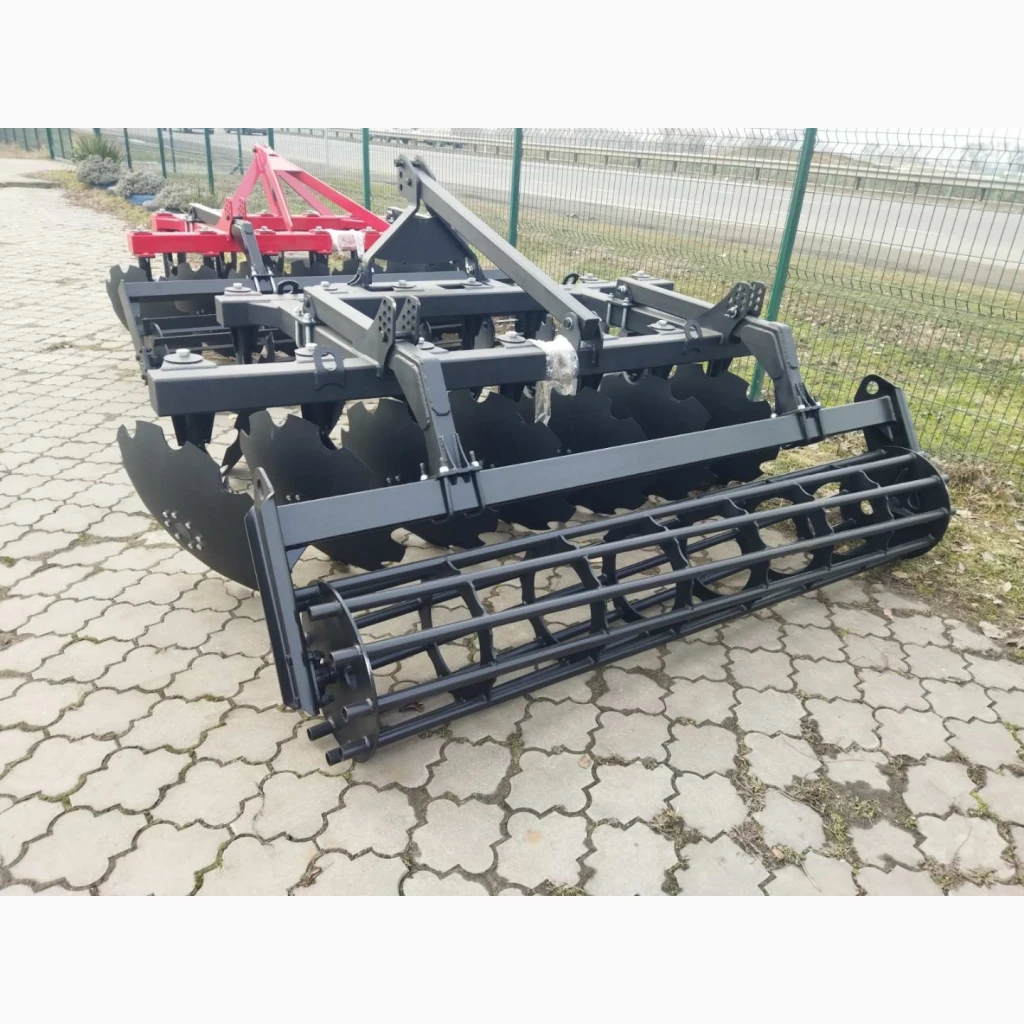

This harrow is equipped with a tubular roller with a diameter of 450 mm, which rotates on UCF 209 bearings. The weight of this harrow is 970 kg, and for its optimal operation it is recommended to use a tractor with a power of 80 hp or more.(//tractor-service.com)
The width of the unit is 2.4 meters, which allows you to achieve productivity from 1.8 to 2.2 hectares per hour. Fuel consumption is from 7.2 to 8.5 liters per hectare. The unit can process the soil to a depth of 8 to 20 mm at a working speed of 8 to 12 km/h. The transport speed of this harrow is +/- 20 km/h.

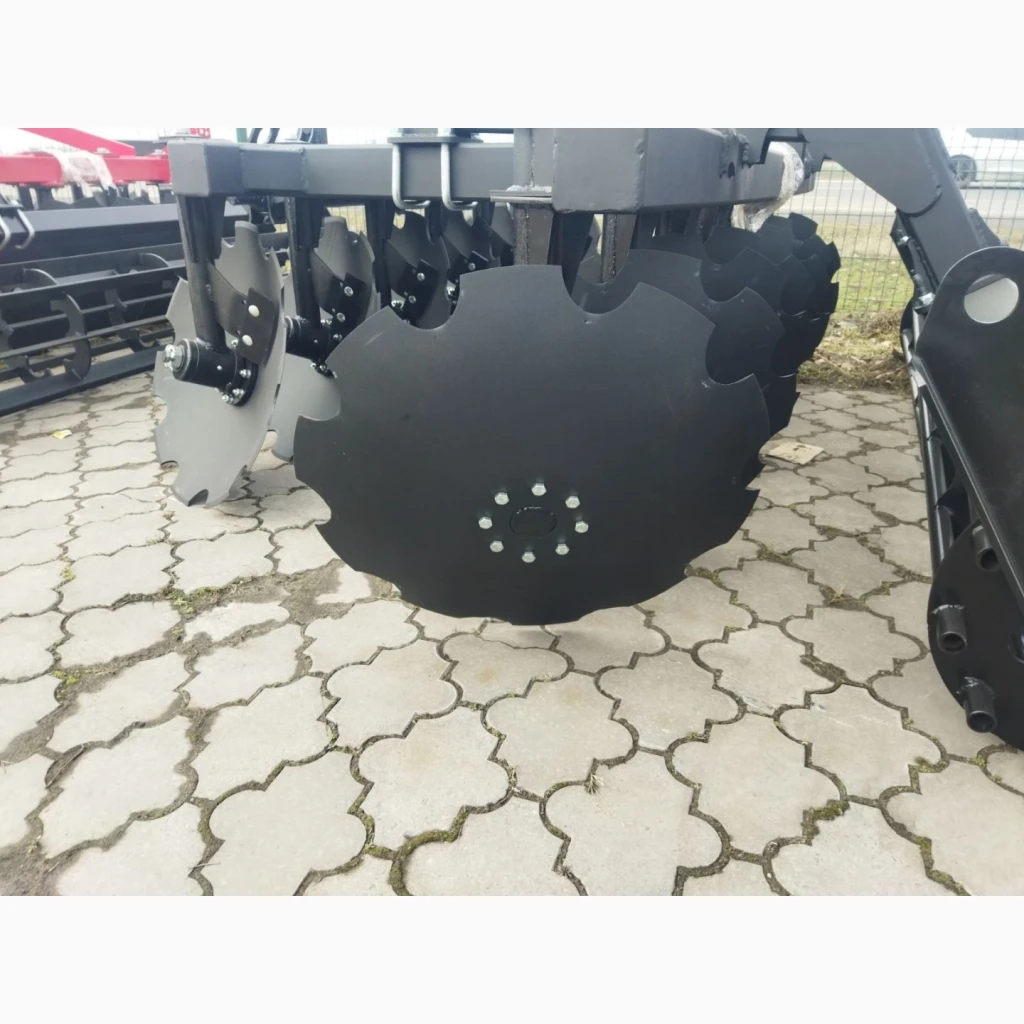

The diameter of the working disk is 660 mm, the thickness is 6 mm. The number of discs in this unit is 14. Disc support bearings - 32208 / 32307, roller bearing - UCF 209. This harrow is ideal for tilling the field and preparing the soil for sowing.
