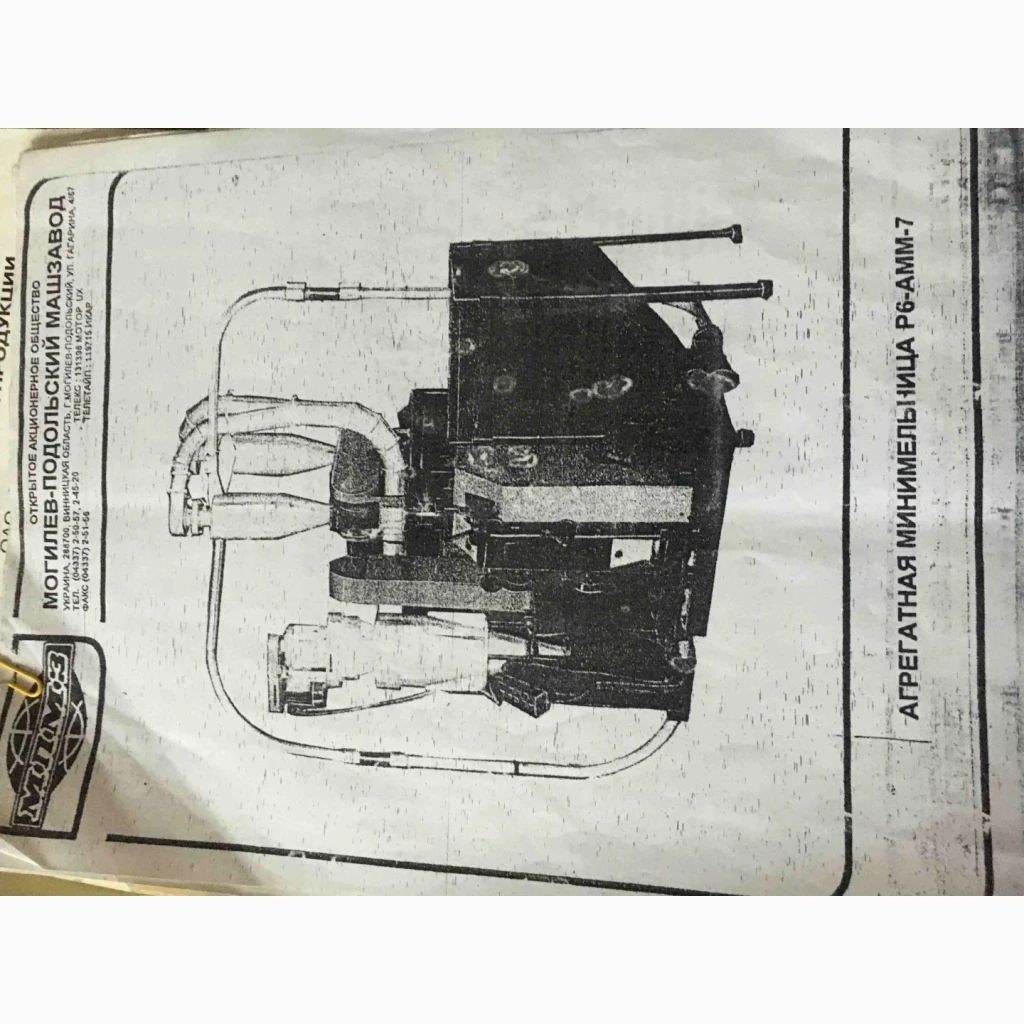

Mill. Aggregate minimlin P6-AMM-7. Working condition, Chernivtsi region.

Intended for grain processingcorn into flour and groats. Manufacturer: Mohyliv-Podilskyi Mashzavod.

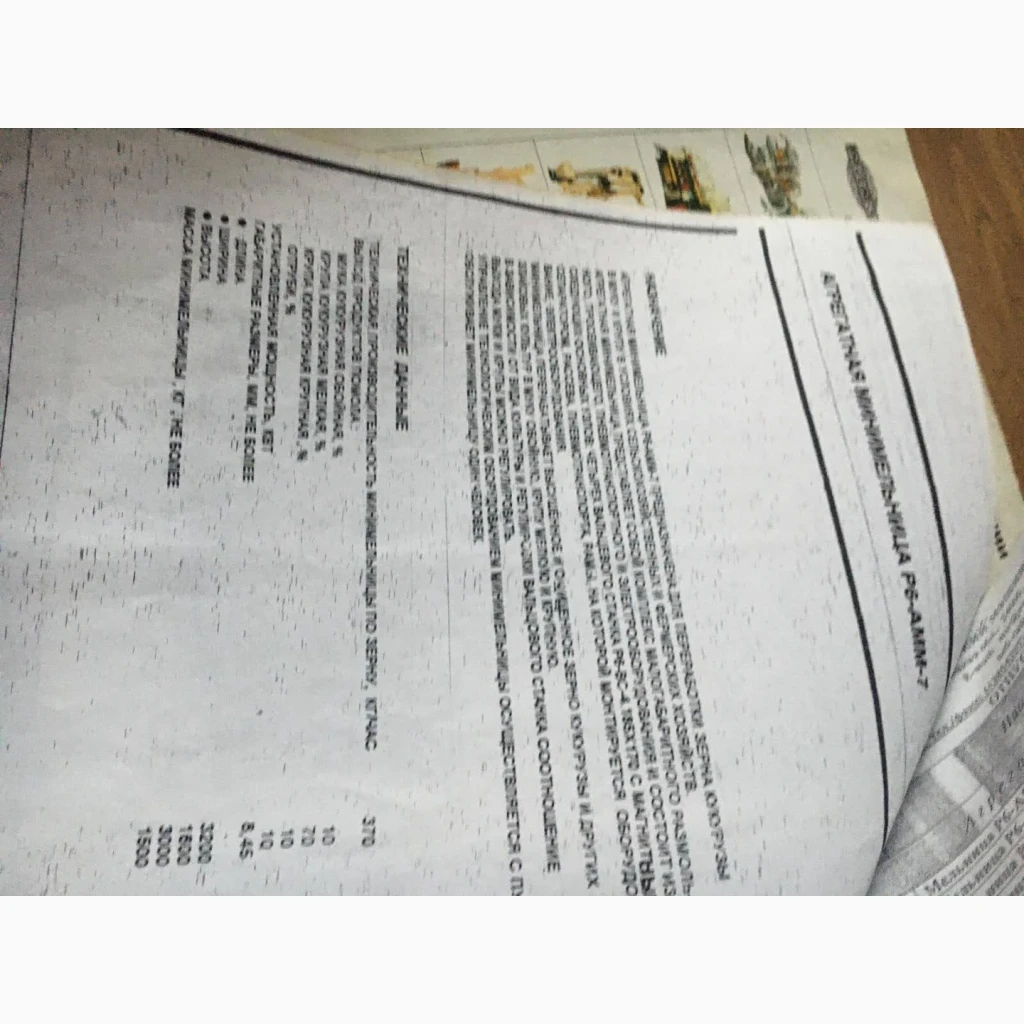

1. Technical productivity of the unit by grain during grinding:
of tooth-shaped and semi-tooth-shaped corn of basic conditions, kg/h 370
2. Total output:
-cuckoo flour wallpaper, % 10
- corn grits, % 70
- corn groats, % 10
-bran, % 10
3. Total length of the roll line, cm 34
4. Diameter of rollers, mm 185
5. Screening surface, m2 2
6. Pneumatic grain transportation(//tractor-service.com)
7. Air consumption, m3/h 500

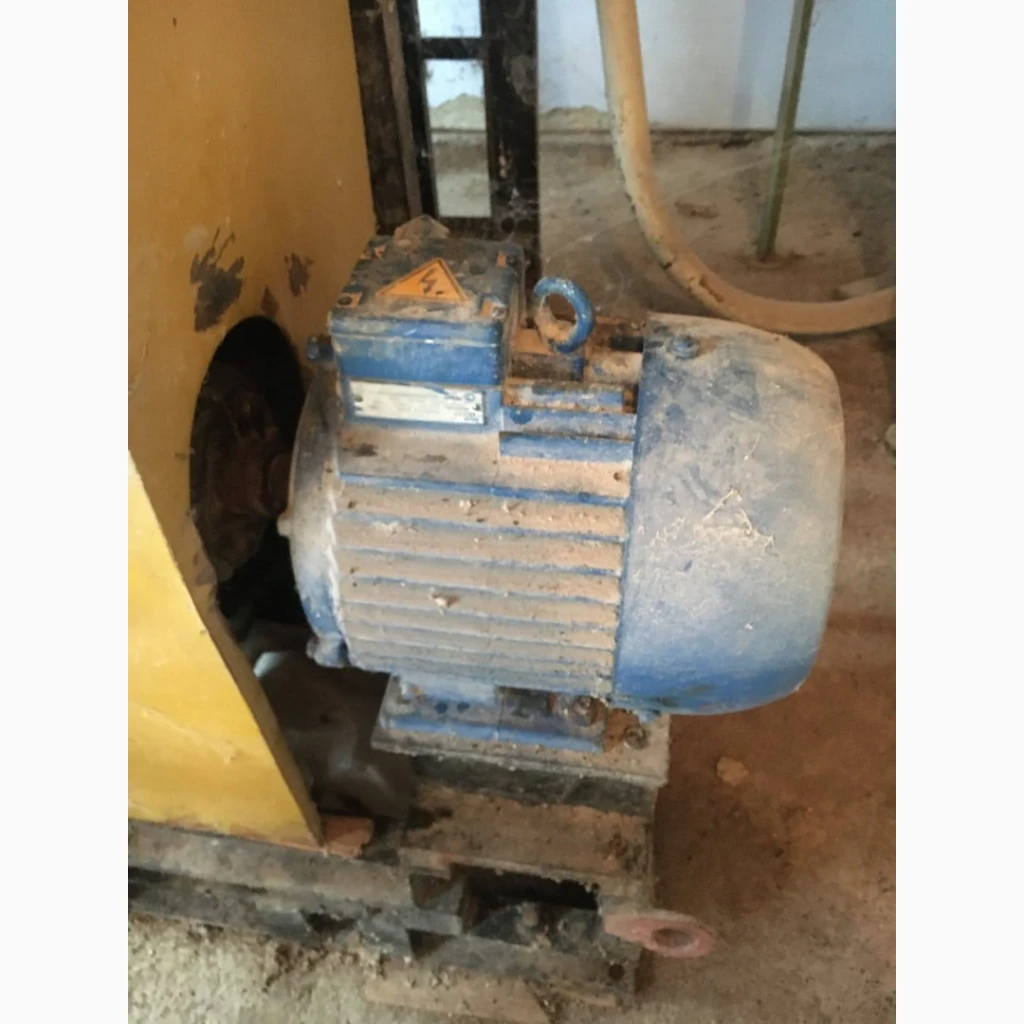

8. The drive is individual:
- number of electric motors, pcs. 3
- total power of installed electric motors, kW 8.45
9. Power supply voltage of the electrical network, V 380 ± 38
10. Service personnel, person. 1
11. Overall dimensions in the assembled state, mm, no more than:
- length 3 200
- width 1,600
- height 3,000
12. Weight of the mill, kg, no more than 1,500.

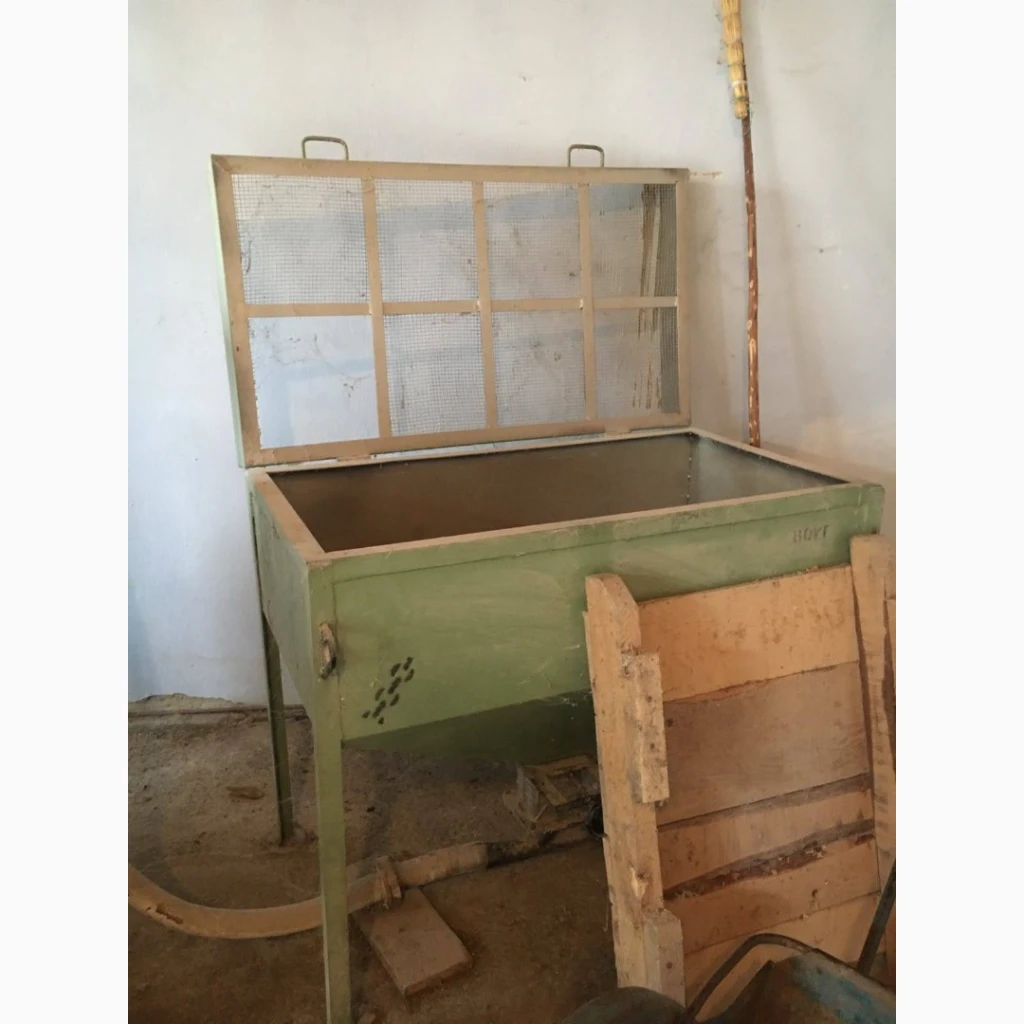

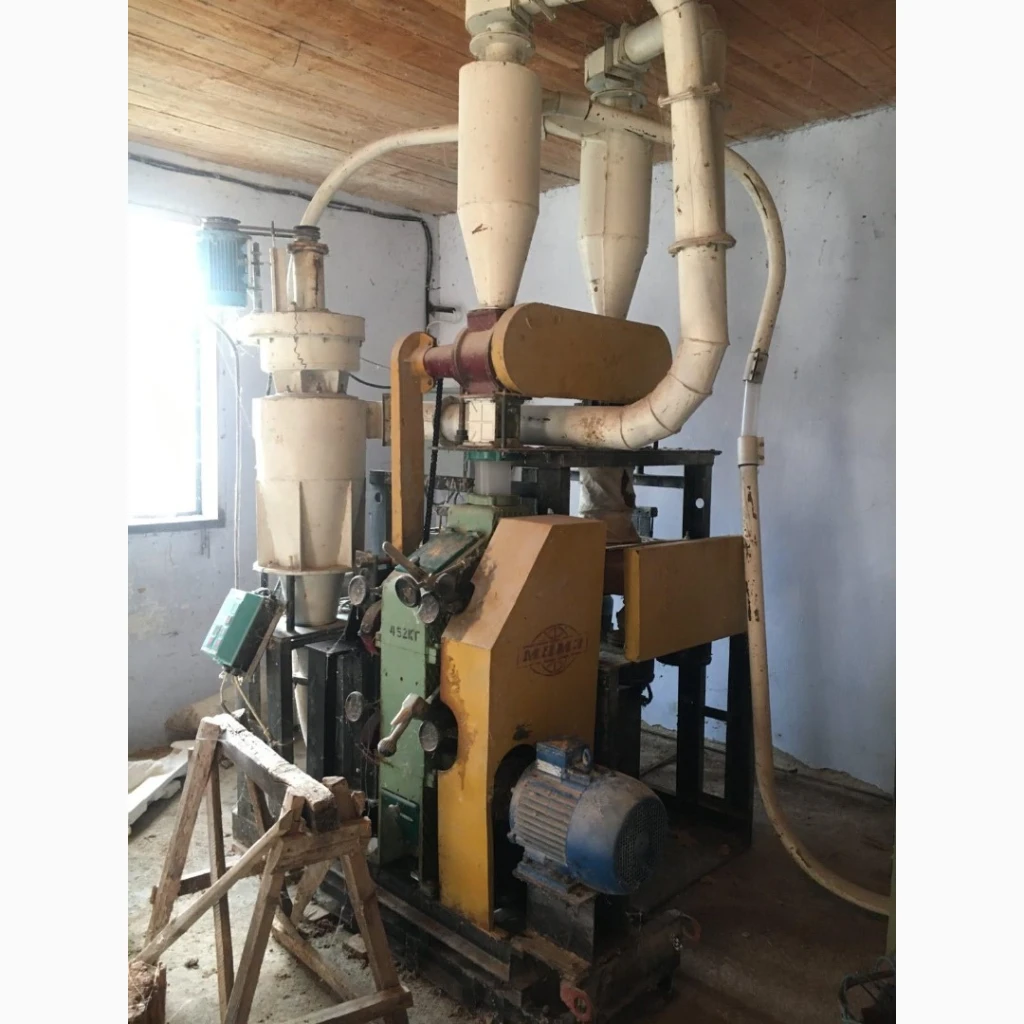

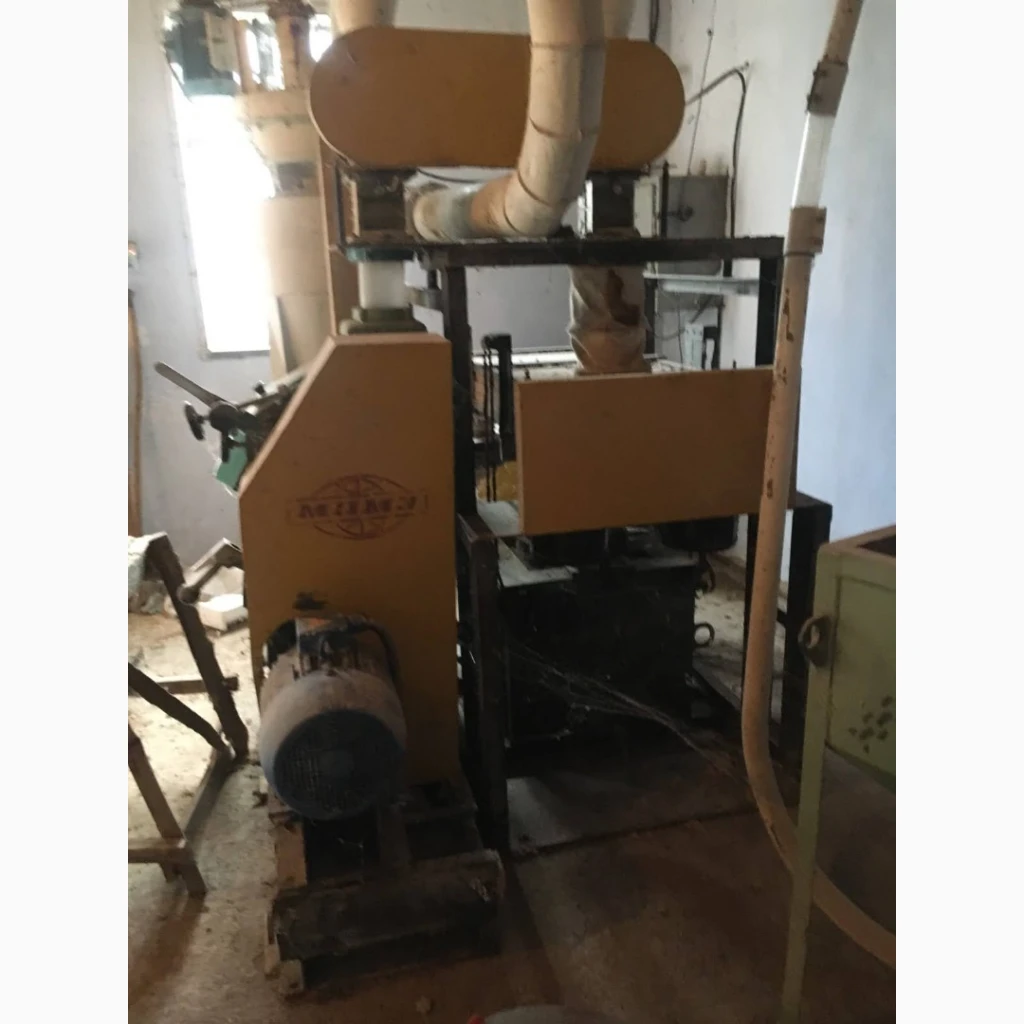

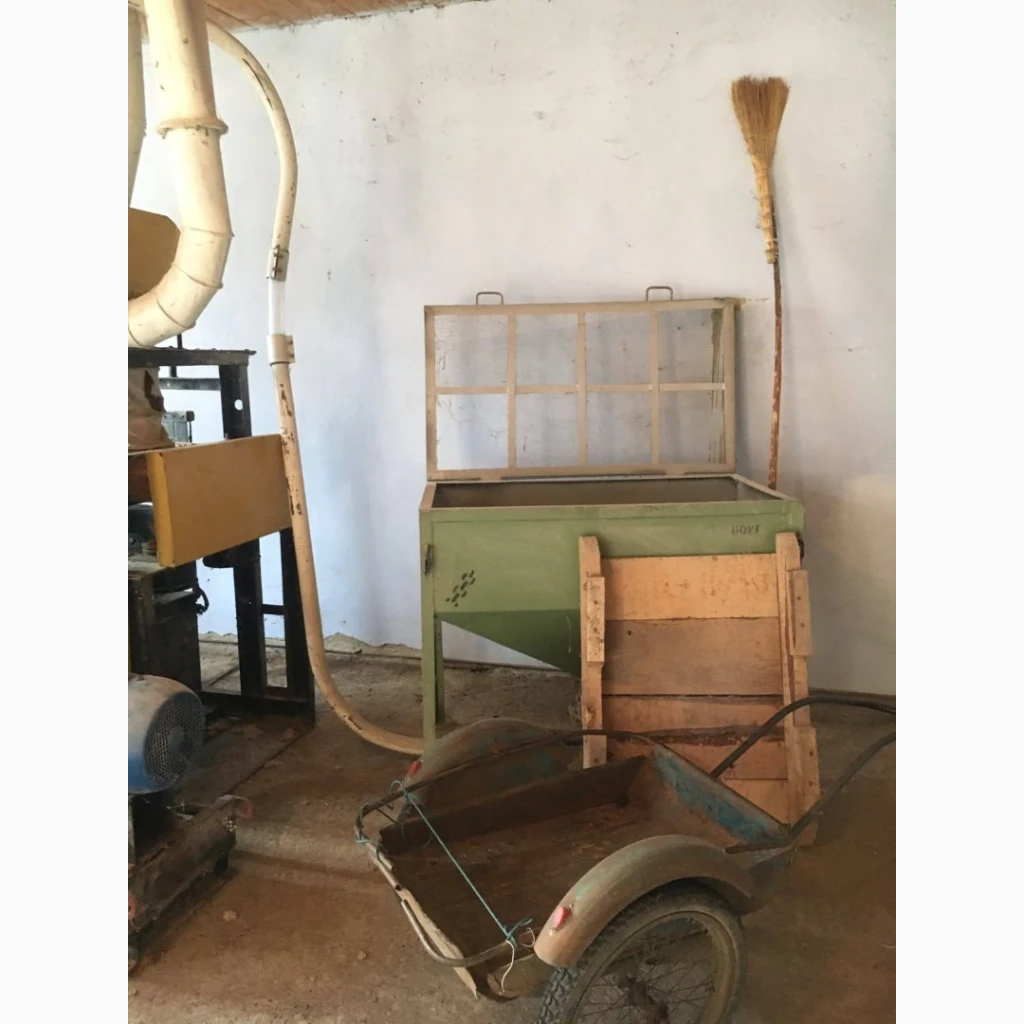

Transportation of grain and grinding products is carried out using a pneumatic system, which includes a fan, two unloaders, a cyclone, air ducts and product ducts with pneumatic receivers. Dried and cleaned grain of tooth-shaped or semi-tooth-shaped corn is loaded into the hopper and fed to the receiving roller machine. Grinding products from the roller machine are sent to the grain screening machine through product lines, which separates the corn grinding products into four fractions. 3 electric motors with a total power of 8.45 kW were installed to drive the mill. The mill is controlled from the control panel. Individual thermal protection of all electric motors is provided at the mill. If necessary, the mill can be stopped completely, for which an emergency stop button is installed.
The mill is in working order.
